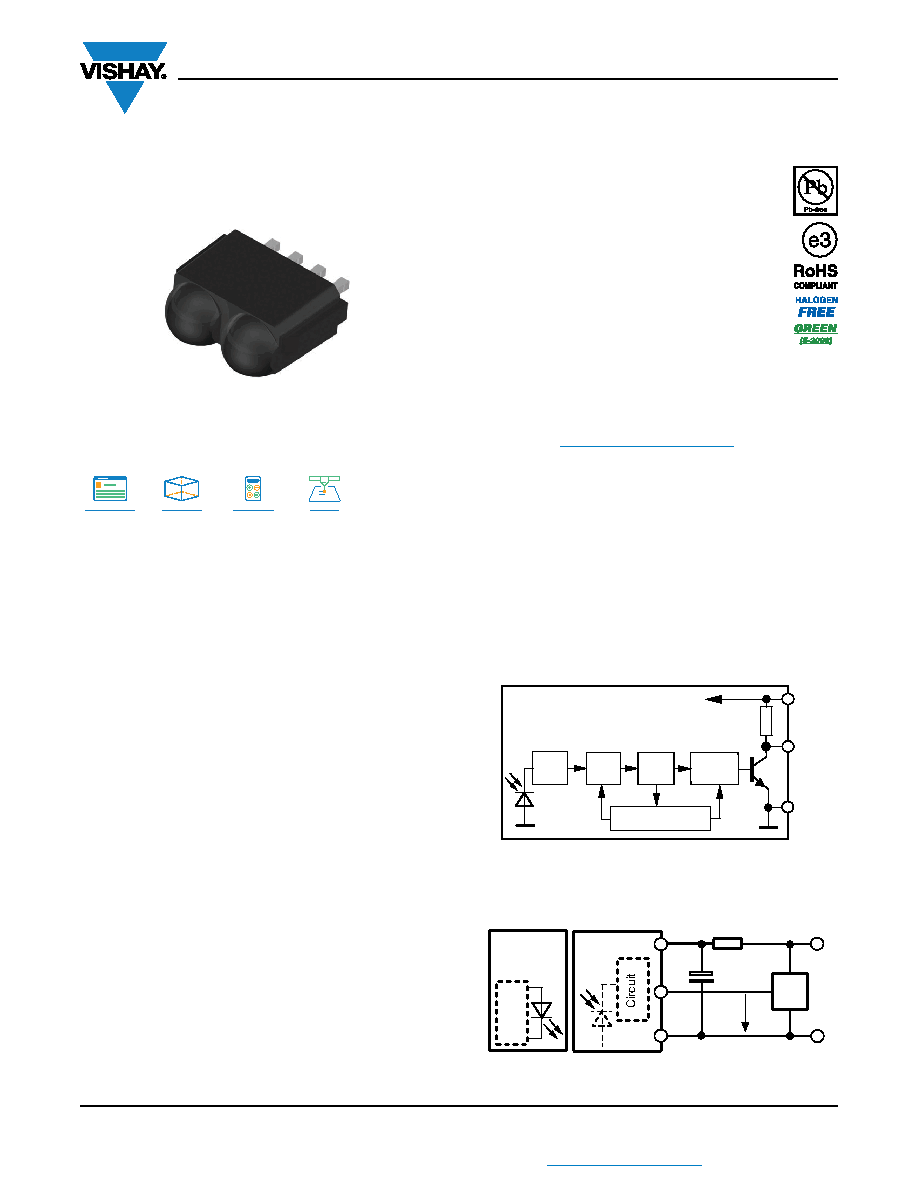

TSOP593..TR1, TSOP595..TR1

www.vishay.com

Vishay Semiconductors

Rev. 1.6, 14-Apr-2021

1

Document Number: 82790

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

IR Receiver Modules for Remote Control Systems

LINKS TO ADDITIONAL RESOURCES

DESCRIPTION

The TSOP59...TR1 series are miniaturized receiver modules

for infrared remote control systems. Two PIN diodes and a

preamplifier are assembled on a leadframe, the epoxy

package contains an IR filter. The demodulated output

signal can be directly connected to digital circuitry for

decoding.

The TSOP593..TR1 series devices are optimized to

suppress almost all spurious pulses from Wi-Fi and energy

saving lamps (CFLs). They may also suppress some data

signals if continuously transmitted.

The TSOP595..TR1 series contains a very robust AGC5.

This series should only be used for critically noisy

environments. Please check compatibility with your codes.

These components have not been qualified according to

automotive specifications.

FEATURES

• Improved immunity against HF and RF noise

• Low supply current

• Photo detector and preamplifier in one package

• Internal filter for PCM frequency

• Supply voltage: 2.5 V to 5.5 V

• Improved immunity against ambient light

• Two lenses for high sensitivity

• Insensitive to supply voltage ripple and noise

• Ultra low 2.6 mm profile

• Winged for mounting within PCB cutout

• Compatible with reflow soldering

• Material categorization: for definitions of compliance

please see www.vishay.com/doc?99912

MECHANICAL DATA

Pinning:

1, 4 = GND, 2 = VS, 3 = OUT

ORDERING CODE

Taping:

TSOP59...TR1 - top view taped, 2000 pcs/reel

BLOCK DIAGRAM

APPLICATION CIRCUIT

1

4

3

2

1

4

3

2

22964

Product Page

333

DDD3 D

3D Models

Calculators

Marking

30 k

Ω

VS

OU T

Demo-

GND

pass

AGC

Input

PIN

Band

dulator

Control circuit

2

3

1, 4

20445-1

C1

IR receiver

GND

μC

R1

+ VS

GND

Transmitter

with

TSALxxxx

VS

VO

17170-11

OUT

R

1 and C1 recommended to reduce supply ripple for VS < 2.8 V
