TSOP131.., TSOP133.., TSOP135..

www.vishay.com

Vishay Semiconductors

Datasheet Values Refer to PCN-OPT-1225-2022-REV-0

Rev. 1.8, 17-Jan-2023

2

Document Number: 82805

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

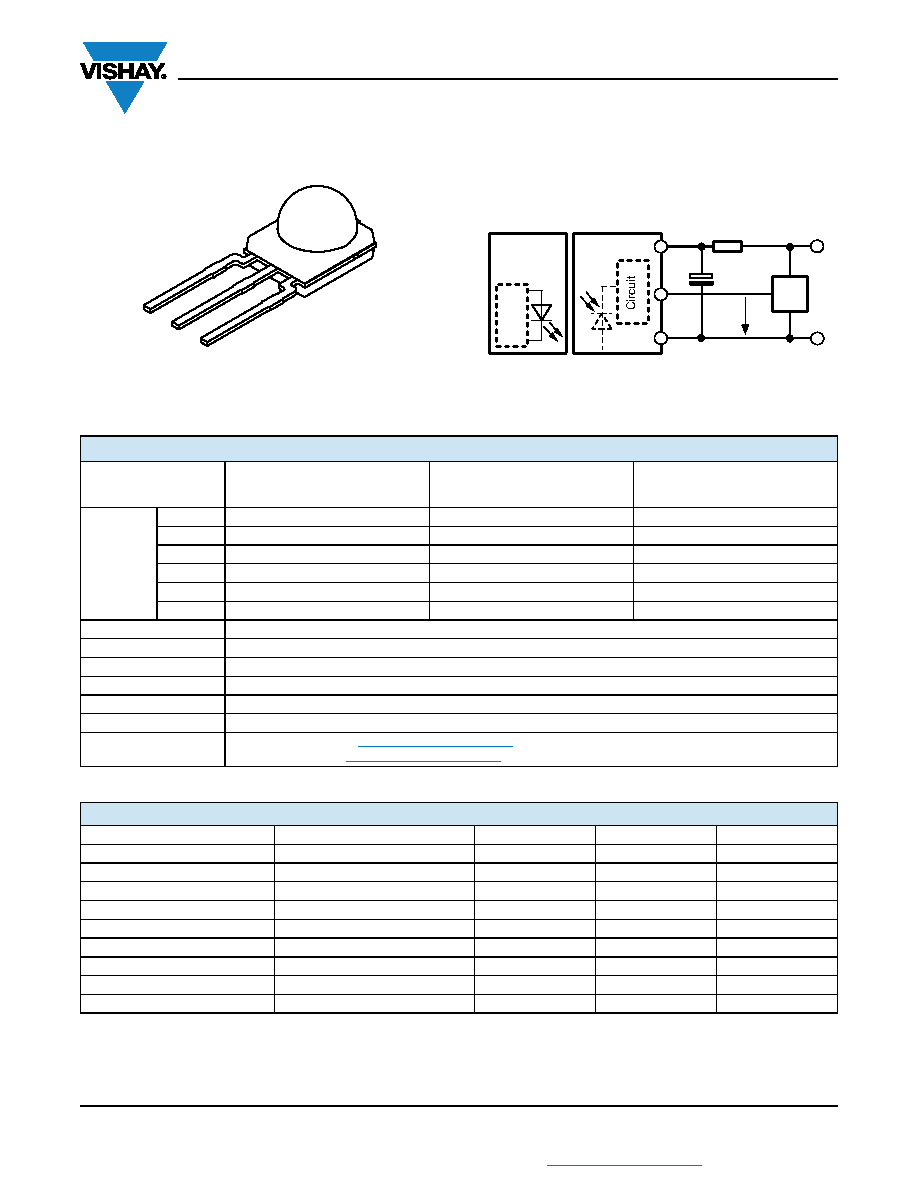

MECHANICAL DATA

Pinning for TSOP13...:

1 = OUT, 2 = GND, 3 = VS

ORDERING CODE

TSOP13... - 1800 pieces in bags

APPLICATION CIRCUIT

Note

• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only

and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification

is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability

1

2

3

23197

C1

IR receiver

GND

µC

R1

+ VS

GND

Transmitter

with

TSALxxxx

VS

VO

17170-14

OUT

R

1 and C1 recommended in case there are strong ripple or

spikes on the supply line.

PARTS TABLE

AGC

BASIC NOISE SUPPRESSION

(AGC1)

ENHANCED NOISE

SUPPRESSION

(AGC3)

MAXIMIZED NOISE

SUPPRESSION (AGC5)

Carrier

frequency

30 kHz

TSOP13130

TSOP13330

TSOP13530

33 kHz

TSOP13133

TSOP13333

TSOP13533

36 kHz

TSOP13136

TSOP13336 (1)(5)

TSOP13536

38 kHz

TSOP13138

TSOP13338 (2)(4)

TSOP13538

40 kHz

TSOP13140

TSOP13340

TSOP13540

56 kHz

TSOP13156

TSOP13356 (3)

TSOP13556

Package

Minimold

Pinning

1 = OUT, 2 = GND, 3 = VS

Dimensions (mm)

5.4 W x 6.35 H x 4.9 D

Mounting

Leaded

Application

Remote control

Best choice for

(1) RCMM (2) RECS-80 Code (3) r-map (4) XMP (5 MCIR

Special options

• Narrow optical filter: www.vishay.com/doc?81590

• Wide optical filter: www.vishay.com/doc?82726

ABSOLUTE MAXIMUM RATINGS

PARAMETER

TEST CONDITION

SYMBOL

VALUE

UNIT

Supply voltage

VS

-0.3 to +6

V

Supply current

IS

3mA

Output voltage

VO

-0.3 to (VS + 0.3)

V

Output current

IO

5mA

Junction temperature

Tj

100

°C

Storage temperature range

Tstg

-25 to +85

°C

Operating temperature range

Tamb

-25 to +85

°C

Power consumption

Tamb

≤ 85 °C

Ptot

10

mW

Soldering temperature

t

≤ 10 s, 1 mm from case

Tsd

260

°C
