TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 14 of 41

ADL6337-B

V50AMP1 = V50AMP2 = 5 V, TA = 25°C, input power = −25 dBm (−25 dBm per tone for two tones), DSA attenuation= 0 dB, RS = RL = 50 Ω,

TRM_AMP1_IP3_0 = TRM_AMP2_IP3_= 5, TRM_AMP1_IREF_0_0 = TRM_AMP1_IREF_1 = TRM_AMP1_IREF_2 = TRM_AMP1_IREF_3 =

12, TRM_AMP2_IREF_0_0 = TRM_AMP2_IREF_1 = TRM_AMP2_IREF_2 = TRM_AMP2_IREF_3 = 11, unless otherwise noted.

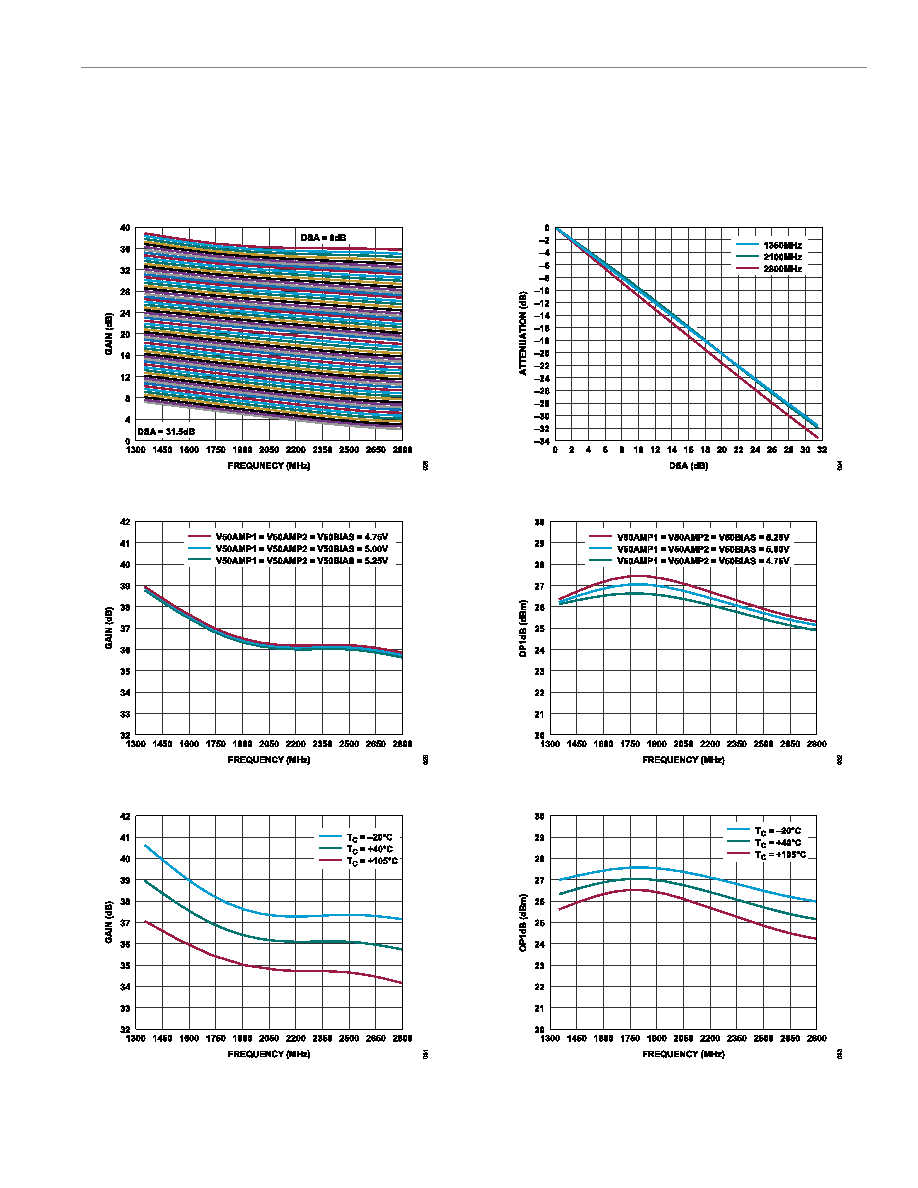

Figure 39. Gain vs. Frequency; 0.5 dB DSA Steps

Figure 40. Gain vs. Frequency for Various Supplies

Figure 41. Gain vs. Frequency for Various Temperatures

Figure 42. Attenuation vs. DSA at 1800 MHz, 2100 MHz, and 2700 MHz

Figure 43. OP1dB vs. Frequency for Various Supplies

Figure 44. OP1dB vs. Frequency for Various Temperatures
