KSZ9563R
DS00002419D-page 10
 2017-2018 Microchip Technology Inc.
3.0
PIN DESCRIPTIONS AND CONFIGURATION
3.1
Pin Assignments
The device pin diagram for the KSZ9563R can be seen in Figure 3-1. Table 3-1 provides a KSZ9563R pin assignment
table. Pin descriptions are provided in Section 3.2, "Pin Descriptions".

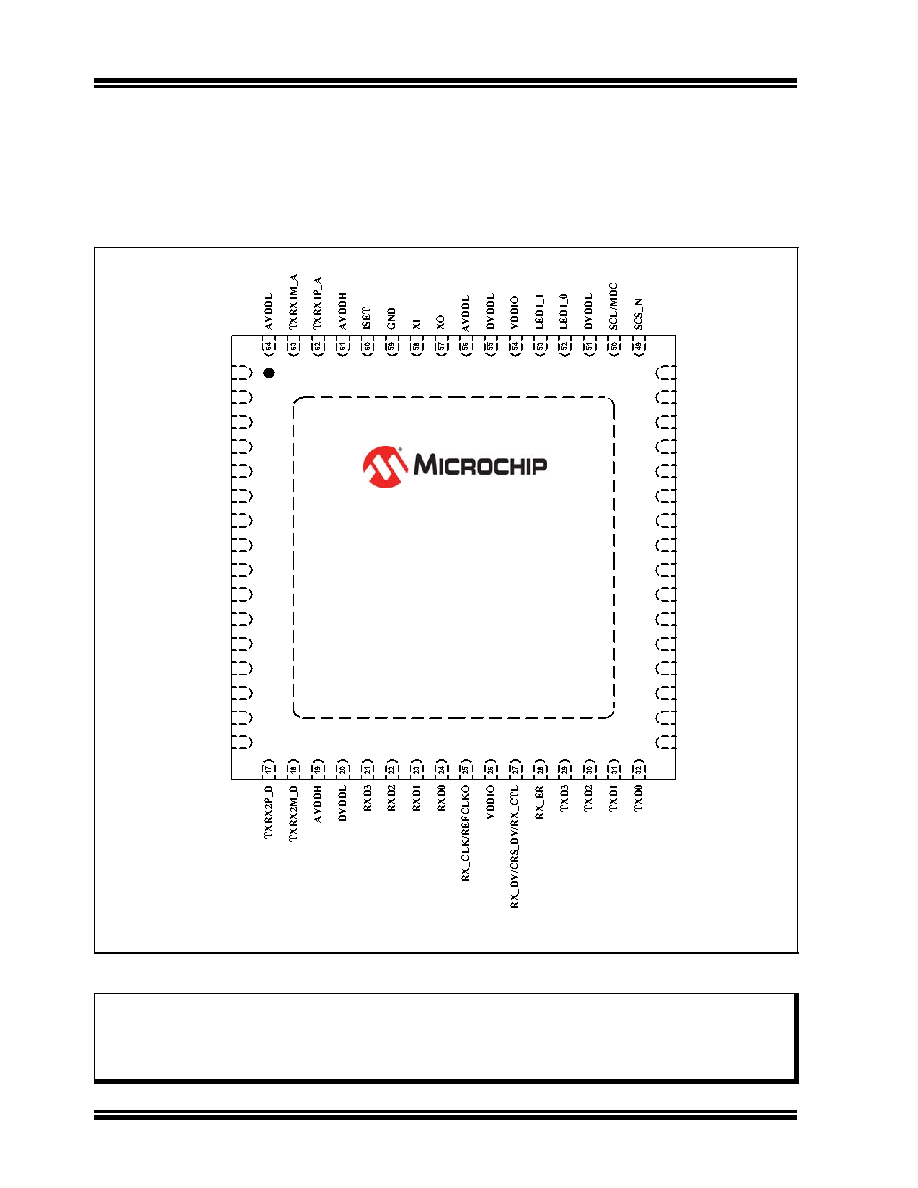

FIGURE 3-1:
PIN ASSIGNMENTS (TOP VIEW)
Note:
When an “_N” is used at the end of the signal name, it indicates that the signal is active low. For example,
RESET_N indicates that the reset signal is active low.
The buffer type for each signal is indicated in the “Buffer Type” column of the pin description tables in Sec-
tion 3.2, "Pin Descriptions". A description of the buffer types is provided in Table 1-2, "Buffer Types".
Note: Exposed pad (VSS) on bottom of package must be connected to ground with a via field .
(Connect exposed pad to ground with a via field)
VSS
KSZ9563R
64-VQFN
(Top View )
5
6
7
8
9
10
11
12
44
43
42
41
40
39
38
37
AVDDH
TXRX1M_D
TXRX2P_A
TXRX2M_A
AVDDL
TXRX2P_B
TXRX2M_B
TXRX2P_C
RESET_N
INTRP_N
LED2_1
VDDIO
TX_ER
TX_EN/TX_CTL
LED2_0
PME_N
3
4
13
14
36
35
46
45
TXRX1P_D
AVDDL
TXRX1M_C
TXRX1P_C
DVDDL
GPIO_2
GPIO_1
DVDDL
1
2
TXRX1M_B
TXRX1P_B
16
15
AVDDL
TXRX2M_C
34
33
TX_CLK/REFCLKI
DVDDL
48
SDO
47
SDI/SDA/MDIO
