3 / 8 page

137

Amphenol® RF:

800-627-7100

UHF

UHF Specifications

Electrical

Impedance

Non-constant

Frequency range

DC - 300 Hz (usable to 500 Hz)

Voltage rating (at sea level)

≤ 500 V peak (depending on cable)

Insulation resistance

5,000 MΩ minimum

Dielectric withstanding voltage

1,000 Vrms (at sea level)

Mechanical

Mating

5/8-24 Threaded coupling

Center conductor cable affixment

Braid solder. set screw, clamp and crimp

Durability (matings)

500 cycles minimum

Environmental

Temperature range

-65°C to +165°C

- copolymer of styrene:

-55°C to +85°C

Thermal shock

MIL-STD-202, method 107, cond. A

Corrosion

MIL-STD-202, method 101, cond. B

Vibration

MIL-STD-202, method 204, cond. A

Mechanical shock

MIL-STD-202, method 213, cond. 1

Material

Body and outer contacts

Bodies: brass or zinc alloy

Male contact

Brass, silver plated

Female contact

Beryllium copper, silver plated

Crimp ferrule

Copper or brass

Other metal parts

Brass, nickel plated

Insulator

PTFE, copolymer of styrene, or mica-filled phenolic

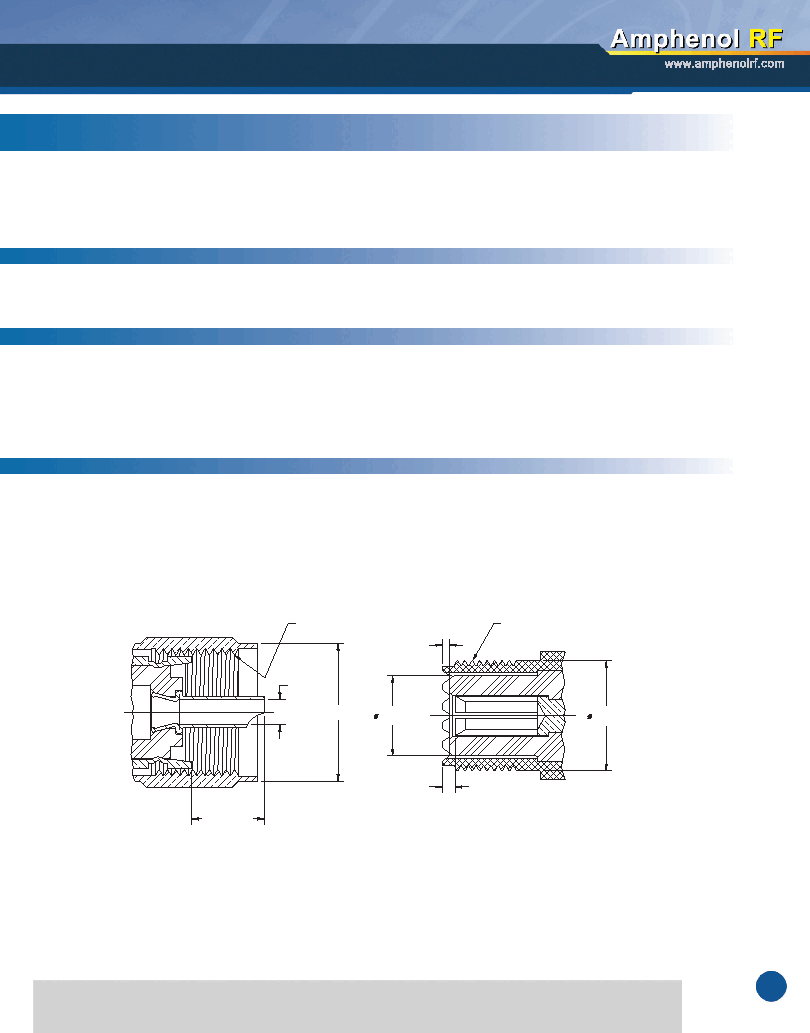

Plug

Jack

.695 REF

.125 REF

.390/.340

.625-24NEF-2B

.453 REF

.620 REF

.085 MAX

.057 MAX

.625-24NEF-2A

UHF
