S8FS-G

15

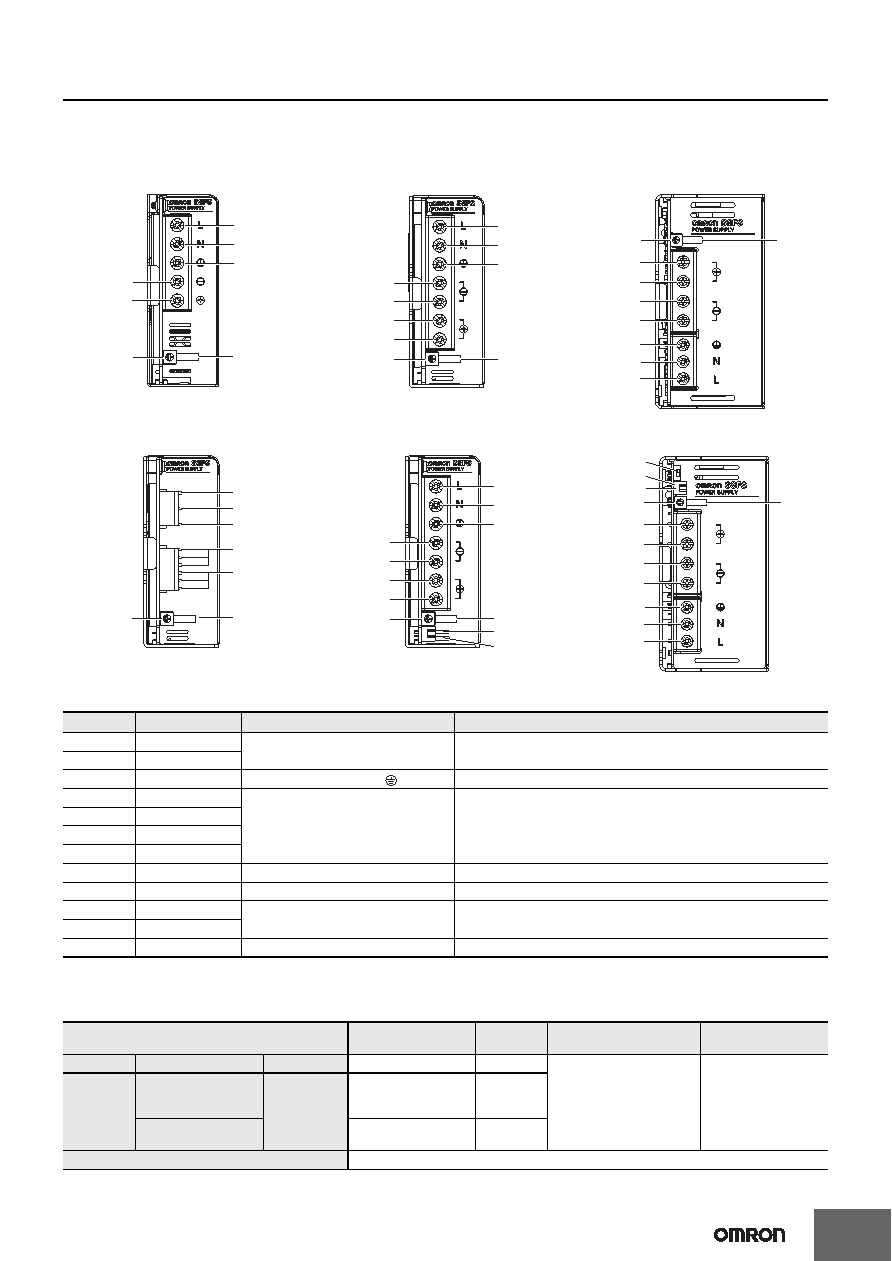

Construction and Nomenclature

Nomenclature

*1. The fuse is located on the (L) side. It is not user-replaceable. For a DC input, connect the positive voltage to the L terminal.

*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.

Input and Output Connectors (Connector type)

Note: The female connectors that are required for wiring are not provided with the Power Supply.

S8FS-G015

@@@

S8FS-G030

@@@

S8FS-G050

@@@

S8FS-G100

@@@

S8FS-G150

@@@

S8FS-G300

@@@

S8FS-G600

@@@

S8FS-G

@@@24CE

S8FS-G

@@@24C-R

S8FS-G

@@@24C-WR

No.

Terminal name

Name

Function

(1)

L

Input terminals

Connect the input lines to these terminals.

*1

(2)

N

(3)

PE

Protective Earth terminal ()

Connect the ground line to this terminal.

*2

(4)

+V1

DC output terminals

Connect the load lines to these terminals.

(5)

+V2

(6)

-V1

(7)

-V2

(8)

---

Output indicator (DC ON: green)

Lights while a direct current (DC) output is ON.

(9)

---

Output voltage adjuster (V.ADJ)

Use to adjust the voltage.

(10)

+RC

Remote control terminals

Wire for remote control.

(11)

-RC

(12)

---

Parallel operation switch

To operate in parallel, set the switch to the “PARALLEL” side.

Applicable

connector

Housing

Terminals

Applicable

crimp tool

Input side

All models

CN110

B3P5-VH (LF) (SN)

VHR-5N

Reel: SVH-21T-P1.1

Bulk: BVH-21T-P1.1

YC-160R

Output side

S8FS-G01524

@E

S8FS-G03024

@E

S8FS-G05024

@E

CN510

B4P-VH (LF) (SN)

VHR-4N

S8FS-G10024

@E

S8FS-G15024

@E

B6P-VH (LF) (SN)

VHR-6N

Manufacturer

J.S.T. Mfg. Co., Ltd.

(1)

(2)

(3)

(8)

(9)

(4)

(6)

(1)

(2)

(3)

(8)

(7)

(5)

(9)

(4)

(6)

(1)

(2)

(3)

(8)

(7)

(5)

(9)

(4)

(6)

(9)

(6)

(4)

(8)

(1)

(2)

(3)

(1)

(2)

(3)

(10)

(11)

(8)

(7)

(4)

(5)

(9)

(6)

(8)

(1)

(2)

(3)

(9)

(10)

(11)

(12)

(7)

(4)

(5)

(6)
