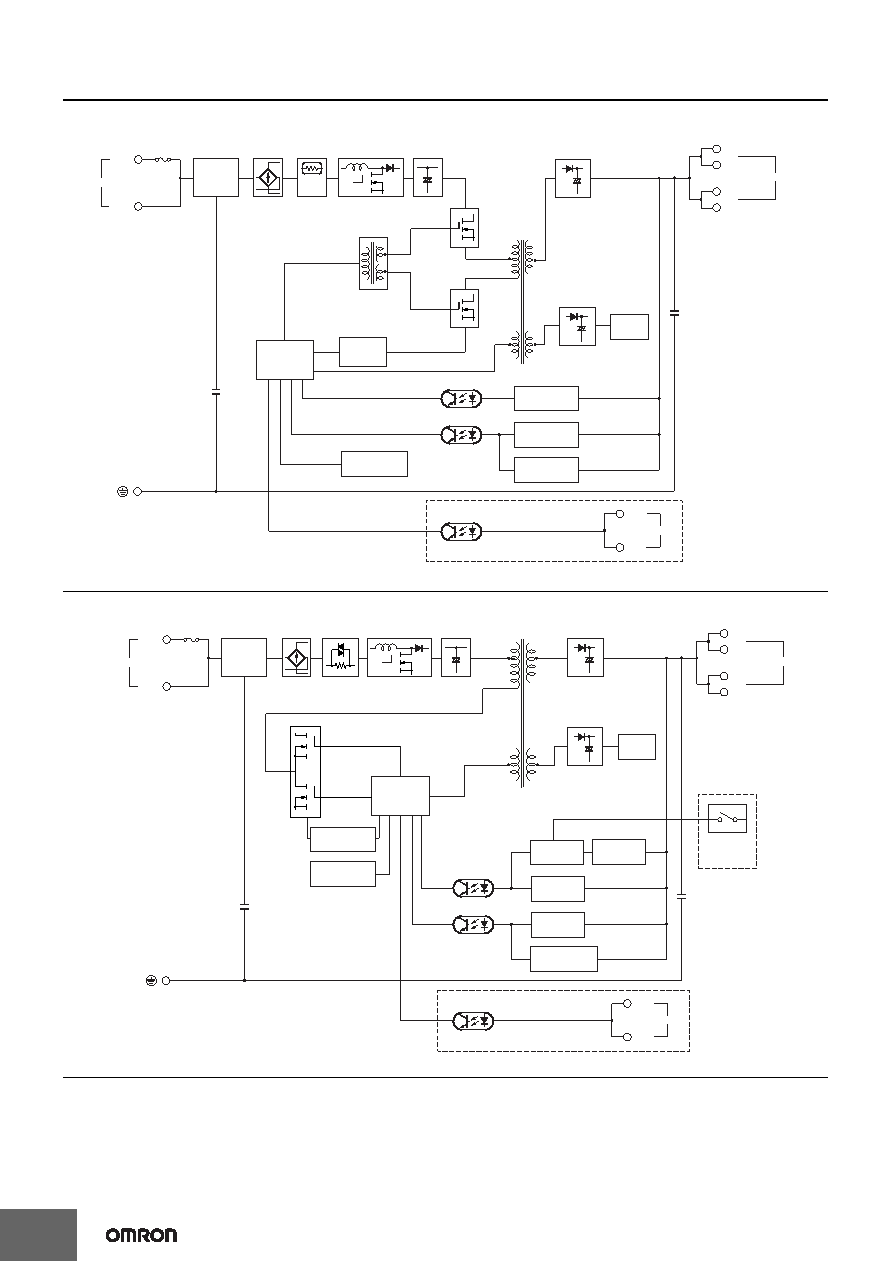

S8FS-G
14
Voltage
detection circuit
Photocoupler
Over voltage
detection circuit
Overheat
detection circuit
Overheat
detection circuit
Over current
detection
circuit
Control
circuit
FAN
-V
-V
DC OUTPUT
+V
+V
+RC
-RC
REMOTE CONTROL
Only Remote control
Rectifier
smoothing circuit
Harmonic current
suppression
(power factor
improvement)
Rectifier
smoothing circuit
Noise
filter
Fuse
Inrush
current
protection
AC(L)
INPUT
AC(N)
Rectifier
Smoothing
circuit
Drive circuit
250 VAC
12 A
HBC
S8FS-G300
@@@ (300 W)
S8FS-G600
@@@ (600 W)
Voltage
detection circuit
Photocoupler
Over voltage
detection circuit
Over current
detection circuit
Current
detection circuit
Overheat
detection circuit
FAN
-V
-V
DC OUTPUT
+V
+V
+RC
-RC
REMOTE CONTROL
Only Remote control
ONLY FOR
PARALLEL
OPERATION
TYPE
Rectifier
smoothing circuit
Harmonic current
suppression
(power factor
improvement)
Rectifier
smoothing circuit
Parallel
operation
selector
Control
circuit
Over current
detection circuit
Overheat
detection circuit
Noise
filter
Fuse
Inrush
current
protection
AC(L)
INPUT
AC(L)
Rectifier
Smoothing
circuit
250 VAC
20 A
HBC
