Ordering Example: RSJ-J-R, round face, round hole panel jack for use

with Type J standard connector.

* Also available in male configurations

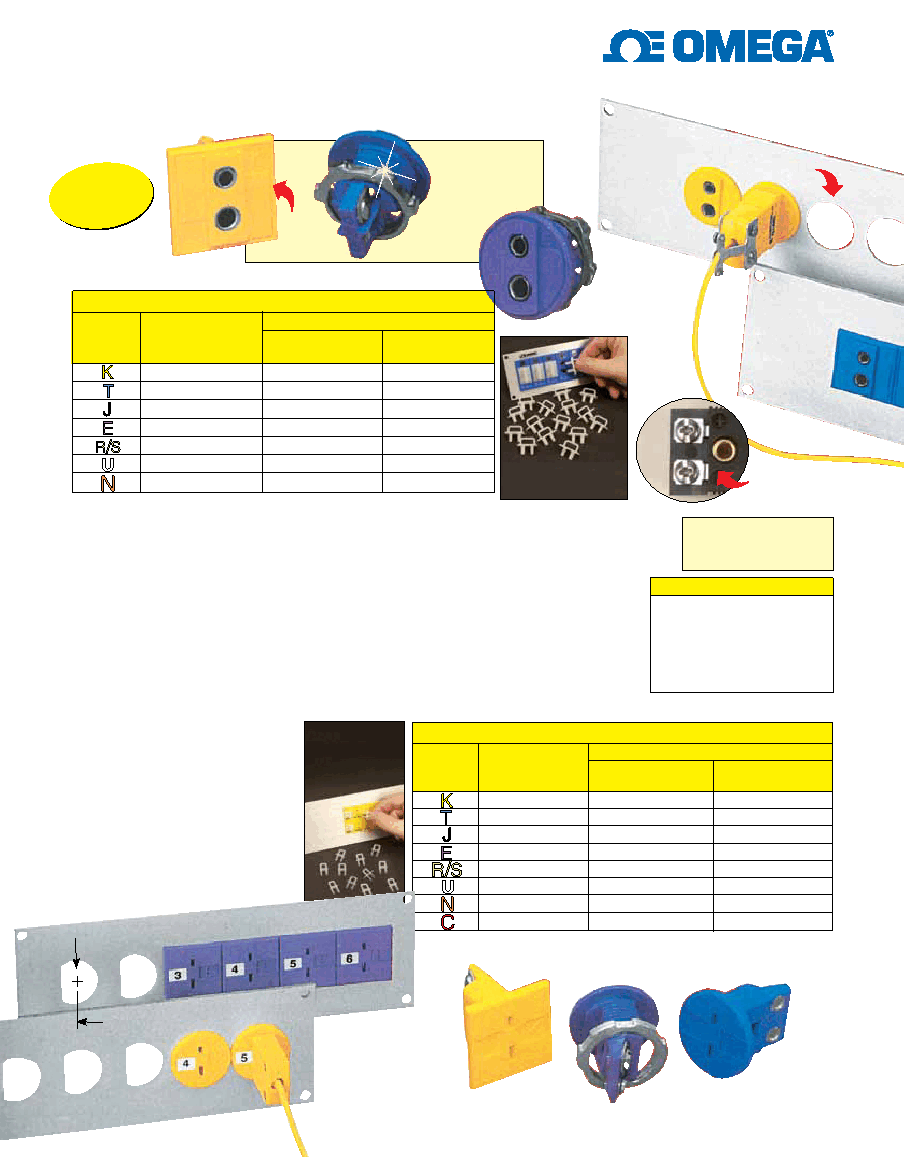

Round Hole Panel Jacks

Type RSJ Standard Size

Type RMJ Miniature Size

U

Standard Accepts All

Industry Standard Size

Connectors

U

Miniature Accepts All

Industry Miniature Size

Connectors

U

Mounts in Round or “D”

Punch Holes

U

Square or Round Bezel

to Match Your Panel

Components

U

Polarity Keyed

U

Color-Coded

U

No Filing Required

U

Glass-Filled Nylon

Rated From -29 to 180°C

(-20 to 356°F)

Easy Installation

No special tooling is required for installation. Just

drill or punch a round hole in your panel and tighten

the supplied nut. Ideal for single- circuit applications

where the connector must blend with existing

instrumentation. Thermocouple circuits can be added

to existing panels with only minimal interruption of

operations. A choice of either square or round face is

available to match the design lines of your installation.

Thermocouple grade alloys used to form the contacts

preserve the accuracy of the circuit even in changing

ambient temperatures.

Rear View

20.6 mm (0.81")

Square Bezel

16.0 mm

(0.63")

Dia

Cutout

20.6 mm

(0.81")

Dia Bezel

Combination

Phillips/

Slot Screw

Free Mounting

Nut Included

28.7 mm (1.13")

Dia. Bezel

Rear

View

22.4 mm (0.88")

Dia. Cutout

Extra standard

size mounting

nuts, MH-RSJ-5,

pkg of 5

28.7 mm

(1.13")

Square

Bezel

Ordering Example: RMJ-K-S, square face, round hole panel jack for

use with Type K miniature connector.

Nut Included

5

⁄8-24 NEF THD.

Accepts Standard Size Connectors

Accepts Miniature Size Connectors

G-43

Front Mount

Hardware

Included

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

U

W

U

1

⁄2-14

NPSL THD.

Optional supply

of miniature size

dust caps

MPJ-CAP,

pkg of 12

We make running changes

when technical advances allow.

Check at time of ordering

for additional features.

1-10....................................

Net

11-49...................................

5%

50-99..................................

10%

100-999..............................

15%

1000-4999...........................

20%

5000 and over.....................

25%

Discount Schedule

Optional supply of

dust caps, SPJ-CAP,

pkg of 12

Note: Minor discoloration of connector

may occur between 150°C (302°F) and

180°C (356°F). Electrical properties are

not affected.

To Order

Model Number

Alloy

Square

Round

Code

Color

Face

Face

Yellow

RSJ-K-S

RSJ-K-R

Blue

RSJ-T-S

RSJ-T-R

Black

RSJ-J-S

RSJ-J-R

Purple

RSJ-E-S

RSJ-E-R

Green

RSJ-R/S-S

RSJ-R/S-R

White

RSJ-U-S

RSJ-U-R

Orange

RSJ-N-S

RSJ-N-R

To Order

Model Number

Alloy

Square

Round

Code

Color

Face

Face

Yellow

RMJ-K-S

RMJ-K-R

Blue

RMJ-T-S

RMJ-T-R

Black

RMJ-J-S

RMJ-J-R

Purple

RMJ-E-S

RMJ-E-R

Green

RMJ-R/S-S

RMJ-R/S-R

White

RMJ-U-S

RMJ-U-R

Orange

RMJ-N-S

RMJ-N-R

Red

RMJ-C-S

RMJ-C-R

Extra miniature

size mounting

nuts, MH-RMJ-5

pkg of 5

16.0 mm (0.63") Dia. Cutout

4.1 mm (0.16")
