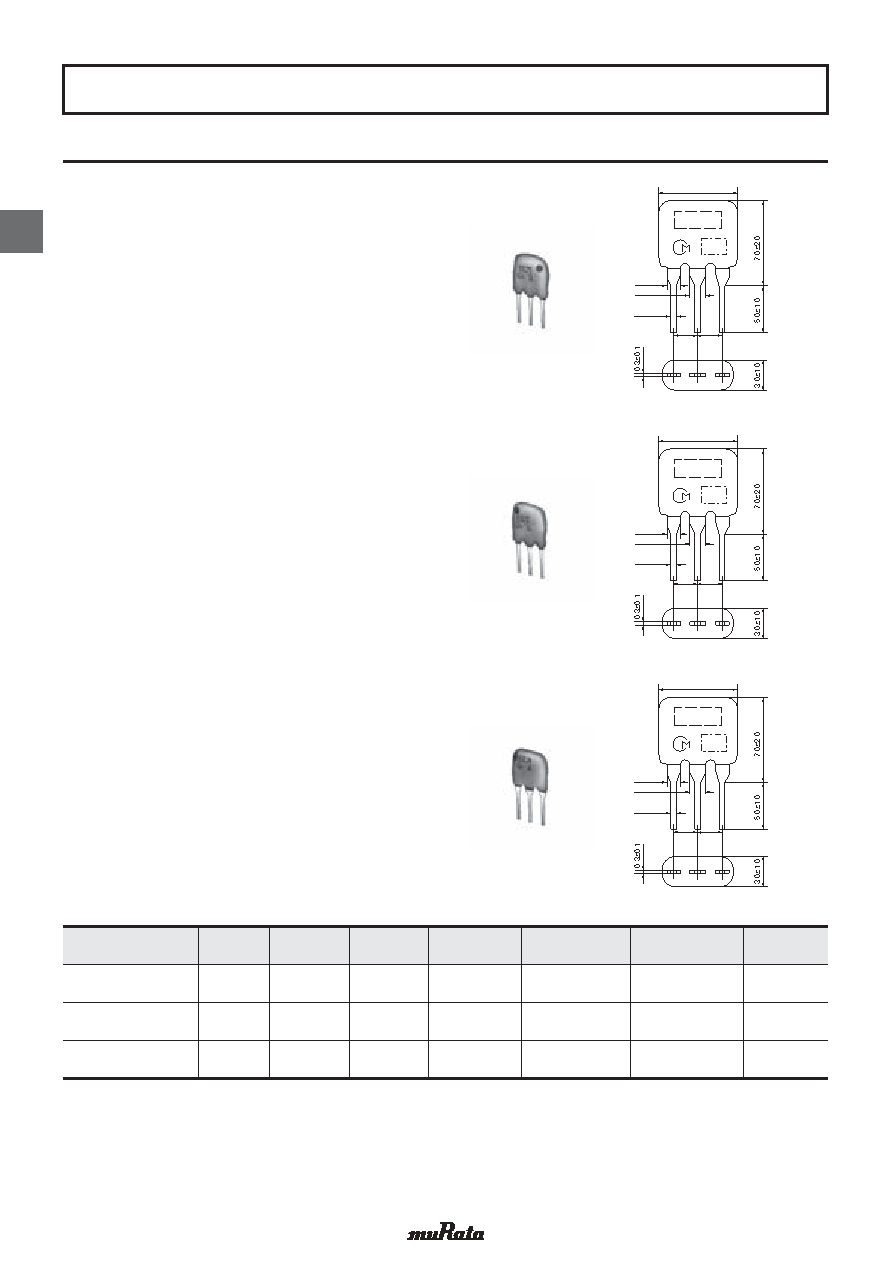

Standard Lead Type SFELF Series

SFELF10M7 series for FM-receivers are monolithic type

ceramic ﬁlters that use the thickness expander mode

of the piezoelectric ceramic.

As part of the environment protection program, the solder

for terminal plating and terminal-element connection

inside of the ceramic ﬁlter contain no lead (Pb).

c Features

1. These miniature ﬁlters have high mechanical

strength.

2. Low loss, favorable waveform symmetry, and high

selectivity

3. Various bandwidths are available for applications

in wide to narrow bands.

4. Small dispersion and stable characteristics

5. Change in center frequency is typically within

±30ppm/°C at -20 to +80°C.

6. High reliability

(1)

(2)

(3)

7.0±2.0

2.5±0.2

0.5±0.1

1.7±0.1

1.38±0.2

2.5±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELF10M7HA00-B0

(1)

(2)

(3)

7.0±2.0

2.5±0.2

0.5±0.1

1.7±0.1

1.38±0.2

2.5±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELF10M7GA00-B0

(1)

(2)

(3)

7.0±2.0

2.5±0.2

0.5±0.1

1.7±0.1

1.38±0.2

2.5±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELF10M7FA00-B0

Part Number

Center

Frequency

(fo) (MHz)

3dB

Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Spurious

Attenuation

(1) (dB)

Spurious

Attenuation

(2) (dB)

Input/Output

Impedance

(ohm)

SFELF10M7HA00-B0

10.700

±30kHz

180 ±40kHz

520 max.

7.0max.

40 min.

[within 9MHz to fo]

40 min.

[within fo to 12MHz]

330

SFELF10M7GA00-B0

10.700

±30kHz

230 ±50kHz

570 max.

4.0±2.0dB

40 min.

[within 9MHz to fo]

40 min.

[within fo to 12MHz]

330

SFELF10M7FA00-B0

10.700

±30kHz

280 ±50kHz

650 max.

4.0±2.0dB

30 min.

[within 9MHz to fo]

30 min.

[within fo to 12MHz]

330

Area of Attenuation: [within 20dB]

Area of Insertion Loss: at minimum loss point

Center frequency (fo) deﬁned by the center of 3dB bandwidth.

For safety purposes, connect the output of ﬁlters to the IF ampliﬁer through a D.C. blocking capacitor. Avoid applying a direct current to the output of ceramic ﬁlters.

The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.

!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

CERAFIL

r (CERAFILr 10.7MHz) for Audio/Visual Equipment
