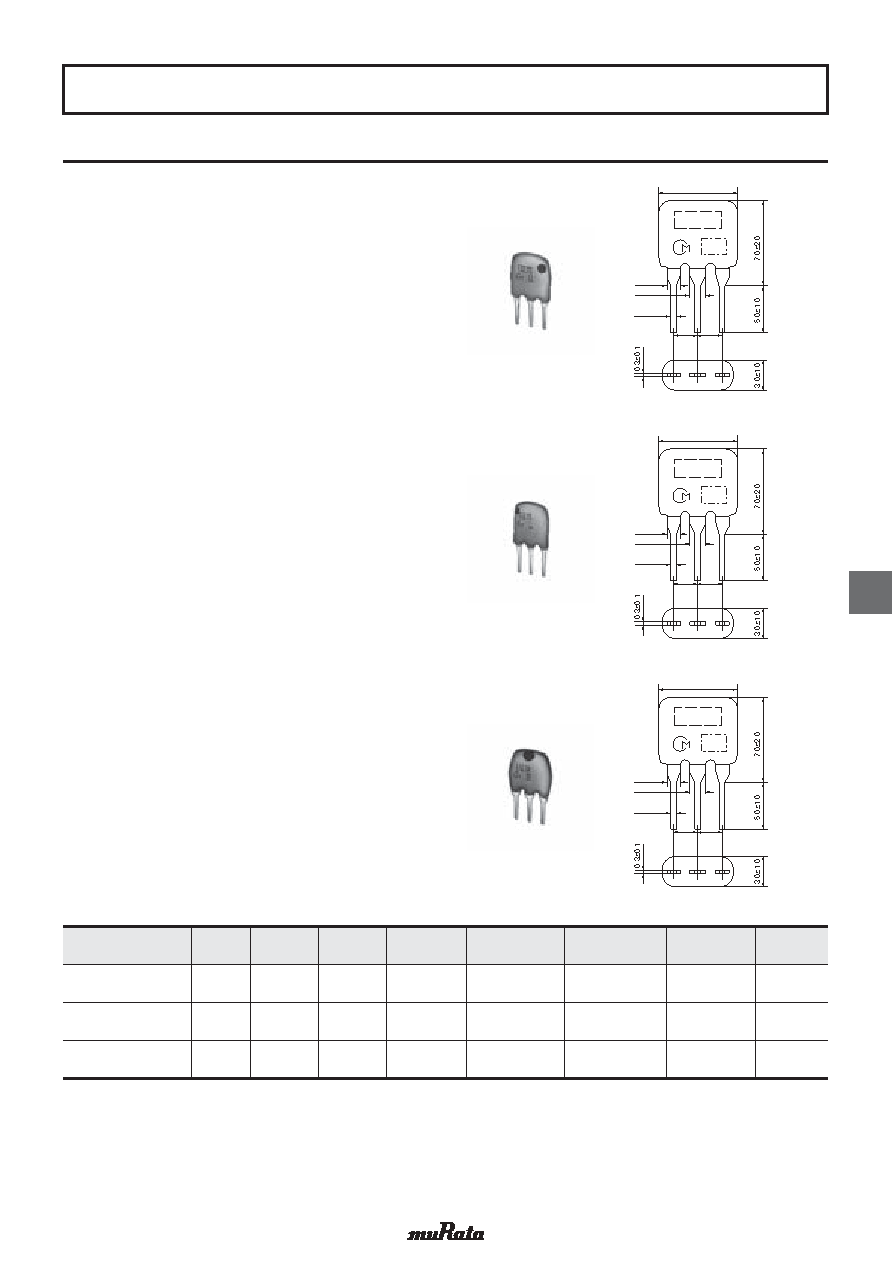

For FM-IF Tuners SFELF Series

SFELF10M7 series for FM-receivers are monolithic type

ceramic ﬁlters that use the thickness expander mode

of the piezoelectric ceramic.

As part of the environment protection program, the solder

for terminal plating and terminal-element connection

inside of the ceramic ﬁlter contain no lead (Pb).

c Features

1. Little dispersion of amplitude characteristics and

phase characteristics (G. D. T. characteristics)

2. The SFELF_G series is based on SFELF_FA00/GA00/

HA00, and it obtains high selectivity with low loss.

There is little dispersion of amplitude and GDT

characteristics, and low distortion rate can be

obtained.

3. The ﬂatness of GDT is inspected for all products.

(1)

(2)

(3)

7.0±2.0

2.5±0.2

0.5±0.1

1.7±0.1

1.38±0.2

2.5±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELF10M7HA0G-B0

(1)

(2)

(3)

7.0±2.0

2.5±0.2

0.5±0.1

1.7±0.1

1.38±0.2

2.5±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELF10M7GA0G-B0

(1)

(2)

(3)

7.0±2.0

2.5±0.2

0.5±0.1

1.7±0.1

1.38±0.2

2.5±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELF10M7FA0G-B0

Part Number

Center

Frequency

(fo) (MHz)

3dB

Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Spurious

Attenuation

(1) (dB)

Spurious

Attenuation

(2) (dB)

GDT Bandwidth

(kHz)

Input/Output

Impedance

(ohm)

SFELF10M7HA0G-B0

10.700

±30kHz

180 ±40kHz

520 max.

7.0max.

40 min.

[within 9MHz to fo]

40 min.

[within fo to 12MHz]

fo±45min.

330

SFELF10M7GA0G-B0

10.700

±30kHz

230 ±50kHz

600 max.

7.0max.

40 min.

[within 9MHz to fo]

40 min.

[within fo to 12MHz]

fo±60min.

330

SFELF10M7FA0G-B0

10.700

±30kHz

280 ±50kHz

650 max.

4.0±2.0dB

30 min.

[within 9MHz to fo]

30 min.

[within fo to 12MHz]

fo±85min.

330

Area of Attenuation: [within 20dB]

Area of Insertion Loss: at minimum loss point

Center frequency (fo) deﬁned by the center of 3dB bandwidth.

For safety purposes, connect the output of ﬁlters to the IF ampliﬁer through a D.C. blocking capacitor. Avoid applying a direct current to the output of ceramic ﬁlters.

The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.

!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

CERAFIL

r (CERAFILr 10.7MHz) for Audio/Visual Equipment
