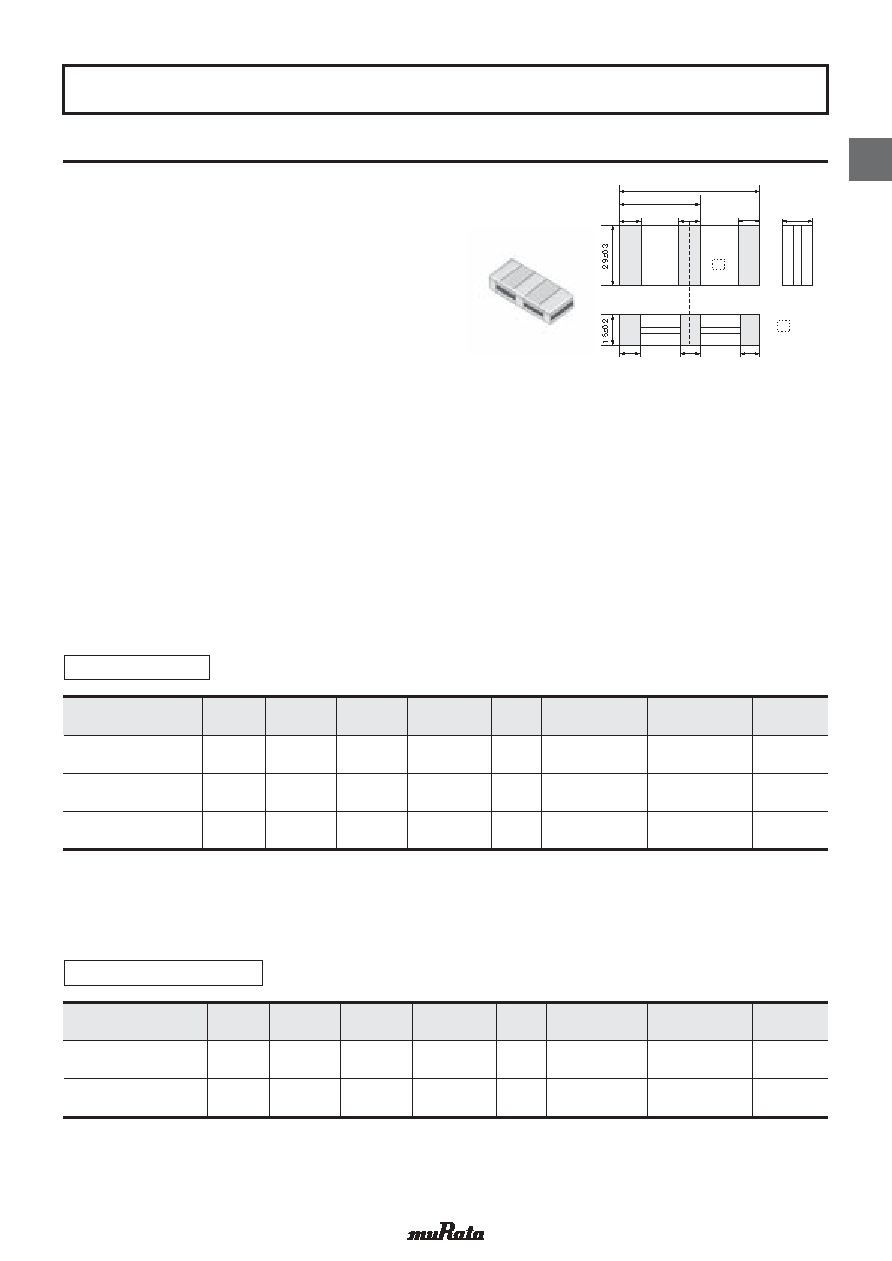

Chip Type SFECV/SFECK Series

SFECV/SFECK10M7 series for FM receivers are monolithic

type ceramic ﬁlters that utilize the thickness expander

mode of piezoelectric ceramics. SFECV series enable

customers to make an AM/FM set very thin, and it can be

useful to the total chip circuit.

c Features

1. The piezoelectric element is sandwiched by heat

resistant substrate, thus it has excellent mechanical

strength, and it is suitable for automatic mounting.

2. Various bandwidths are available. Select a suitable

type in accordance with the desired selectivity.

3. Operating Temperature Range:

-20 to +80°C (Standard Type)

-40 to +85°C (High-reliability Type)

Storage Temperature Range:

-40 to +85°C (Standard Type)

-55 to +85°C (High-reliability Type)

c Applications

1. Small, thin radios

2. Automotive radios

3. Headphone stereos

6.9±0.3

∗

4.05±0.4

1.2±0.5

1.0±0.5

1.2±0.3

1.2±0.5

1.5±0.2

(3)

(2)

(1)

(1) : Input

(2) : Ground

(3) : Output

∗∗ : EIAJ Monthly Code

∗∗ : Center Frequency Rank Code

: Marking

(in mm)

1.0±0.5

Standard Type

Part Number

Center

Frequency

(fo) (MHz)

3dB

Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Ripple

(dB)

Spurious

Attenuation

(1) (dB)

Spurious

Attenuation

(2) (dB)

Input/Output

Impedance

(ohm)

SFECV15M0EQ0001-R0

15.000

±50kHz

300 min.

750 max.

7.0max.

1.0 max.

30 min.

[within 14MHz to fo]

30 min.

[within fo to 16MHz]

330

SFECV10M7KA00-R0

10.700

±30kHz

110 ±30kHz

320 max.

6.0±2.0dB

1.0 max.

35 min.

[within 9MHz to fo]

35 min.

[within fo to 12MHz]

330

SFECV10M7JA00-R0

10.700

±30kHz

150 ±40kHz

380 max.

5.5±2.0dB

1.0 max.

35 min.

[within 9MHz to fo]

35 min.

[within fo to 12MHz]

330

Area of Attenuation: [within 20dB]

Area of Insertion Loss: at minimum loss point

Center frequency (fo) deﬁned by the center of 3dB bandwidth.

For safety purposes, connect the output of ﬁlters to the IF ampliﬁer through a D.C. blocking capacitor. Avoid applying a direct current to the output of ceramic ﬁlters.

The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.

Part Number

Center

Frequency

(fo) (MHz)

3dB

Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Ripple

(dB)

Spurious

Attenuation

(1) (dB)

Spurious

Attenuation

(2) (dB)

Input/Output

Impedance

(ohm)

SFECK10M7KA00S0-R0

10.700

±30kHz

110 ±30kHz

320 max.

6.0±2.0dB

1.0 max.

35 min.

[within 9MHz to fo]

35 min.

[within fo to 12MHz]

330

SFECK10M7JA00S0-R0

10.700

±30kHz

150 ±40kHz

380 max.

5.5±2.0dB

1.0 max.

35 min.

[within 9MHz to fo]

35 min.

[within fo to 12MHz]

330

Area of Attenuation: [within 20dB]

Area of Insertion Loss: at minimum loss point

Center frequency (fo) deﬁned by the center of 3dB bandwidth.

For safety purposes, connect the output of ﬁlters to the IF ampliﬁer through a D.C. blocking capacitor. Avoid applying a direct current to the output of ceramic ﬁlters.

The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.

High-Reliability Type

!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

CERAFIL

r (CERAFILr 10.7MHz) for Audio/Visual Equipment
