Packaging

Continued from the preceding page.

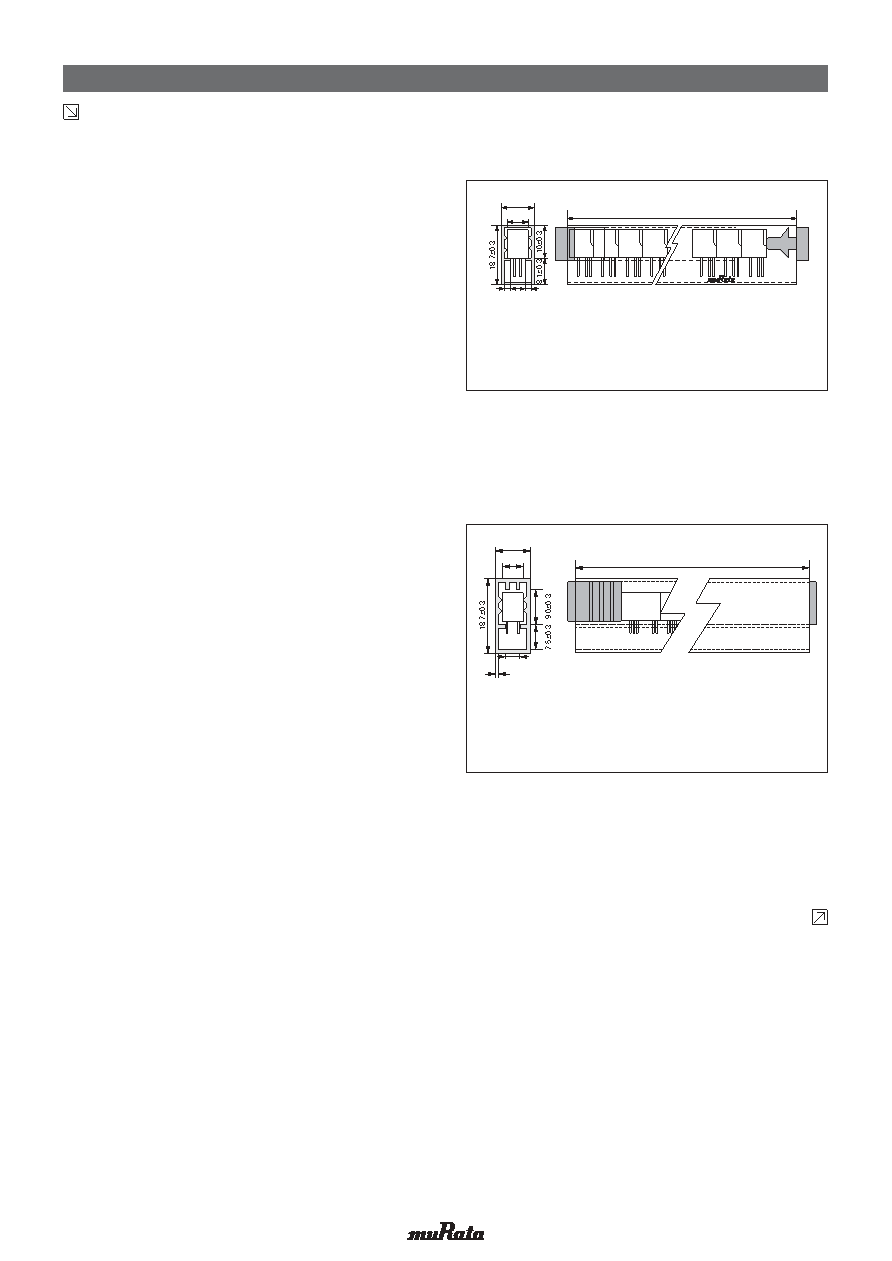

Standard of Magazine Cassette

1. Putting CERAFIL

r into Magazine

A magazine should contain 50pcs of CERAFIL

r, with

ground terminals all facing toward the "Murata" mark on a

magazine, and be closed with exclusive stoppers at both

ends. Above should be the minimum packaging unit.

2. Quality of Magazine

(1) Transparent so that input / output direction is visually

recognizable.

(2) With an angle of 35° CERAFIL

r should slip down

smoothly.

(3) Antistatic finish

(4) Recycling

Note: Magazines should be sent back for recycling.

(Therefore, empty magazines should not be damaged.)

3. Dimensions of Magazine Cassette

Material: Polycarbonate

Camber of Case: ±1mm max. against entire length (reference)

Twist of Case: ±0.5mm max. (reference)

(in mm)

Tolerance unless otherwise specified: ±0.2

HP51M0003-02

405±1.0

9.0±0.3

7.6±0.25

1.1

c CERAFILr 455kHz Lead Type SFPLA Series

Standard of Magazine Cassette

1. Putting CERAFIL

r into Magazine

A magazine should contain 50pcs of CERAFIL

r, with

ground terminals all facing toward the "Murata" mark on a

magazine, and be closed with exclusive stoppers at both

ends. Above should be the minimum packaging unit.

2. Quality of Magazine

(1) Transparent so that input / output direction is visually

recognizable.

(2) With an angle of 35° CERAFIL

r should slip down

smoothly.

(3) Antistatic finish

(4) Recycling

Note: Magazines should be sent back for recycling.

(Therefore, empty magazines should not be damaged.)

3. Magazine should be packaged in a cardboard box.

MURATA model name, quantity and outgoing inspection

number should be indicated on the box.

Cardboard box may contain maximum 33 magazines

(1,650 pieces of filter).

4. Dimensions of Magazine Cassette

Material: Polycarbonate

Camber of Case: ±1mm max. against entire length (reference)

Twist of Case: ±0.5mm max. (reference)

(in mm)

Tolerance unless otherwise specified: ±0.2

muRataHP51M0064

576.0±2.0

9.0±0.3

7.3±0.25

ANTISTATIC

5.3±0.3

0.6

c CERAFILr 455kHz Lead Type CFWLA Series

Continued on the following page.

!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.
