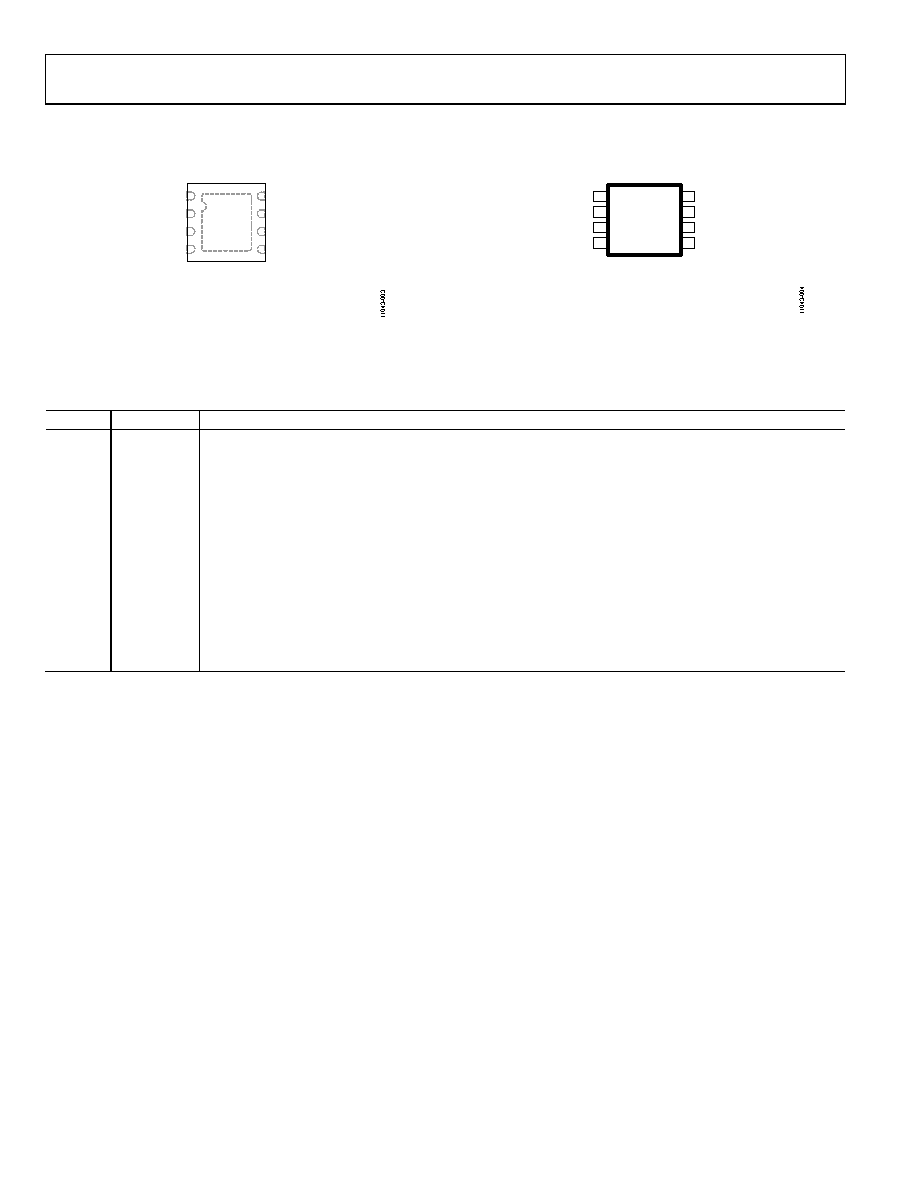

6 / 24 page ![]() ADM7150 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS 3 BYP 4 GND 1 VREG 2 VOUT 6 REF 5 REF_SENSE 8 VIN 7 EN ADM7150 TOP VIEW (Not to Scale) NOTES 1. EXPOSED PAD ON THE BOTTOM OF THE PACKAGE. EXPOSED PAD ENHANCES THERMAL PERFORMANCE AND IS ELECTRICALLY CONNECTED TO GND INSIDE THE PACKAGE. CONNECT THE EXPOSED PAD TO THE GROUND PLANE ON THE BOARD TO ENSURE PROPER OPERATION. Figure 3. 8-Lead LFCSP Pin Configuration ADM7150 TOP VIEW (Not to Scale) VREG 1 VOUT 2 BYP 3 GND 4 VIN 8 EN 7 REF 6 REF_SENSE 5 NOTES 1. EXPOSED PAD ON THE BOTTOM OF THE PACKAGE. EXPOSED PAD ENHANCES THERMAL PERFORMANCE AND IS ELECTRICALLY CONNECTED TO GND INSIDE THE PACKAGE. CONNECT THE EXPOSED PAD TO THE GROUND PLANE ON THE BOARD TO ENSURE PROPER OPERATION. Figure 4. 8-Lead SOIC Pin Configuration Table 5. Pin Function Descriptions Pin No. Mnemonic Description 1 VREG Regulated Input Supply to LDO Amplifier. Bypass VREG to GND with a 10 µF or greater capacitor. Do not connect a load to ground. 2 VOUT Regulated Output Voltage. Bypass VOUT to GND with a 10 µF or greater capacitor. 3 BYP Low Noise Bypass Capacitor. Connect a 1 µF capacitor to GND to reduce noise. Do not connect a load to ground. 4 GND Ground Connection. 5 REF_SENSE REF_SENSE must be connected to the REF pin for proper operation. Do not connect to VOUT or GND. 6 REF Low Noise Reference Voltage Output. Bypass REF to GND with a 1 µF capacitor. Short REF_SENSE to REF for fixed output voltages. Do not connect a load to ground. 7 EN Enable. Drive EN high to turn on the regulator and drive EN low to turn off the regulator. For automatic startup, connect EN to VIN. 8 VIN Regulator Input Supply. Bypass VIN to GND with a 10 µF or greater capacitor. EPAD Exposed Pad on the Bottom of the Package. The exposed pad enhances thermal performance and is electrically connected to GND inside the package. Connect the exposed pad to the ground plane on the board to ensure proper operation. Rev. 0 | Page 6 of 24 |
|
|
