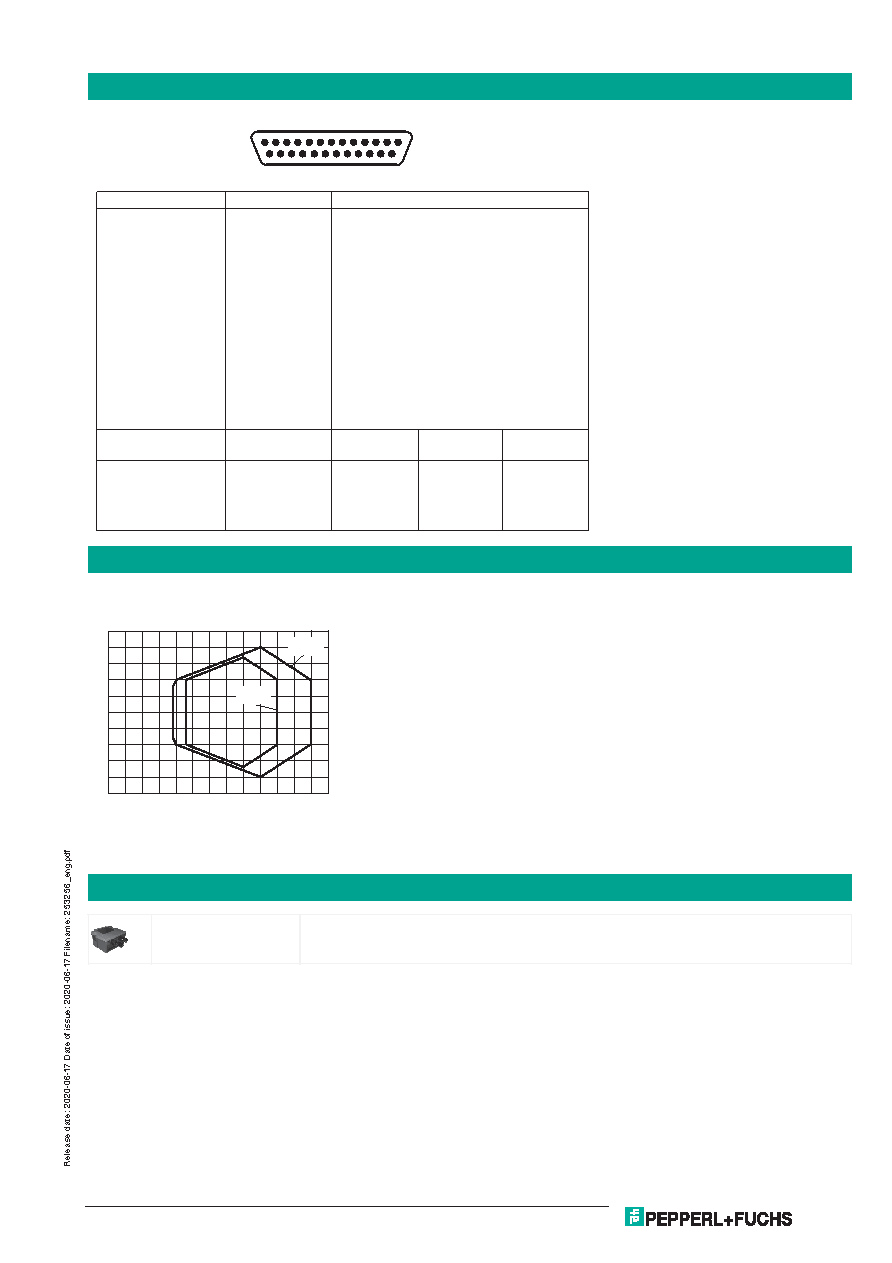

Connection

25-pin D-sub connector pinout

Pin

Name

Function

9, 13

+UB

Power supply input voltage +

25

GND

Power supply input voltage -

1

GND Chassis

Cable shield connected to chassis

18

IN TRG + (A)

External Trigger A +

19

IN TRG - (B)

External Trigger B -

6

IN 2 + (A)

Input 2 A +

10

IN 2 - (B)

Input 2 B -

8

OUT 1 +

Output 1 +

22

OUT 1 -

Output 1 -

11

OUT 2 +

Output 2 +

12

OUT 2 -

Output 2 -

20

RX RS232

Auxiliary RS232

21

TX RS232

Auxiliary RS232

23

ID +

High speed internal network ID-NET +

24

ID -

High speed internal network ID-NET -

14, 15, 16, 17

NC

Not connected

Pin

RS232

RS485

RS485

full-duplex

half-duplex

2

TX

TX +

RTX +

3

Main

RX

RX +

4

interface

RTS

TX -

RTX -

5

signals

CTS

RX -

7

SGND

SGND

SGND

1

13

14

25

Characteristic Curve

Š 0,50mm

(20 mils)

0,35mm

(14 mils)

VB14N-600

250

200

150

100

50

0

50

100

150

200

250

0

50 100 150 200 250 300 350 400 450 500 550 600

Reading characteristics

Read field width in mm

Read range in mm

Accessories

CBX100

Connector box for barcode scanner

Barcode scanner

VB14N-600-T-R

4
