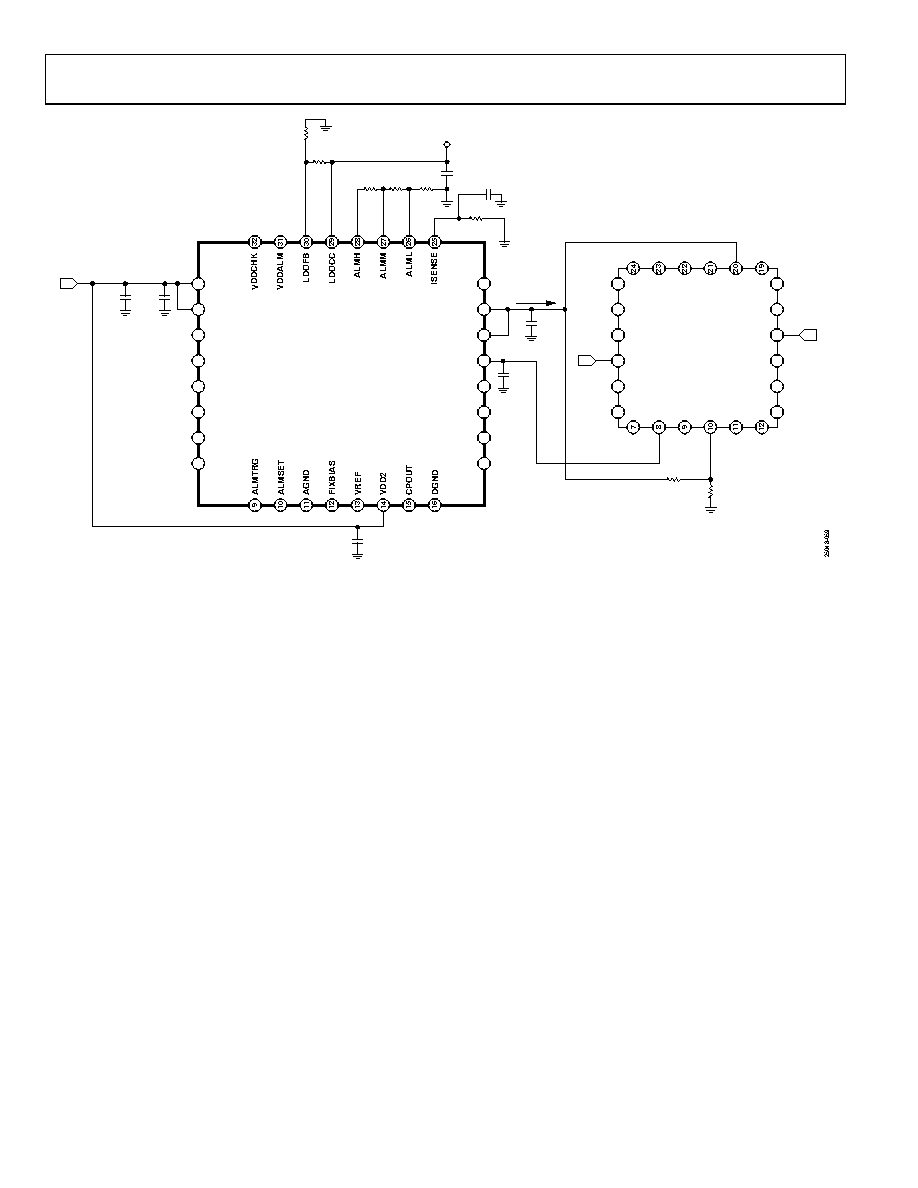

18 / 21 page ![]() HMC1126ACEZ Data Sheet Rev. 0 | Page 18 of 21 RFIN VGG1 VGG2 R2 4kΩ R1 1kΩ RFOUT VDD C21 10µF VDD1 C6 4.7µF R4 2.05Ω C22 0.1µF R14 1kΩ R15 3.32kΩ R16 1.69kΩ R10 15.3kΩ R5 10kΩ VLDOCC 5.06V C9 10µF + CURALM EN BGCAP PORCAP VDIGFB VDIG VDD1 TRGOUT AGND VNEGFB VNEGIN VGATEFB VGATE VDRAIN VDRAIN 17 8 1 2 3 4 5 6 7 18 19 20 21 22 23 24 6 5 4 3 2 1 13 14 15 16 17 18 HMC920LP5E HMC1126ACEZ C6 4.7µF C19 22µF VDD 5.3V VDRAIN = 5V IDRAIN = 120mA C24 100pF Figure 59. Application Circuit Using the HMC920LP5E with the HMC1126ACEZ (Additional Circuitry Omitted for Clarity) HMC920LP5E Bias Sequence When the HMC920LP5E bias control circuit is set up, the HMC1126ACEZ bias can be toggled on and off by applying 3.5 V (high) or 0 V (low) to the EN pin of the HMC920LP5E. If EN is left floating, the pin floats high. When EN is set to 3.5 V, VGATE initially drops to −2 V, and VDRAIN rises to 5 V. Then, VGATE and VGG1 increase until IDRAIN equals 120 mA. The closed control loop then regulates IDRAIN to 120 mA. When the EN pin goes low, VGATE and VGG1 drop back to −2 V and VDRAIN drops to 0 V. |
|
|
