Introduction

The Linx GPS and GNSS modules offer a simple, efficient and

cost-effective method of adding GPS or GNSS capabilities to any product.

The Master Development System is intended to give a designer all the tools

necessary to correctly incorporate the modules into an end product. The

development boards themselves serve several important functions:

• Rapid Module Evaluation: The boards allow the performance of the

modules to be evaluated quickly in a user’s environment.

• Application Development: An onboard prototyping area allows for the

development of custom circuits directly on the development board. All

signal lines are available on a header for easy access.

• Design Benchmark: The boards provide a known benchmark against

which the performance of a custom design may be judged.

The Master Development System includes one assembled development

board, one receiver module on an evaluation board, one spare receiver

module for use on your first prototype, one SH Series active GPS antenna,

4 AAA batteries and full documentation.

GPS/GNSS Master Development System

User's Guide

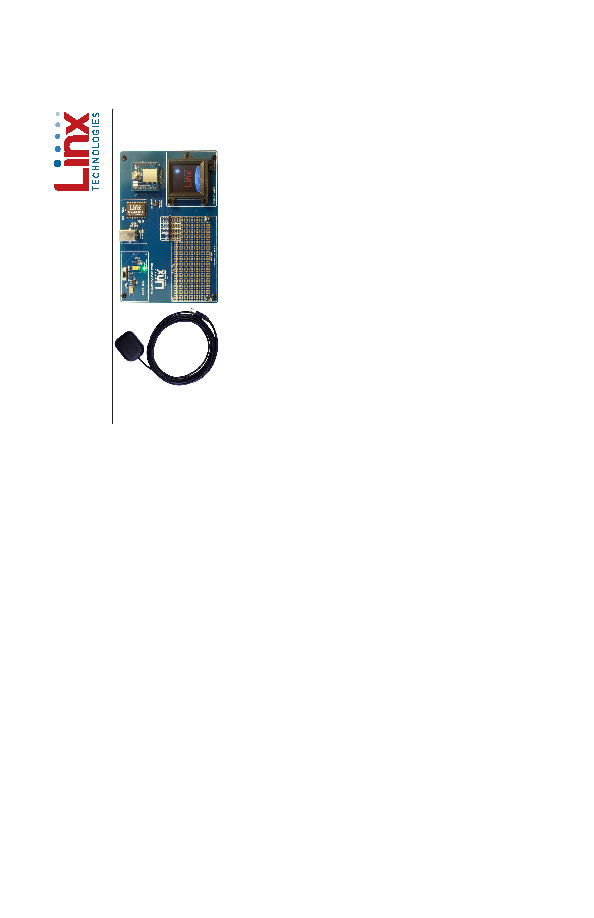

Figure 1: GPS / GNSS Master Development System
