E5EC-800

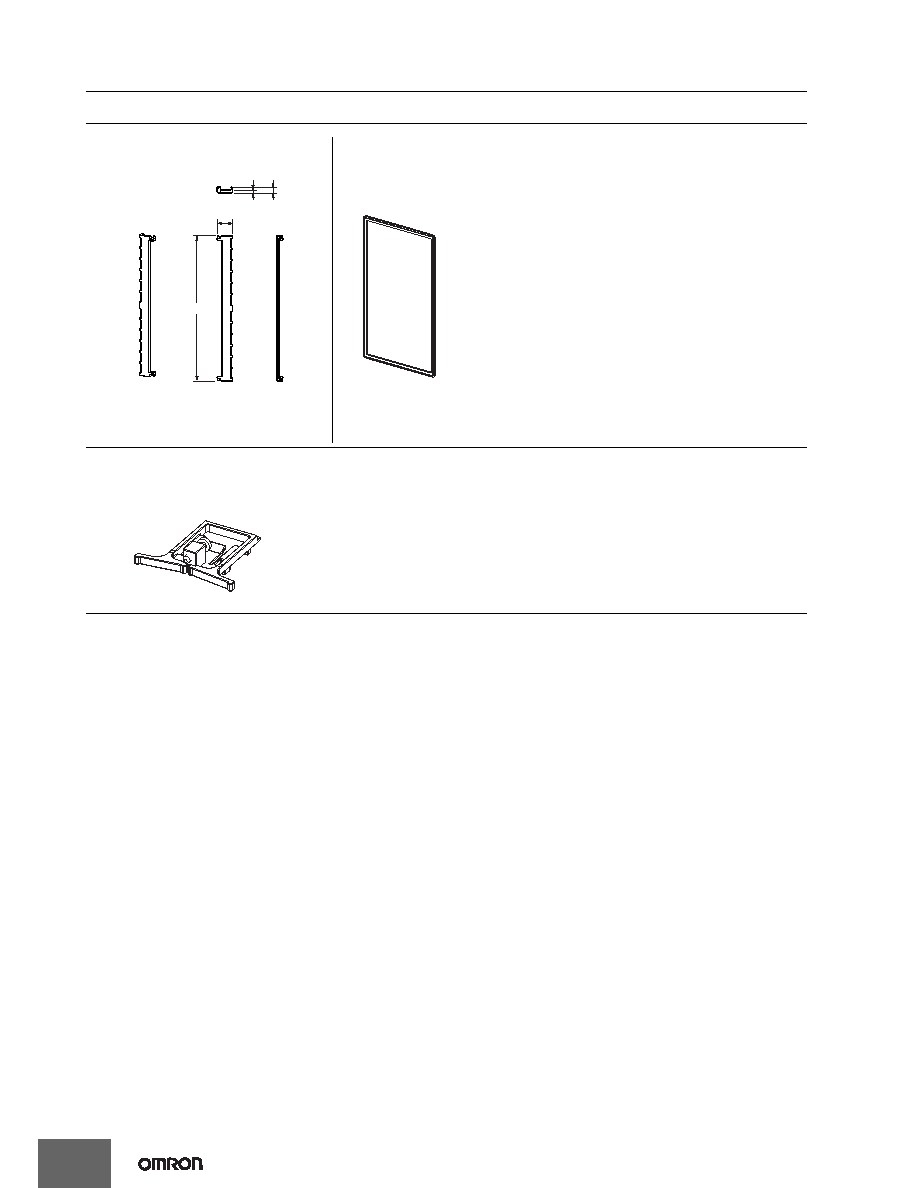

Accessories (Order Separately)

3.8

● Terminal Covers

E53-COV24 (Three Covers provided.)

● Waterproof Packing

Y92S-P9 (for DIN 48

× 96)

(Provided with the Controller.)

The following degrees of protection apply. The structure is not

waterproof for any part for which the degree of protection is not specified

or for any part with IP

@0 protection.

Front panel: IP66, Rear case: IP20, Terminal section: IP00

When waterproofing is required, fit Watertight Packing on the backside

of front panel. Keep the Port Cover on the front-panel Setup Tool port of

the E5EC securely closed. The degree of protection when the

Waterproof Packing is used is IP66. To maintain an IP66 degree of

protection, the Waterproof Packed and the Port Cover for the front-

panel Setup Tool port must be periodically replaced because they may

deteriorate, shrink, or harden depending on the operating environment.

The replacement period will vary with the operating environment. Check

the required period in the actual application. Use 3 years or sooner as

a guideline. If the Waterproof Packing and Port Cover are not

periodically replaced, waterproof performance may not be maintained.

If a waterproof structure is not required, then the Waterproof Packing

does not need to be installed.

● Mounting Adapter

Y92F-51 (for DIN 48

× 96)

(Two Adapters provided.)

One pair is provided with the Controller.

Order this Adapter separately if it becomes lost or damaged.
