ADP5075

Data Sheet

Rev. B | Page 16 of 19

COMMON APPLICATIONS

Table 8 and Table 9 list a number of common component

selections for typical VIN and VNEG conditions. These have been

bench tested and provide an off the shelf solution. To optimize

components for an application, use the ADIsimPower tool set.

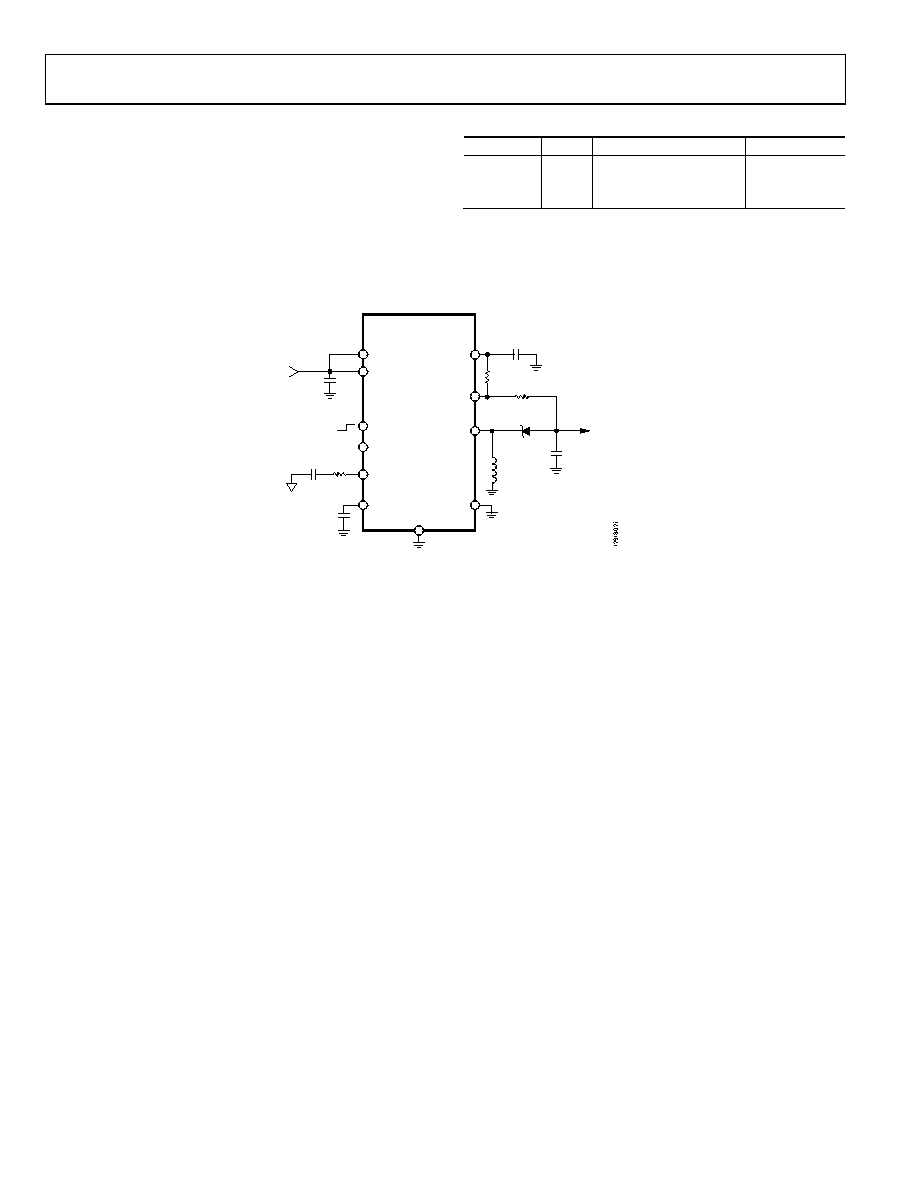

Figure 27 shows the schematic referenced by Table 8 and Table 9

with example component values for a +5 V input to a −15 V

output. Table 8 shows the components common to all VIN and

VNEG conditions.

Table 8. Recommended Common Component Selections

Reference

Value

Part Number

Manufacturer

CIN

10 µF

TMK316B7106KL-TD

Taiyo Yuden

CVREG

1 µF

GRM188R71A105KA61D

Murata

CVREF

1 µF

GRM188R71A105KA61D

Murata

ADP5075

COMP

15kΩ

68nF

GND

AVIN

PVIN

CIN

10µF

OFF

VIN

+5V

15µH

SYNC/FREQ

VREF

DFLS240

RFB

118kΩ

CVREF

1µF

COUT

10µF

CVREG

1µF

RFT

2.32MΩ

VREG

Figure 27. Typical +5 V Input to −15 V Output, 1.2 MHz Application
