ADP1649

Data Sheet

Rev. 0 | Page 28 of 28

PACKAGING AND ORDERING INFORMATION

OUTLINE DIMENSIONS

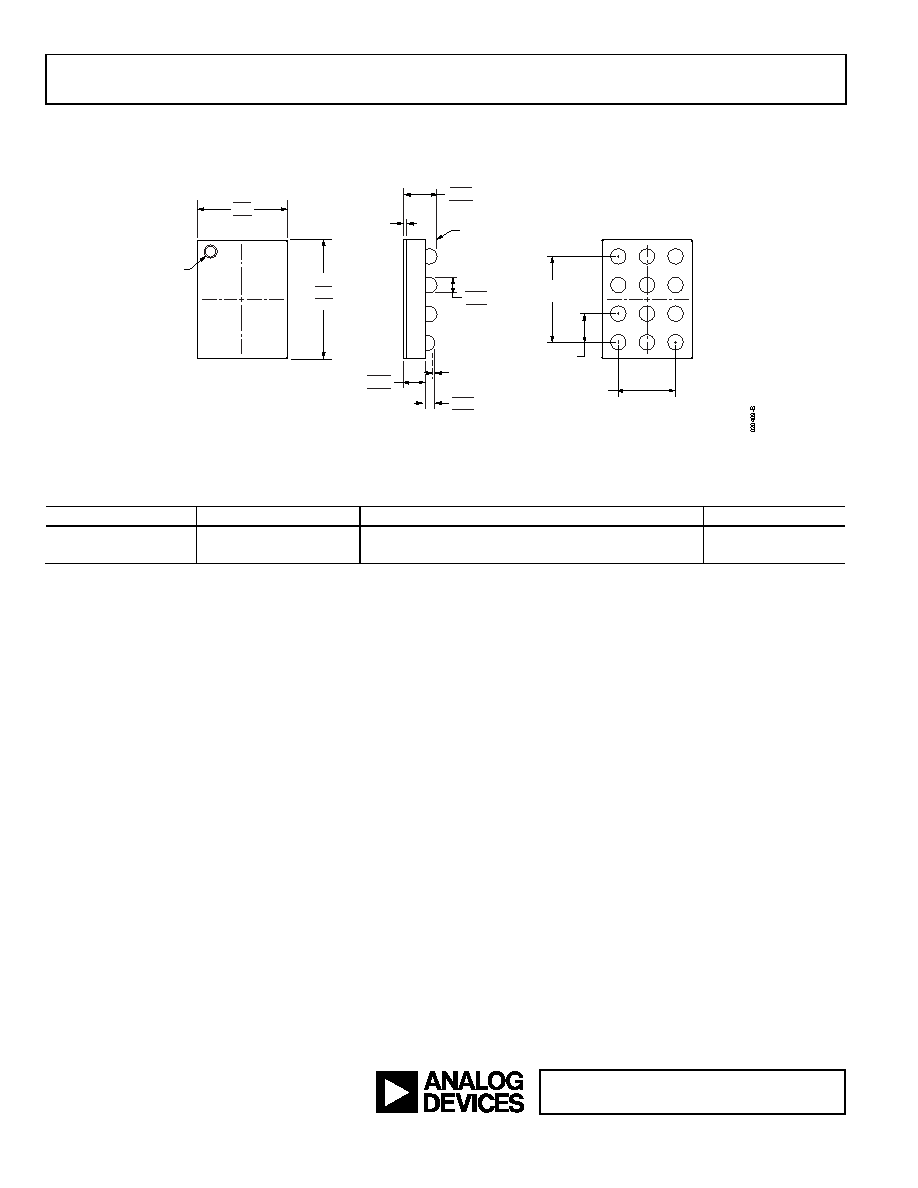

Figure 43. 12-Ball Wafer Level Chip Scale Package [WLCSP]

(CB-12-4)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option2

ADP1649ACBZ-R7

−40°C to +125°C

12-Ball Wafer Level Chip Scale Package [WLCSP]

CB-12-4

ADP1649CB-EVALZ

Evaluation Board WLCSP Package

1 Z = RoHS Compliant Part.

2 This package option is halide free.

I2C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors).

0.660

0.602

0.544

1.54

1.50

1.46

2.04

2.00

1.96

BOTTOM VIEW

(BALL SIDE UP)

TOP VIEW

(BALL SIDE DOWN)

0.330

0.310

0.290

1.50

REF

SEATING

PLANE

1.00

REF

0.50

REF

0.380

0.352

0.324

0.280

0.250

0.220

0.04 MAX

COPLANARITY

0.022

REF

BALL A1

IDENTIFIER

registered trademarks are the property of their respective owners.

D10779-0-7/12(0)
