Product data sheet

09 18 516 6321

SEK-18 SV MA LP ANG45 16P PL2

Current carrying capacity

The current carrying capacity of the connectors is

limited by the thermal load capability of the contact

element material including the connections and the

insulating parts. The derating curve is therefore

valid for currents which flow constantly (non-

intermittent) through each contact element of the

connector evenly, without exceeding the allowed

maximum temperature.

Measuring and testing techniques acc. to IEC

60512-5-2

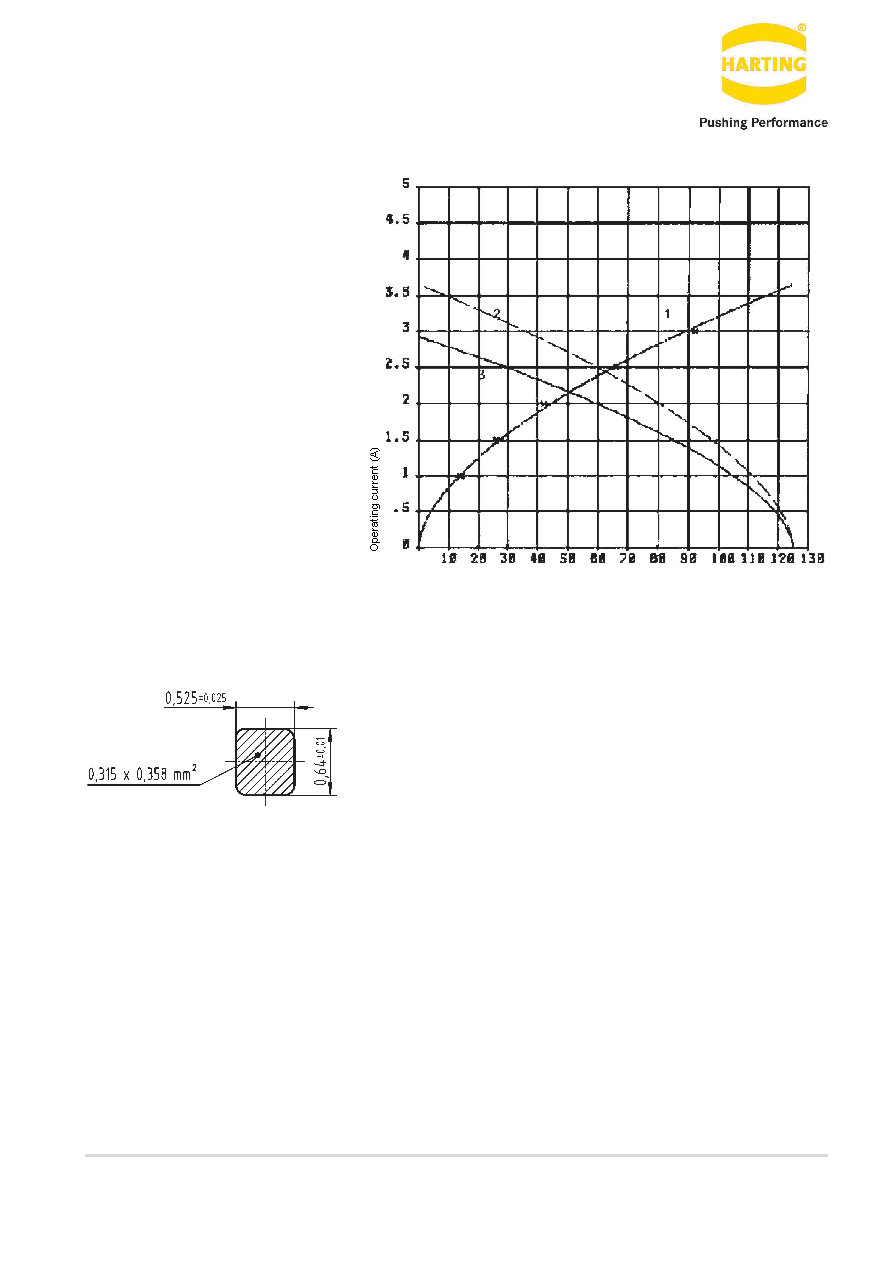

Ambient temperature (°C)

① Temperature raise

② Derating curve

③ Derating curve 80%

Cross section of solder termination
