ADN8835
Data Sheet
Rev. B | Page 10 of 27

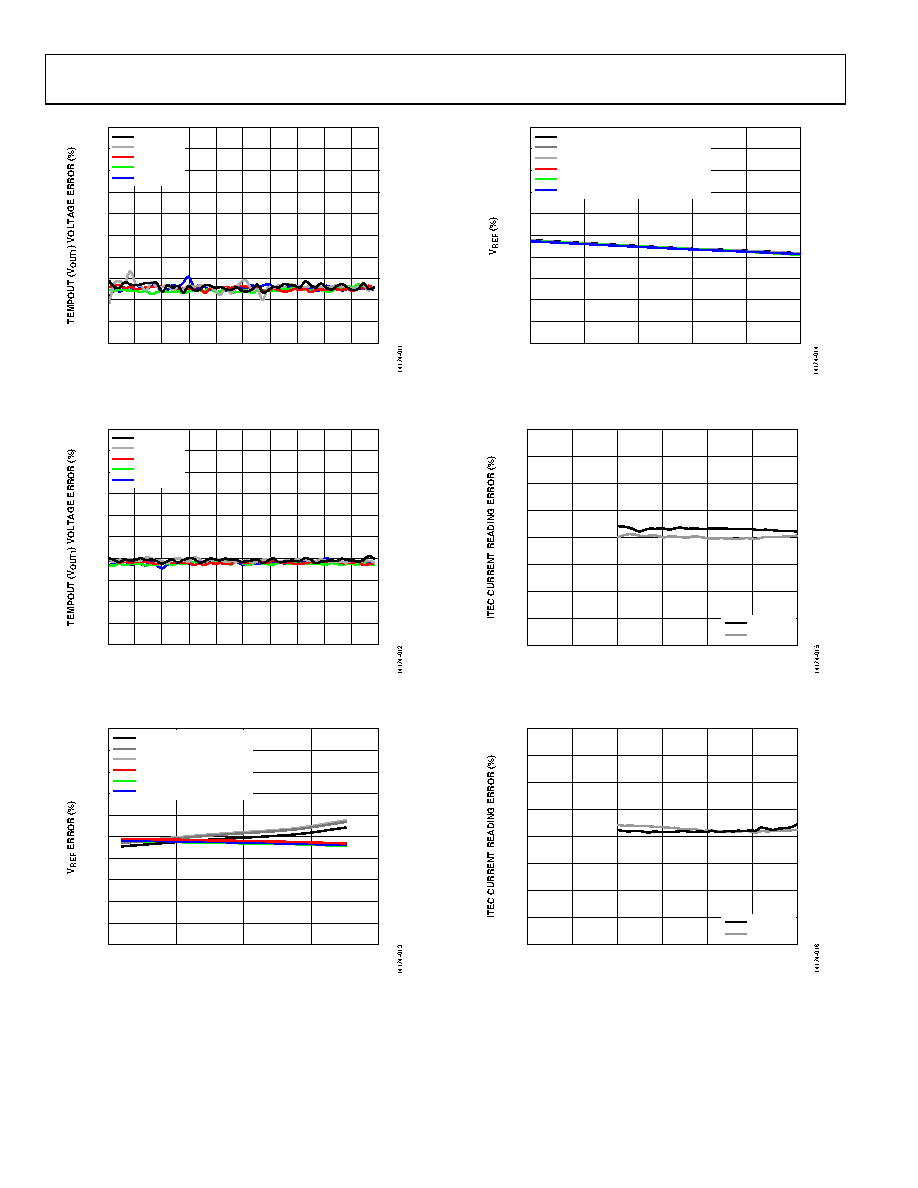

Figure 11. Thermal Stability (TEMPOUT) Voltage Error at Various Ambient
Temperatures, VIN = 3.3 V, VTEMPSET = 1 V
Figure 12. Thermal Stability (TEMPOUT) Voltage Error at Various Ambient
Temperatures, VIN = 3.3 V, VTEMPSET = 1.5 V
Figure 13. VREF Error vs. Ambient Temperature
Figure 14. VREF Load Regulation
Figure 15. ITEC Current Reading Error vs. TEC Current in Cooling Mode
Figure 16. ITEC Current Reading Error vs. TEC Current in Heating Mode
–0.10
–0.08
–0.06
–0.04
–0.02
0
0.02
0.04
0.06
0.08
0.10
0
20
40
60
80
100
120
140
160
180
200
TIME (Seconds)
TA = 15°C
TA = 25°C
TA = 35°C
TA = 45°C
TA = 55°C
–0.10
–0.08
–0.06
–0.04
–0.02
0
0.02
0.04
0.06
0.08
0.10
0
20
40
60
80
100
120
140
160
180
200
TIME (Seconds)
TA = 15°C
TA = 25°C
TA = 35°C
TA = 45°C
TA = 55°C
–1.0
–0.8
–0.6
–0.4
–0.2
0
0.2
0.4
0.6
0.8
1.0
–50
150
100
50
0
AMBIENT TEMPERATURE (°C)
VIN = 2.7V AT 5mA LOAD
VIN = 3.3V AT 5mA LOAD
VIN = 5.5V AT 5mA LOAD
VIN = 2.7V AT NO LOAD
VIN = 3.3V AT NO LOAD
VIN = 5.5V AT NO LOAD
–1.0
–0.8
–0.6
–0.4
–0.2
0
0.2
0.4
0.6
0.8
1.0
0
1
5
4
3
2
LOAD CURRENT AT VREF (mA)
VIN = 3.3V, ITEC = 0.5A, COOLING
VIN = 3.3V, ITEC = 0.0A
VIN = 3.3V, ITEC = 0.5A, HEATING
VIN = 5V, ITEC = 0.5A, COOLING
VIN = 5V, ITEC = 0A
VIN = 5V, ITEC = 0.5A, HEATING
20
–20
–15
–10
–5
0
5
10
15
0
3.0
2.5
2.0
1.5
1.0
0.5
TEC CURRENT (A)
VIN = 3.3V
VIN = 5V
20
–20
–15
–10
–5
0
5
10
15
0
3.0
2.5
2.0
1.5
1.0
0.5
TEC CURRENT (A)
VIN = 3.3V
VIN = 5V
