Ind. angular measuring system

Using a different actuating element

You can use a different actuator instead of the BT-F130-A actuator provided, which must be positioned centrally in the sensor opening. When

using a different actuating element, the element must fulfill all requirements relating to the material, dimensions and distance to the sensitive

surface on the sensors (see table). Failing to fulfill all of these requirements may reduce the accuracy/resolution of the sensor or even cause the

sensor to stop functioning.

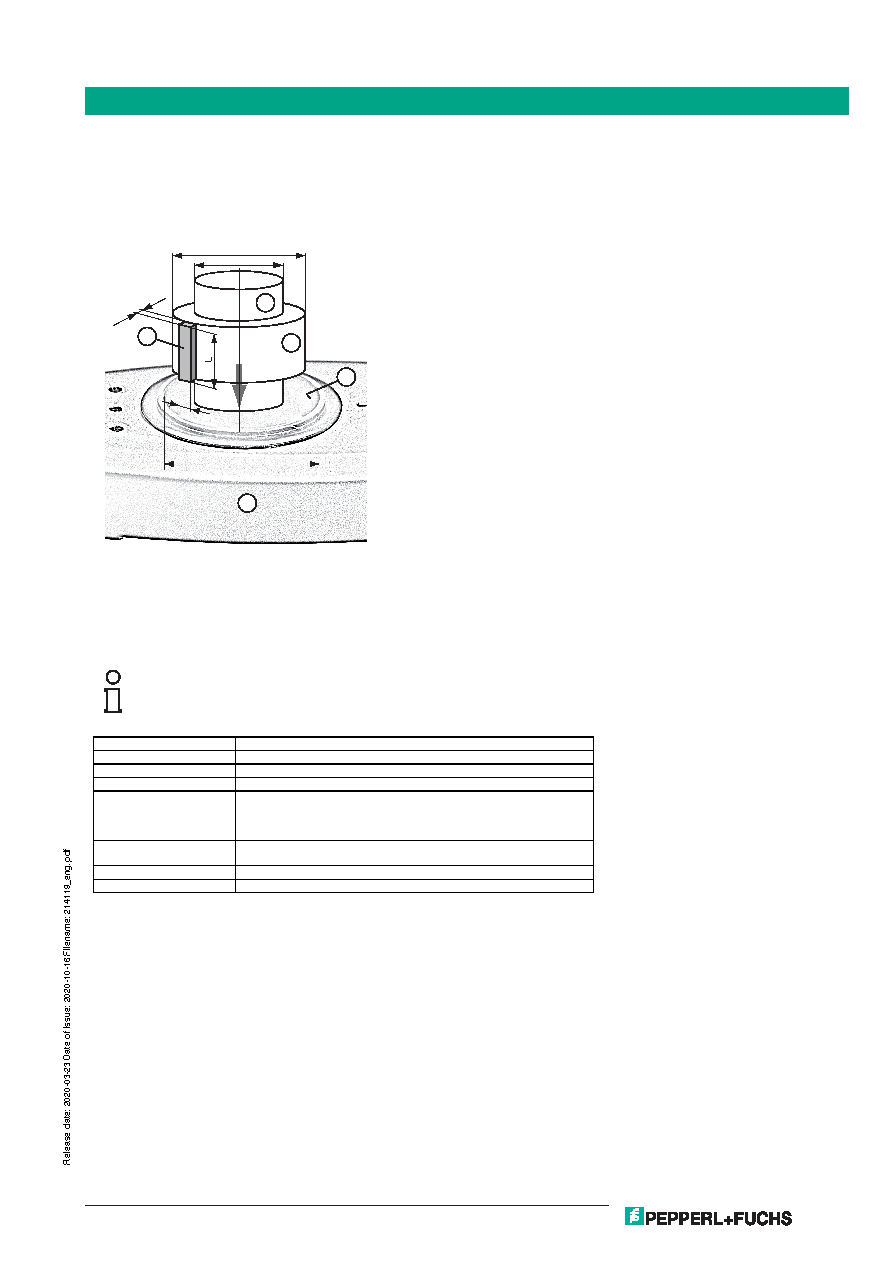

Dimensions when using a different actuating element

Additional Information

A

Drive shaft

B

Insulation ring made from non-conductive material

C

Separate actuator (L 23 mm)

D

Sensitive surface on the sensors (black, cylindrical inner surface)

E

Sensor

Actuator (C) can be placed on the insulating ring made from non-conductive material (B) or inserted

in this ring.

Dimension

t2 mm

w7.5 mm

L



23mm

d1

Depending on the drive shaft material

S235JR+AR (previously St37-2): max. 19 mm

Stainless steel 1.4435 / AISI 316L (V4A): max. 21 mm

Stainless steel 1.4305 / AISI 303 (V2A): max. 23 mm

d2

Select so that the distance between the edges of the actuator and the

sensitive surface on the sensor is 1 ... 2 mm.

d3

41.5 mm

Actuator material

Mild steel such as S235JR+AR (previously St37-2)

w

A

C

D

E

B

t

d1

d2

d3
