MODEL: WL40W1F-DS2

WL40W1F SPECIFICATIONS

ES-9084 Rev.0 Page 4/7

http://www.m-system.co.jp/

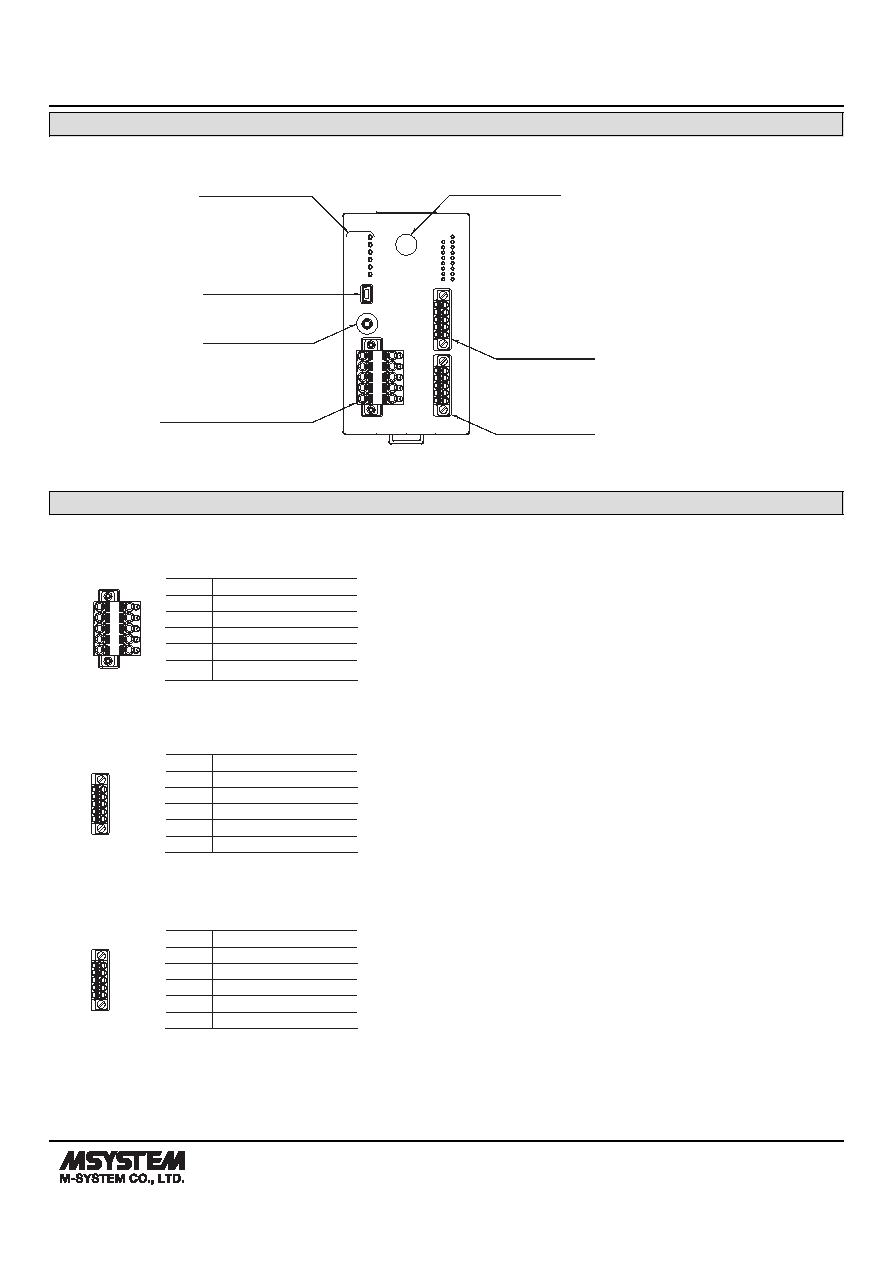

EXTERNAL VIEW

■ FRONT VIEW

Power

24V1

AI1A

AI1B

0V1

920Link

920Run

920ERR

CFG2

CFG1

24V

24V2

AI2A

AI2B

0V2

FE1

Maintenance Connector

Connector for Power Input

Configuration Jack

Status Indicator LED

Antenna Connector

Input Connector 1

Input Connector 2

TERMINAL ASSIGNMENTS

■ CONNECTOR FOR POWER INPUT

Unit side connector: MSTBV2,5/5-GF-5,08AU (Phoenix Contact)

Cable side connector: TFKC2,5/5-STF-5,08AU (Phoenix Contact)

24V

FE1

FUNCTION

24 V

Power input 24 V

0 V

Power input 0 V

Not used

FE1

Power input earth

■ INPUT CONNECTOR 1

Unit side connect: MC1,5/5-GF-3,5 (Phoenix Contact)

Cable side connector: FMC1,5/5-STF-3,5 (Phoenix Contact)

24V1

AI1A

AI1B

0V1

FUNCTION

24V1

2-wire transmitter 1 +

AI1A

2-wire transmitter 1 –

AI1B

Current input 1 +

0V1

Current input 1 –

Not used

■ INPUT CONNECTOR 2

Unit side connect: MC1,5/5-GF-3,5 (Phoenix Contact)

Cable side connector: FMC1,5/5-STF-3,5 (Phoenix Contact)

24V2

AI2A

AI2B

0V2

FUNCTION

24V2

2-wire transmitter 2 +

AI2A

2-wire transmitter 2 –

AI2B

Current input 2 +

0V2

Current input 2 –

Not used
