Technical Data

Storage temperature

-20 ... 85 °C (-4 ... 185 °F)

Relative humidity

90 % , noncondensing

Shock resistance

< 50 g

Vibration resistance

< 3 G , 11 ... 200 Hz

Mechanical specifications

Housing width

70 mm

Housing height

70 mm

Housing depth

50 mm

Degree of protection

IP67

Connection

8-pin, M12x1 connector, standard (supply+IO) ,

5-pin, M12x1 socket, standard (RS 232) ,

4-pin, M12x1 socket, standard (LAN)

Material

Housing

PC/ABS

Optical face

Plastic pane

Installation

4 x M6 threading

Mass

approx. 160 g

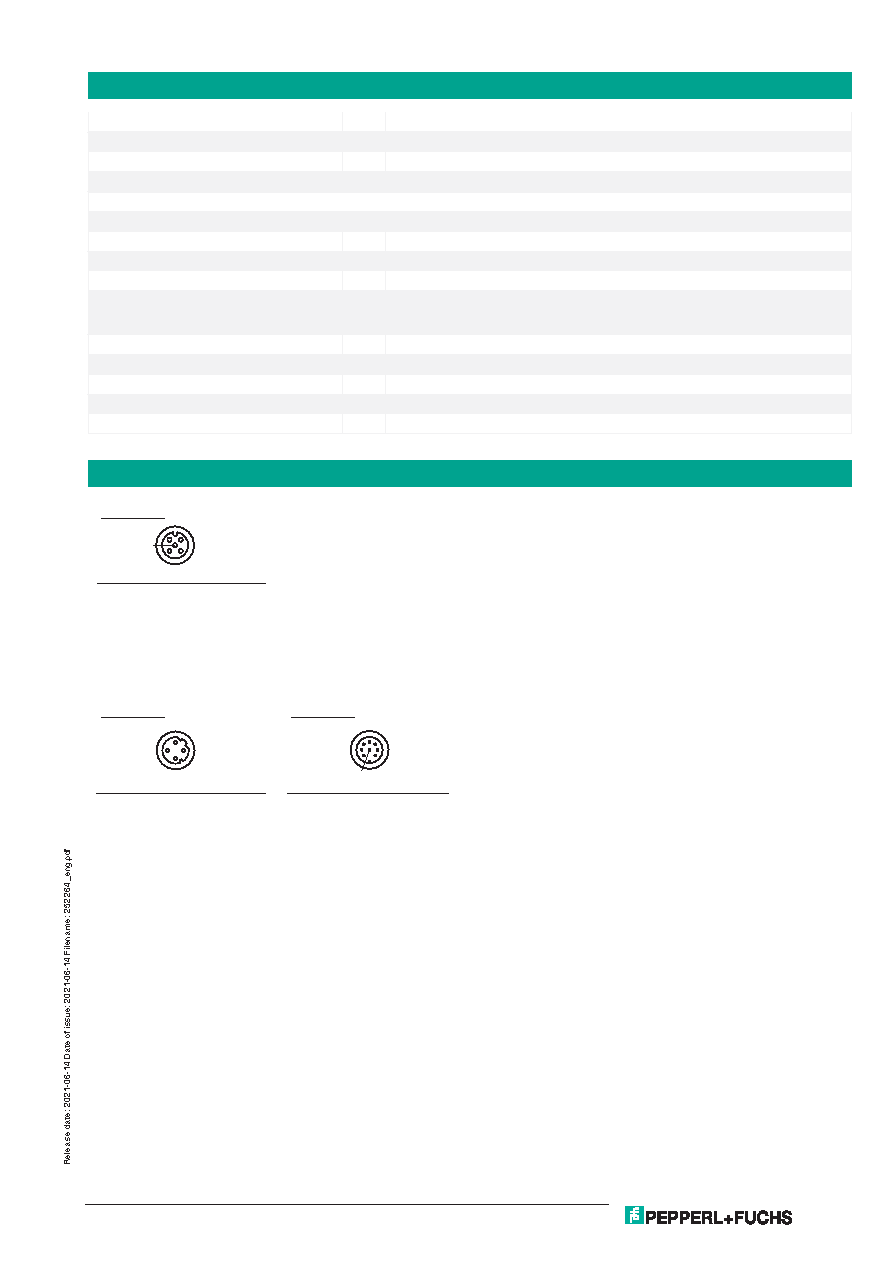

Connection

RS 232

LAN

24 V DC+IO

1

5

3

2

4

1

4

6

7

8

5

3

2

1

3

4

2

Pin

Signal

1

+UB

2

TX RS232

3

GND

4

RX RS232

5

NC

Pin

Signal

1

TX+ Ethernet

2

RX+ Ethernet

3

TX- Ethernet

4

RX- Ethernet

Pin

Signal

1

OUT +X

2

+UB

3

OUT -Y

4

OUT +Y

5

OUT -X

6

IN 1

7

GND

8

IN 2

Vision Sensor

PHA200-F200-R2

3
