Product data sheet

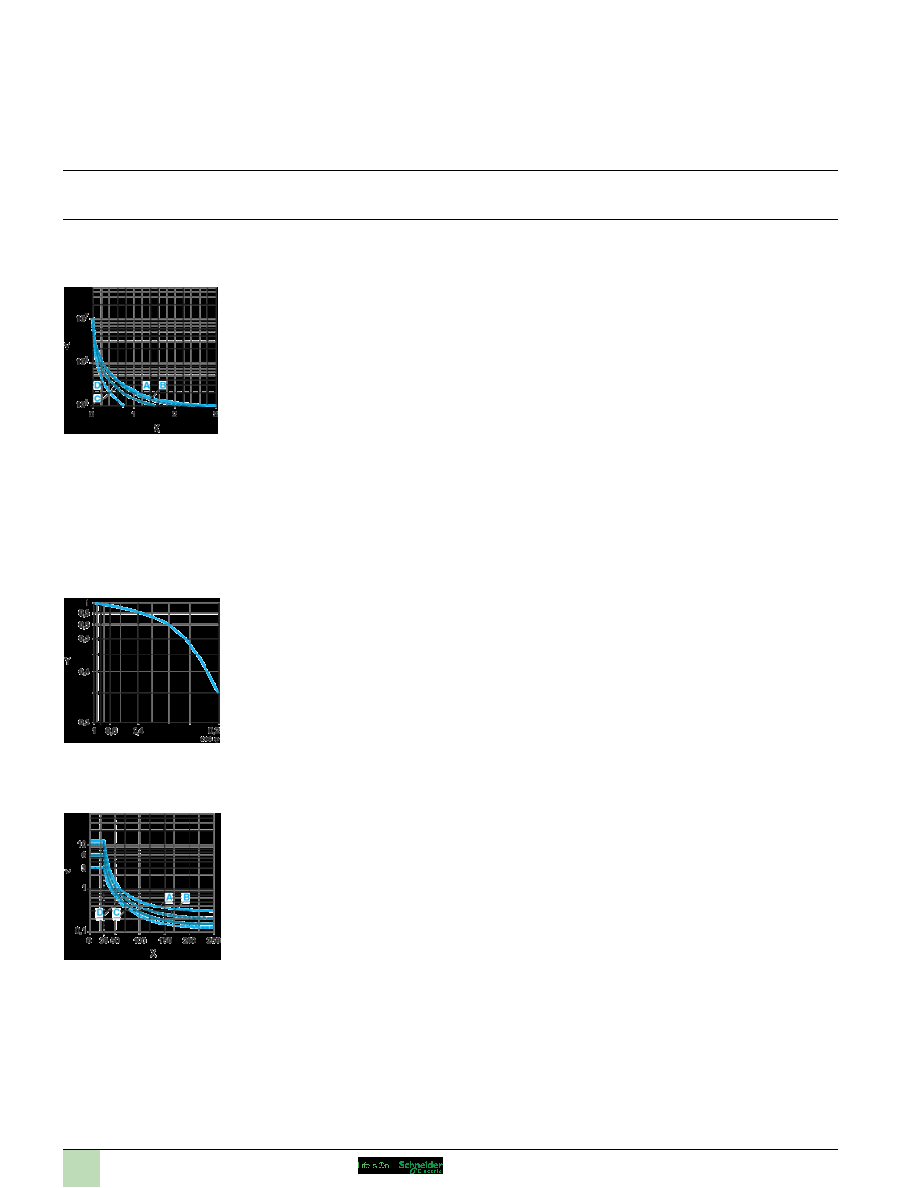

Performance Curves

RXM2AB2P7PVM

Electrical Durability of Contacts

Durability (inductive load) = durability (resistive load) x reduction coefficient.

Resistive AC load

X Switching capacity (kVA)

Y Durability (Number of operating cycles)

A RXM2AB•••

B RXM3AB•••

C RXM4ΑΒ•••

D RXM4GΒ•••

Reduction coefficient for inductive AC load (depending on power factor cos ϕ)

Y Reduction coefficient (A)

Maximum switching capacity on resistive DC load

X Voltage DC

Y Current DC

A RXM2AB•••

B RXM3AB•••

C RXM4ΑΒ•••

D RXM4GΒ•••

Note : These are typical curves, actual durability depends on load, environment, duty cycle, etc.
