HMC8191LC4TR-R5 bảng dữ liệu(PDF) 1 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
HMC8191LC4TR-R5 bảng dữ liệu(HTML) 1 Page - Analog Devices |
|
|

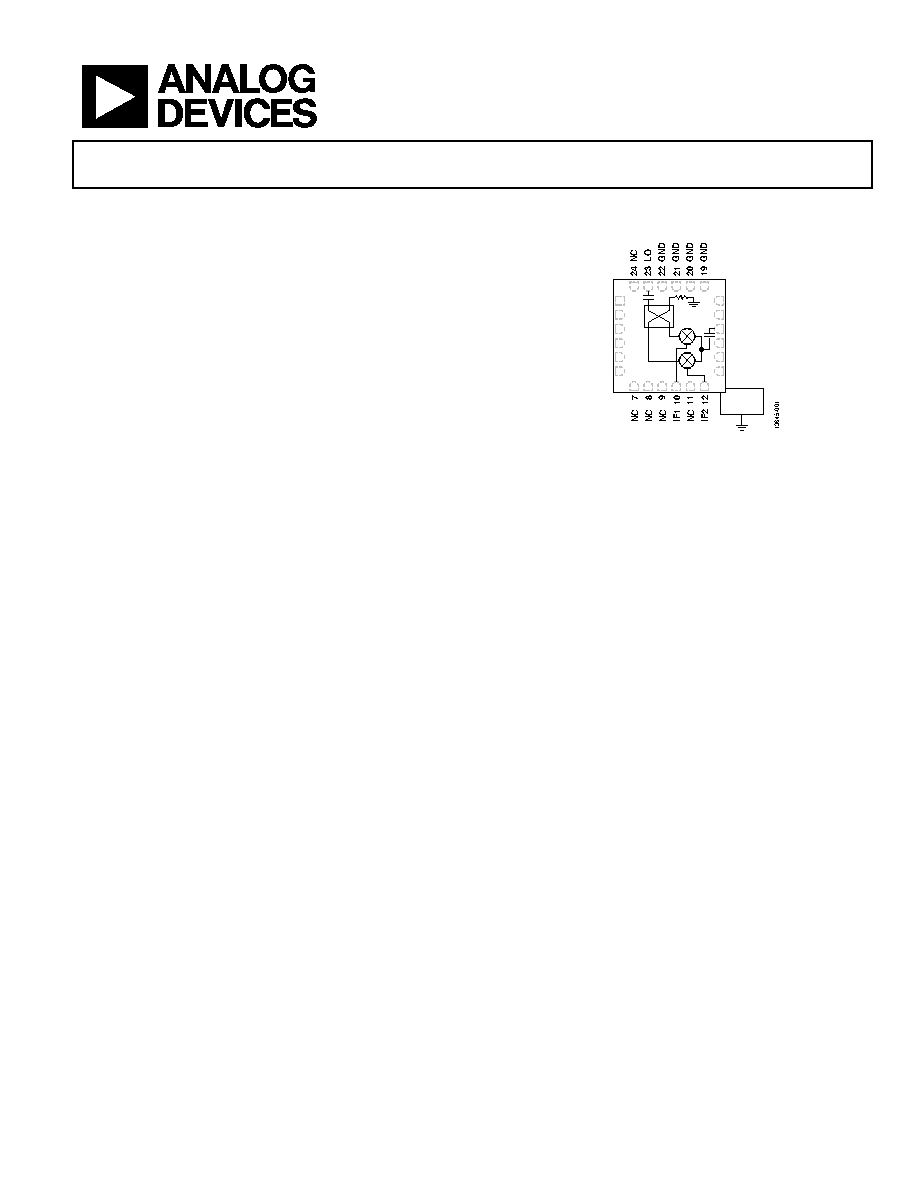

1 / 44 page  6 GHz to 26.5 GHz, Wideband I/Q Mixer Data Sheet HMC8191 Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2017–2019 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com FEATURES Passive, wideband I/Q mixer RF and LO range: 6 GHz to 26.5 GHz Wide IF bandwidth of dc to 5 GHz Single-ended RF, LO, and IF Conversion loss: 9 dB (typical) Image rejection: 25 dBc (typical) Single-sideband noise figure: 9 dB (typical) Input IP3 (downconverter): 24 dBm (typical) Input P1dB compression point (downconverter): 15 dBm (typical) Input IP2: 55 dBm (typical) LO to RF isolation: 40 dB (typical) LO to IF isolation: 40 dB (typical) RF to IF isolation: 20 dB (typical) Amplitude balance: ±0.5 dB (typical) Phase balance (downconverter): ±5° (typical) RF return loss: 15 dB (typical) LO return loss: 15 dB (typical) IF return loss: 15 dB (typical) Exposed pad, 4 mm × 4 mm, 24-terminal, ceramic, LCC package APPLICATIONS Test and measurement instrumentation Military, aerospace, and defense applications Microwave point to point base stations FUNCTIONAL BLOCK DIAGRAM 13 1 3 4 2 GND GND GND GND 5 6 GND GND GND PACKAGE BASE 14 GND 15 GND 16 RF 17 GND 18 GND HMC8191 Figure 1. GENERAL DESCRIPTION The HMC8191 is a passive, wideband, I/Q monolithic microwave integrated circuit (MMIC) mixer that can be used either as an image reject mixer for receiver operations or as a single-sideband upconverter for transmitter operations. With a radio frequency (RF) and local oscillator (LO) range of 6 GHz to 26.5 GHz, and an intermediate frequency (IF) bandwidth of dc to 5 GHz, the HMC8191 is ideal for applications requiring a wide frequency range, excellent RF performance, and a simple design with fewer components and a small printed circuit board (PCB) footprint. A single HMC8191 can replace multiple narrow-band mixers in a design. The inherent I/Q architecture of the HMC8191 offers excellent image rejection and thereby eliminates the need for expensive filtering for unwanted sidebands. The mixer also provides excellent LO to RF and LO to IF isolation and reduces the effect of LO leakage to ensure signal integrity. Being a passive mixer, the HMC8191 does not require any dc power sources. It offers a lower noise figure compared to an active mixer, ensuring superior dynamic range for high performance and precision applications. The HMC8191 is fabricated on a gallium arsenide (GaAs) metal semiconductor field effect transistor (MESFET) process and uses Analog Devices, Inc. mixer cells and a 90-degree hybrid. The HMC8191 is available in a compact, 4 mm × 4 mm, 24-terminal leadless chip carrier (LCC) package and operates over a −40°C to +85°C temperature range. An evaluation board for the HMC8191 is also available from the Analog Devices website. |
