MODEL: R1M-P4

R1M-P4 SPECIFICATIONS

ES-5664 Rev.11 Page 1/7

http://www.m-system.co.jp/

Remote I/O R1M Series

CONTACT I/O MODULE

(4 totalized counter inputs, 8 contact inputs and outputs)

Functions & Features

• Totalized counter inputs

• Easy system expansion via Modbus RTU

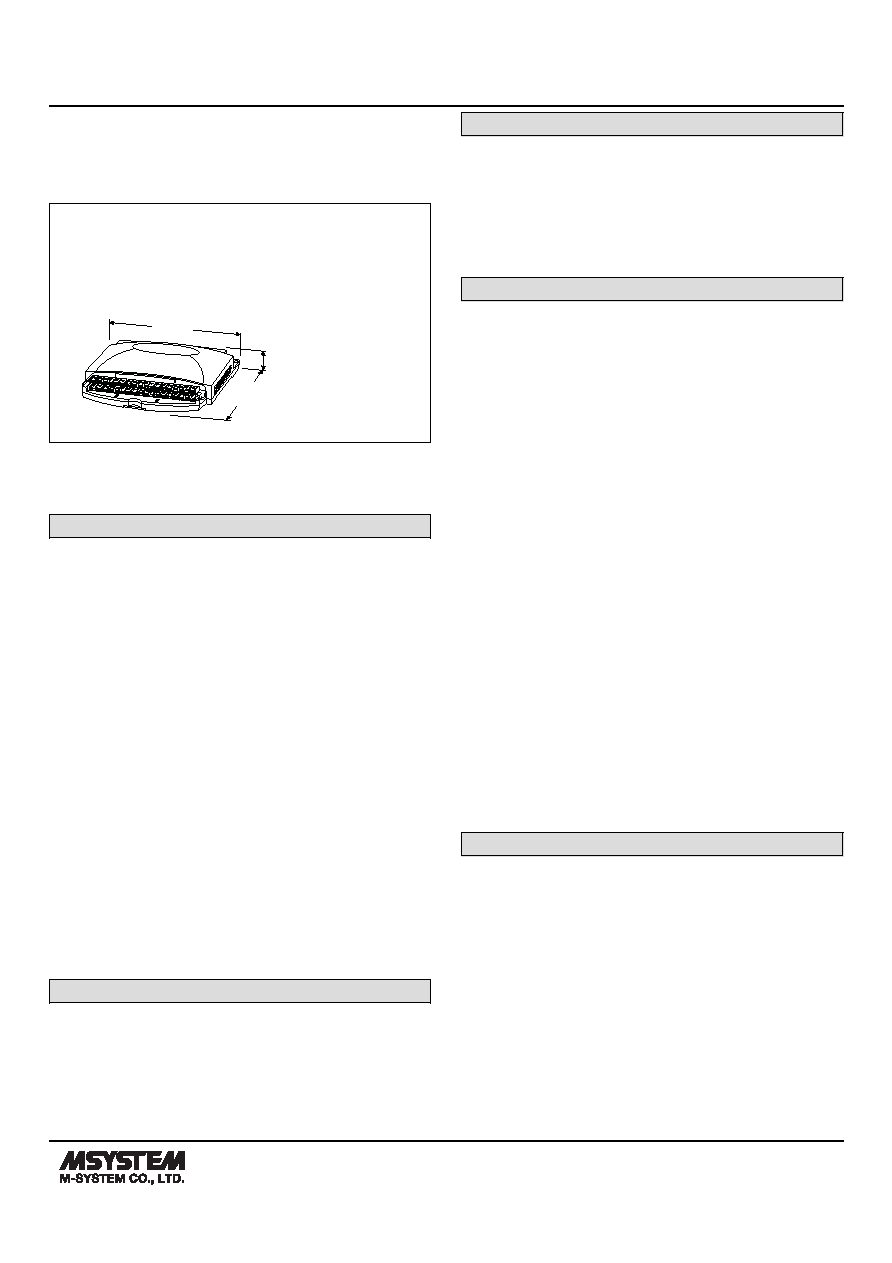

40

(1.57)

115

(4.53)

mm (inch)

175 (6.89)

MODEL: R1M-P4T-[1][2]

ORDERING INFORMATION

• Code number: R1M-P4T-[1][2]

Specify a code from below for each [1] and [2].

(e.g. R1M-P4T-M2/Q)

• Specify the specification for option code /Q

(e.g. /C01)

FIELD TERMINAL TYPE

T: M3 screw terminals

[1] POWER INPUT

AC Power

M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,

47 – 66 Hz)

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[2] OPTIONS

blank: none

/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

/C03: Rubber coating

RELATED PRODUCTS

• R1X configurator software (model: R1CON)

Downloadable at M-System’s web site.

A dedicated cable is required to connect the module to the

PC. Please refer to the internet software download site or

the users manual for the PC configurator for applicable

cable types.

GENERAL SPECIFICATIONS

Connection

Power input, transmission: Euro type connector terminal

length 7 mm)

RS-232-C: 9-pin D-sub connector (male)

(Lock screw No. 4-40 UNC)

I/O: M3 screw terminals (torque: 0.6N·m)

Screw terminal: Nickel-plated steel

Housing material: Flame-resistant resin (gray)

Channel selector for the digital display: Rotary DIP switch;

1 thr. 8: ch.1 thr. ch.8 contact input

A thr. D: ch.A thr. ch.D totalized counter input

0, 9, E, F: no display

Isolation: RS-232-C or RS-485 to I/O to power

Node address setting: Rotary switch; 1 – F (15 nodes)

RUN indicator LED: Green light blinks in normal conditions.

Count memory at power loss: Count value is saved in the

lost.

Data storing characteristics: 10 years at 20°C

■ Indicators

Digital display: 6-digit red LED; 4.6 mm high; Shows either

totalized (lower 6 digits only) or momentary value;

selectable with internal DIP switch

COMMUNICATION

Baud rate: 38.4 kbps

Communication: Half-duplex, asynchronous, no procedure

Protocol: Modbus RTU

Refer to Modbus Protocol Reference Guide (EM-5650) for

supported functions.

■ RS-232-C

Standard: Conforms to RS-232-C, EIA

Transmission distance: 10 meters max.

■ RS-485

Standard: Conforms to TIA/EIA-485-A

Transmission distance: 500 meters max.

Transmission media: Shielded twisted-pair cable (CPEV-S

0.9 dia.)
