4 / 6 page

3312 - 2 mm SMD Trimming Potentiometer

CFN Series Metal Foil, Current Sensing Chip Resistor

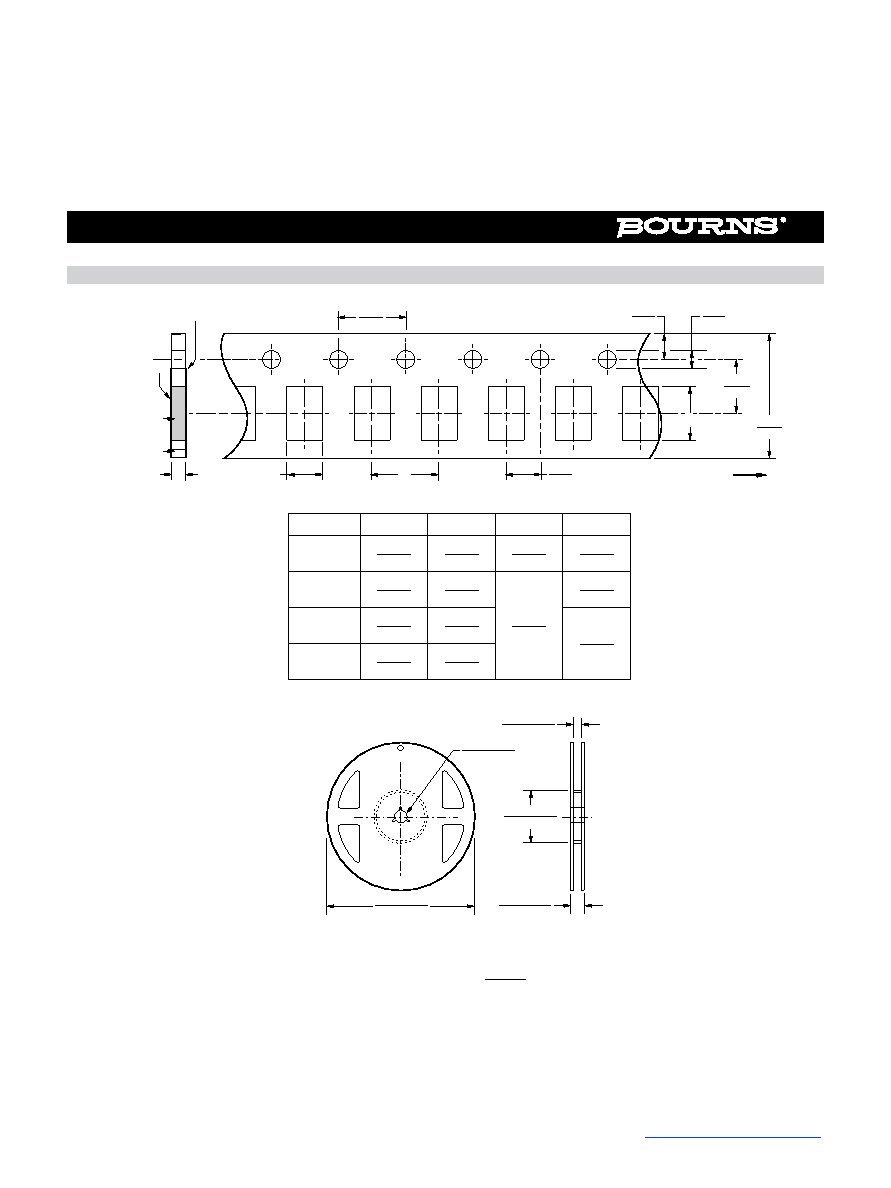

Packaging Dimensions (Conforms to EIA RS-481A)

9.0±1.0

(.354±.039)

60.0±1.0

(2.362±.039)

DIA.

11.5±1.0

(.453±.039)

178±2.0

(7.008±.079)

13.0±1.0

(.512±.039)

Specificationsaresubjecttochangewithoutnotice.

Usersshouldverifyactualdeviceperformanceintheirspecificapplications.

Theproductsdescribedhereinandthisdocumentaresubjecttospecificlegaldisclaimersassetforthonthelastpageofthisdocument,andatwww.bourns.com/docs/legal/disclaimer.pdf.

DIMENSIONS:

(INCHES)

DIRECTION OF UNREELING

AP1

Top Tape

Bottom Tape

2.00

(.079)

8.00

(.315)

3.50

(.138)

1.75

(.069)

1.50

(.059)

4.00

(.157)

DIA.

Resistor

Paper Tape

Model

CFN0402

0.75

(.030)

1.30

(.051)

2.00

(.079)

0.65

(.026)

CFN0603

1.10

(.043)

1.90

(.075)

4.00

(.157)

0.85

(.034)

CFN0805

1.60

(.063)

2.40

(.094)

1.05

(.041)

CFN1206

2.00

(.079)

3.60

(.142)
