ADRF5547

Data Sheet

Rev. A | Page 10 of 15

RECEIVE OPERATION, LOW GAIN MODE

FREQUENCY (GHz)

TA = –40°C

TA = +25°C

TA = +105°C

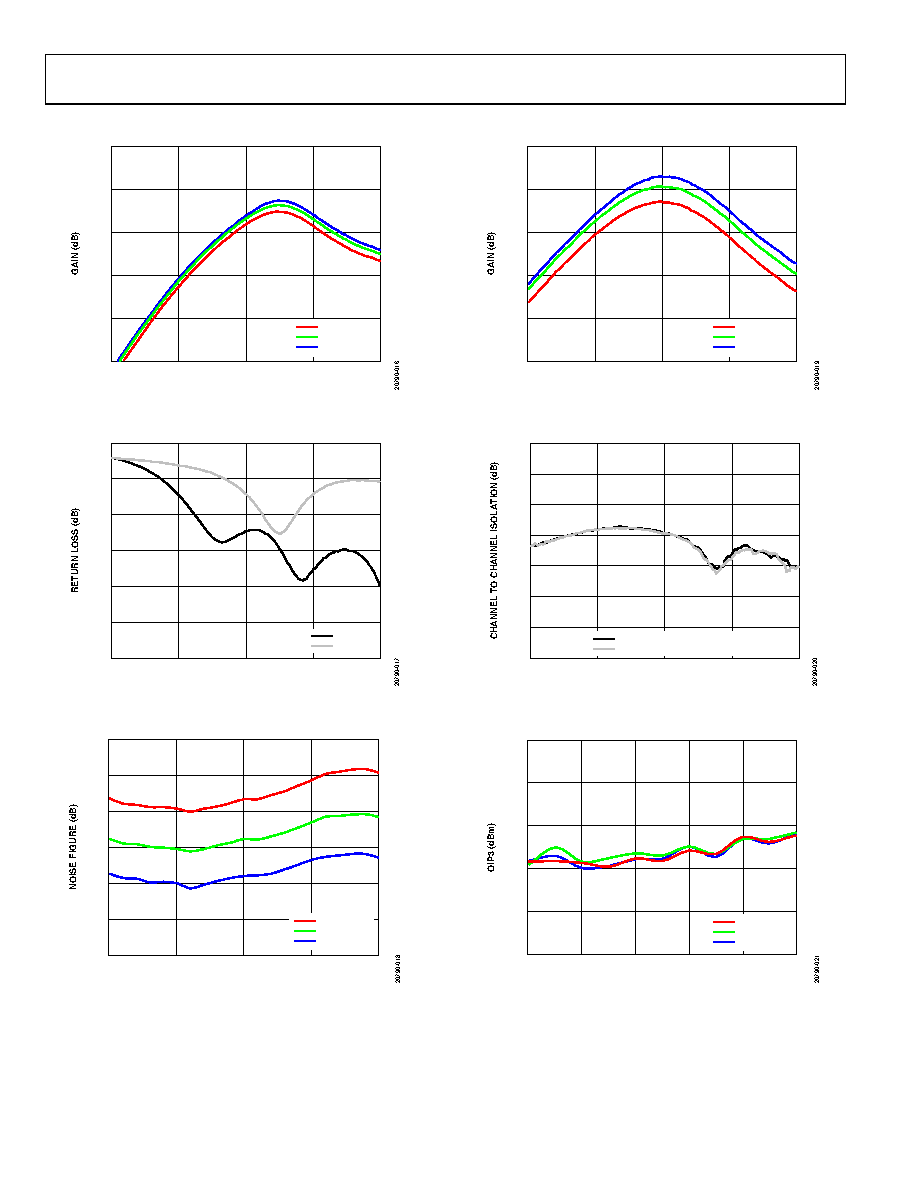

Figure 16. Gain vs. Frequency at Various Temperatures

–30

–25

–20

–15

–10

–5

FREQUENCY (GHz)

OUTPUT

INPUT

Figure 17. Return Loss vs. Frequency

3.0

0.5

1.0

1.5

2.0

2.5

3.5

4.0

4.5

5.0

5.5

FREQUENCY (GHz)

TA = –40°C

TA = +25°C

TA = +105°C

Figure 18. Noise Figure vs. Frequency at Various Temperatures

3.5

4.0

4.5

5.0

5.5

FREQUENCY (GHz)

TA = –40°C

TA = +25°C

TA = +105°C

Figure 19. Gain vs. Frequency at Various Temperatures,

3.5 GHz to 5.5 GHz

–20

–90

–80

–70

–60

–50

–40

–30

FREQUENCY (GHz)

ISOLATION RxOUT-ChB TO RxOUT-ChA

ISOLATION RxOUT-ChA TO RxOUT-ChB

Figure 20. Channel to Channel Isolation vs. Frequency

4.2

4.4

4.6

4.8

5.0

5.2

FREQUENCY (GHz)

TA = –40°C

TA = +25°C

TA = +105°C

Figure 21. OIP3 vs. Frequency at Various Temperatures,

−8 dBm Output Tone Power
