MODEL: GR8-EM

GR8-EM SPECIFICATIONS

ES-8621 Rev.8 Page 3/7

https://www.m-system.co.jp/

BASIC CONFIGURATIONS

I/O Modules

DL8

Protective Cover

GR8−

EM

Make sure to install the unit coupled with DL8 at the end of all the other modules. With the unit installed between DL8 and I/O modules,

I/O modules after the unit can not perform internal communication or the power can not be supplied to these I/O modules.

Web-enabled

Remote Terminal Unit

Ethernet/RS-485 Adaptor

■ COUPLED WITH DL8

A

B

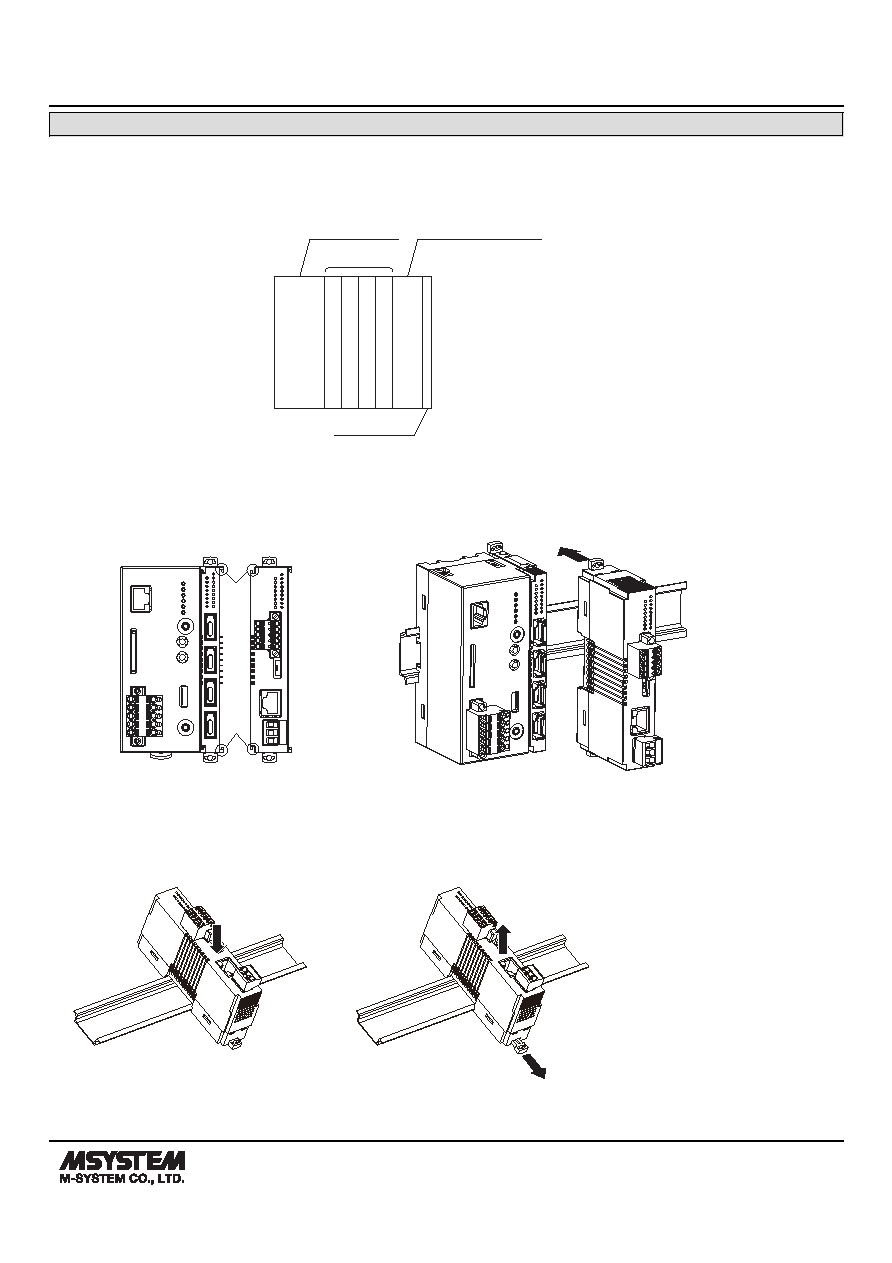

• HOW TO INSTALL

Conrm that the locking clamps of the unit are set. Insert the unit straight in perpendicularly to the rail such that the grooves of the

unit and the module on the immediate left engage each other. (A & B in the below gure)

■ SINGLE USE

• HOW TO INSTALL

A) Hang the upper hook at the rear side of unit on the DIN rail. Push in the lower in keeping pressing the unit to the DIN rail.

B) To remove the unit, push down the DIN rail adaptor using a minus screwdriver. Pull out the lower part of the unit.

Remove the upper part from the DIN rail.

Note: When the unit is mounted on a DIN rail attached on the wall surface in vertical direction, use of an attachment

plate to prevent the module from sliding down is recommended.
