MODEL: WPT

WPT SPECIFICATIONS

ES-2238 Rev.8 Page 3/3

http://www.m-system.co.jp/

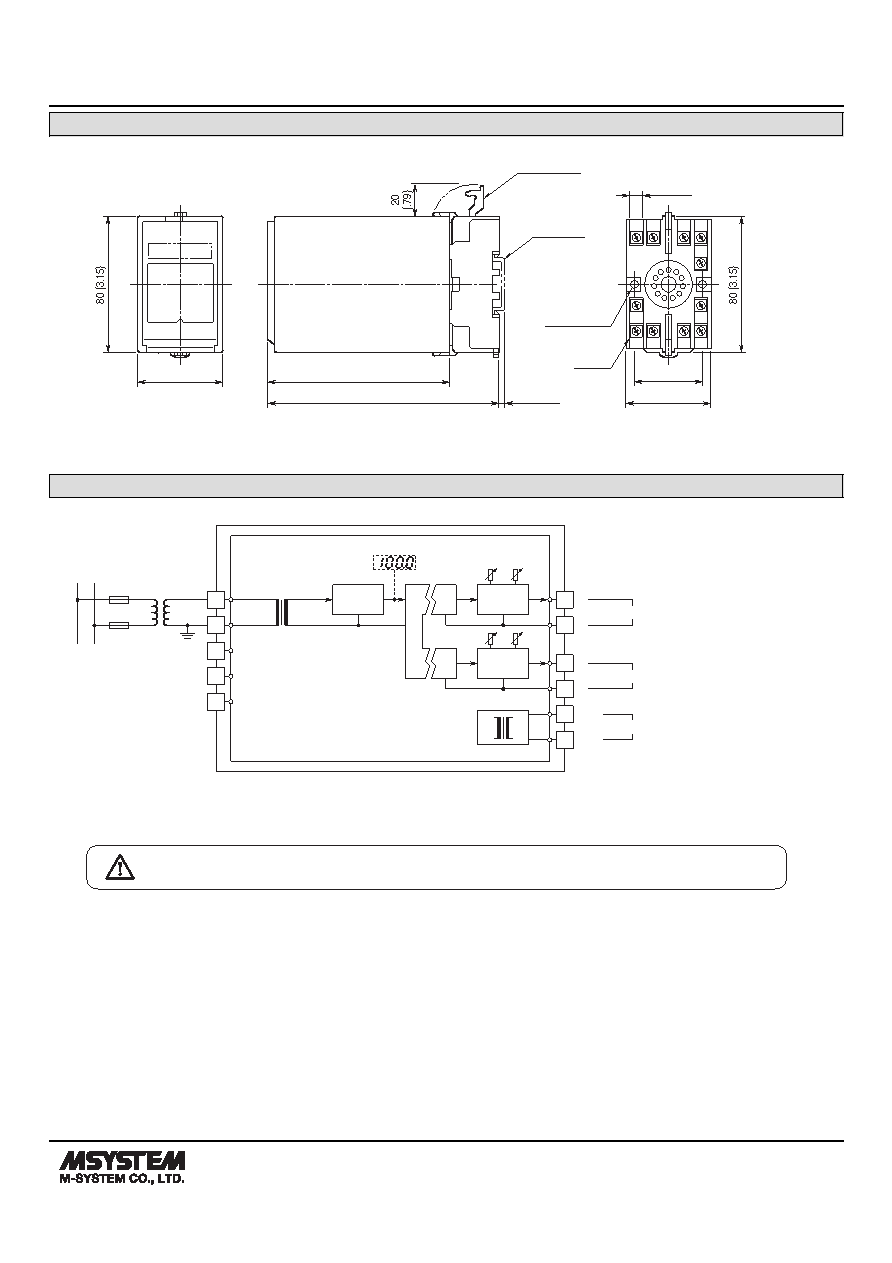

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

5

6

7

8

2

1

11

10

50 (1.97)

107 (4.21)

136 (5.35)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

• When mounting, no extra space is needed between units.

3

9

4

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

*

Base Socket

*Option /E

R.M.S.

Operation

4

3

INPUT

TRANSFORMER

1

2

V

U

v

u

FUSE

VT

LOAD

SOURCE

5

6

U(+)

V(–)

POWER

7

8

+

–

OUTPUT 1

1

2

+

–

10

11

Isolation

S

Z

Output

Driver

S

Z

Output

Driver

OUTPUT 2

9

FUSE
