MODEL: M6SBS

M6SBS SPECIFICATIONS

ES-7985 Rev.10 Page 2/5

http://www.m-system.co.jp/

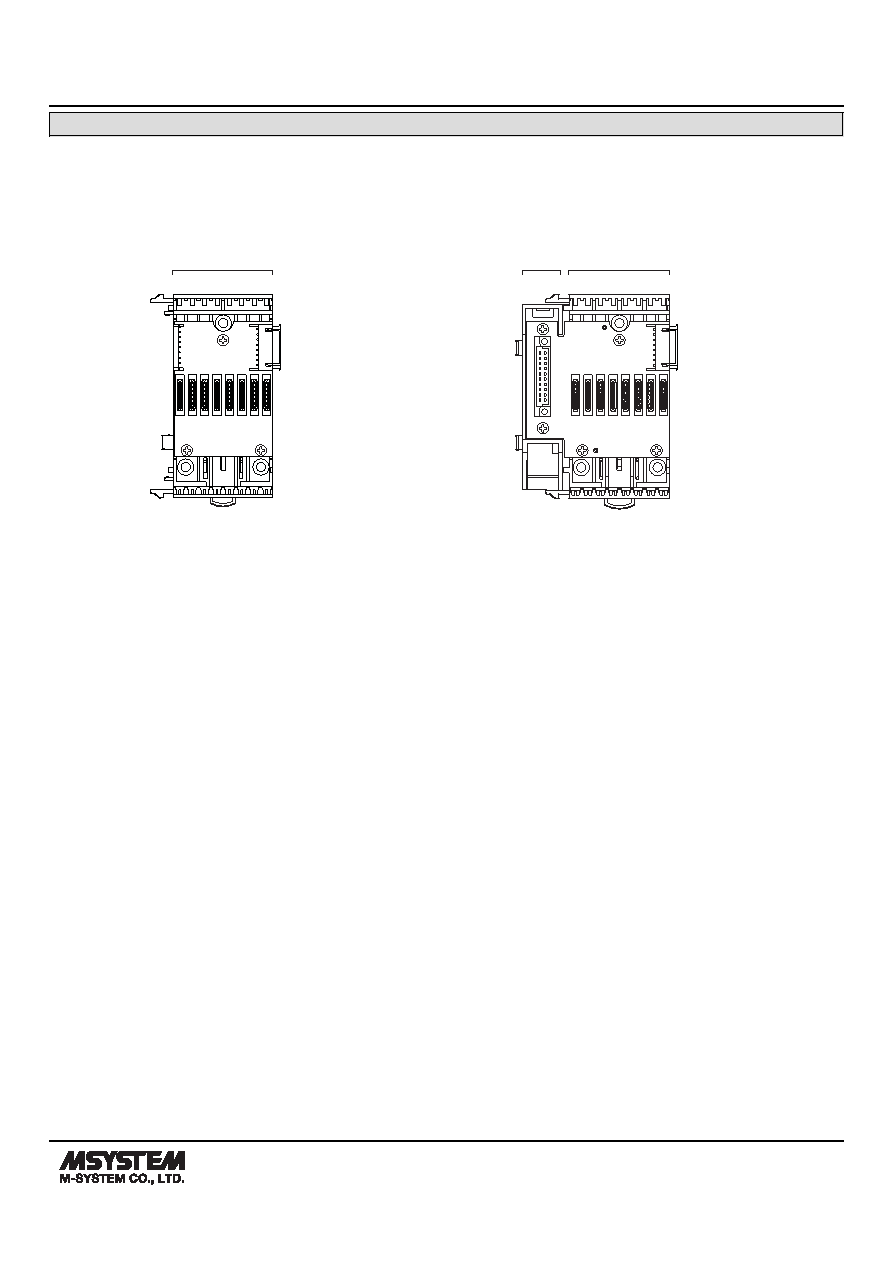

EXTERNAL VIEW

Install signal conditioners from the slot at either end.

Power Supply Modules (M6SPS1 or M6SPS2) could be mounted at any slots, however,

installing them at either end is generally recommended.

Mount the power supply module (M6-PSM) on the power module slot of M6SBS-08A.

1

Power Supply

Module

Signal

Conditioner

2

8

■ M6SBS-08A

1 2

• • • •

8

■ M6SBS-08, M6SBS-08P

Signal Conditioner or

Power Supply Module

• • • •
