MODEL: M5CTC

M5CTC SPECIFICATIONS

ES-2486 Rev.6 Page 4/5

http://www.m-system.co.jp/

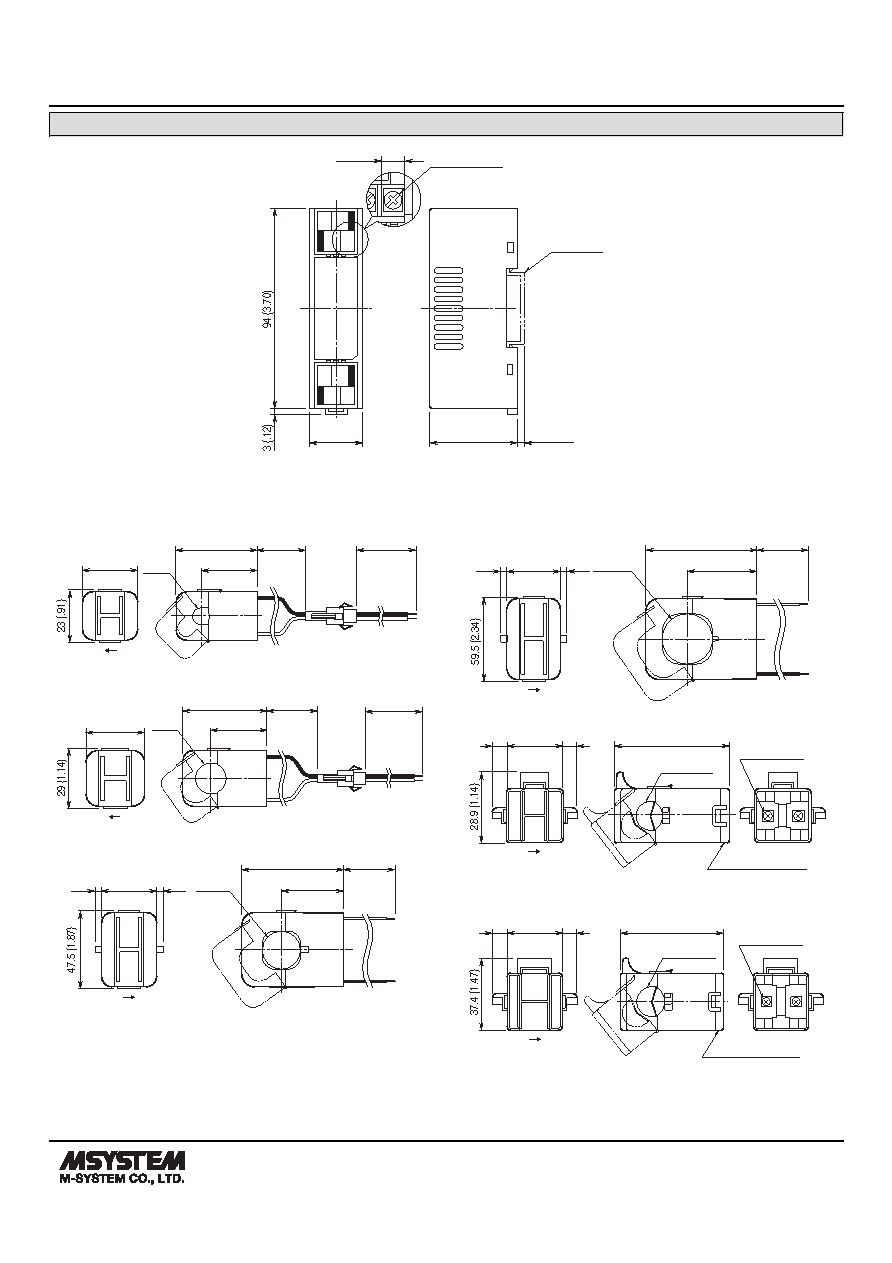

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

25 (.98)

41 (1.61)

[3.3 (.13)]

• When mounting, no extra space is needed between units.

DIN RAIL

35mm wide

8–M3.5 SCREW

7.3 (.29)

1 2

3 4

5 6

7 8

■ Sensor model No.: CLSA-08

10 (.39)

dia.

41 (1.61)

27 (1.05)

26 (1.02)

150 (5.91)

3000 (118)

■ Sensor model No.: CLSA-12

16 (.63)

dia.

44.5 (1.75)

30 (1.18)

31 (1.22)

150 (5.91)

3000 (118)

■ Sensor model No.: CLSA-30

24 (.94)

dia.

64 (2.52)

40 (1.57)

34 (1.34)

200 (7.87)

(.16)

■ Sensor model No.: CLSA-50

36 (1.41)

dia.

80 (3.15)

50 (1.97)

38 (1.50)

(.16)

200 (7.87)

■ Sensor model No.: CLSB-05

26.3 (1.04)

8.6

(.34)

8.6

(.34)

48 (1.89)

10 dia. (.39)

2–M3 SCREW

TERMINAL COVER

(detachable)

■ Sensor model No.: CLSB-10

30.5 (1.20)

7.5

(.30)

7.5

(.30)

53.7 (2.11)

16 dia. (.63)

2–M3 SCREW

TERMINAL COVER

(detachable)
