PL123-05/-09

Low Skew Zero Delay Buffer

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944 -0800 • fax +1(408) 474-1000 • www.micrel.com Rev 4/22/13

Page 1

FEATURES

 Frequency Range 10MHz to 134 MHz

 Output Options:

o

5 outputs PL123-05

o

9 outputs PL123-09

 Zero input - output delay

 Optional Drive Strength:

Standard (8mA) PL123-05/-09

High (12mA)

PL123-05H/-09H

 3.3V, ±10% operation

 Available in Commercial and Industrial temperature

ranges

 Available in 16-Pin SOP or TSSOP (PL123-09),

and 8-Pin SOP (PL123-05) packages

DESCRIPTION

The PL123-05/-09 (-05H/-09H for High Drive) are high

performance, low skew, low jitter zero delay buffers

designed to distribute high speed clocks. They have

one (PL123-05) or two (PL123-09) low-skew output

banks, of 4 outputs each, that are synchronized with

the input. The PL123-09 allows control of the banks of

outputs by using the S1 and S2 inputs as shown in the

Selector Definition table on page 2.

The synchronization is established via CLKOUT feed

back to the input of the PLL. Since the skew between

the input and output is less than

100ps, the device

acts as a zero delay buffer. The input output propaga-

tion delay can be advanced or delayed by adjusting the

load on the CLKOUT pin.

These parts are not intended for 5V input-tolerant ap-

plications.

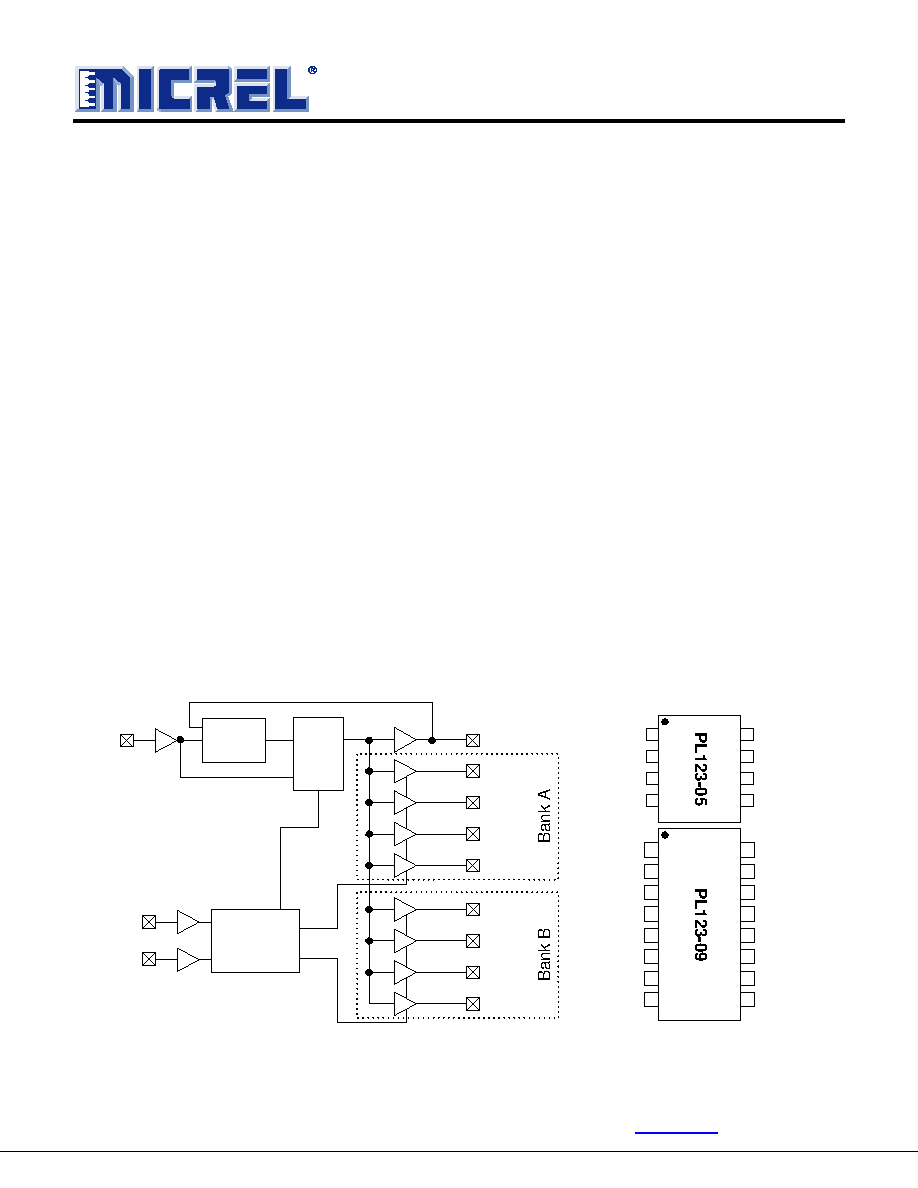

BLOCK DIAGRAM

PLL

REF

CLKOUT

CLKA1

CLKA2

CLKA3

CLKA4

Mux

CLKB1

CLKB2

CLKB3

CLKB4

S1

S2

1

REF

CLKA1

CLKA2

VDD

CLKOUT

CLKA4

CLKA3

VDD

GND

CLKB4

CLKB3

S1

10

11

12

13

14

15

16

9

8

7

6

5

4

3

2

S2

CLKB2

CLKB1

GND

Selector

Inputs

(PL123-09 Only)

1

2

3

4

REF

5

6

7

8

CLKA2

CLKA1

GND

CLKOUT

CLKA4

VDD

CLKA3
