VS6590

2/3

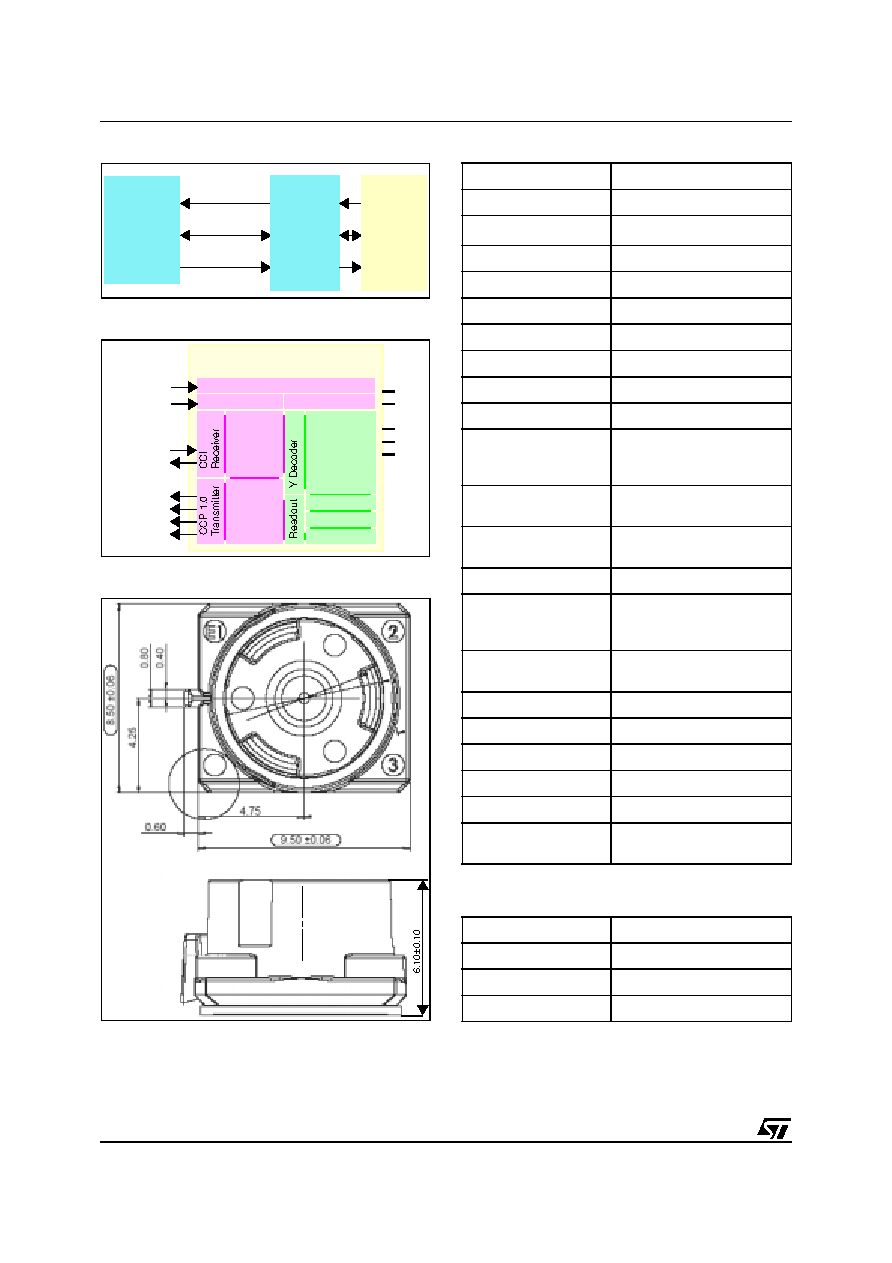

Figure 1. VS6590 Application Diagram

Figure 2. VS6590 Block Diagram

Figure 3. VS6590 Outline Drawing

Table 2. Technical Specifications

Table 3. Temperature Range

EXTCLK

XSHUTDOWN

CCP 1.0

CCI

STV0976

Mobile

Imaging

DSP

(optional)

Baseband

Application

Processor

0.5 Megapixel

VS6590

SMIA

Camera

Module

SCL

SDA

EXTCLK

XSHUTDOWN

CLKP

CLKN

DATAP

DATAN

VANA

AGND

VDIG

DGND

VCAP

1152 x 864

808 x 608

Column ADC

X Decoder

Line SRAM

SMIA

Profile 0

Frame

Formatter

Sensor

Control

Registers

PLL and Clock Management

Power Mgmt

Power-On Reset

Pixel array

VS6590

Active pixels

800H x 600V

Pixel size

4.0 x 4.0 µm

Array size

3.232 x 2.432 mm2

Color filter array

RGB Bayer

Exposure control

+120 dB

Analog gain

+24 dB (max)

Dynamic range

61 dB (typical)

Signal-to-noise Ratio

35 dB at 100 lux

Frame rate

1 to 30 Hz (800H x 600V)

Pixel format

Raw Bayer 10-bit

Video Interface

CCP 1.0 High-speed serial

208Mbit/s

1.8 V LVDS

Clock input

6.5 to 27 MHz square

13 MHz typ. (on-chip PLL)

Supply voltage

2.4 to 2.9 V analog

1.8 V ± 0.1 V digital

I/O voltage

1.8 V CMOS levels

Power consumption

Streaming 30fps: 75mW

max

Power down: 15 µW max.

Lens

2-element, 44.5° HFOV, F#

2.8

Depth of field

50 cm to infinite

TV distortion

< |2%|

Relative illumination

37% typ.

Package type

SmOP2M

Package size

8.5 x 9.5 x 7.6 mm (wlh)

System attach

16-pin SMD socket with

EMC shield

Storage

-40 to +85 °C

Functional operating

-30 to +70 °C

Normal operating

-25 to +55 °C

Optimal operating

+5 to +30 °C
