MODEL: 10JR

http://www.m-system.co.jp/

10JR SPECIFICATIONS

ES-0864 Rev.9 Page 1/3

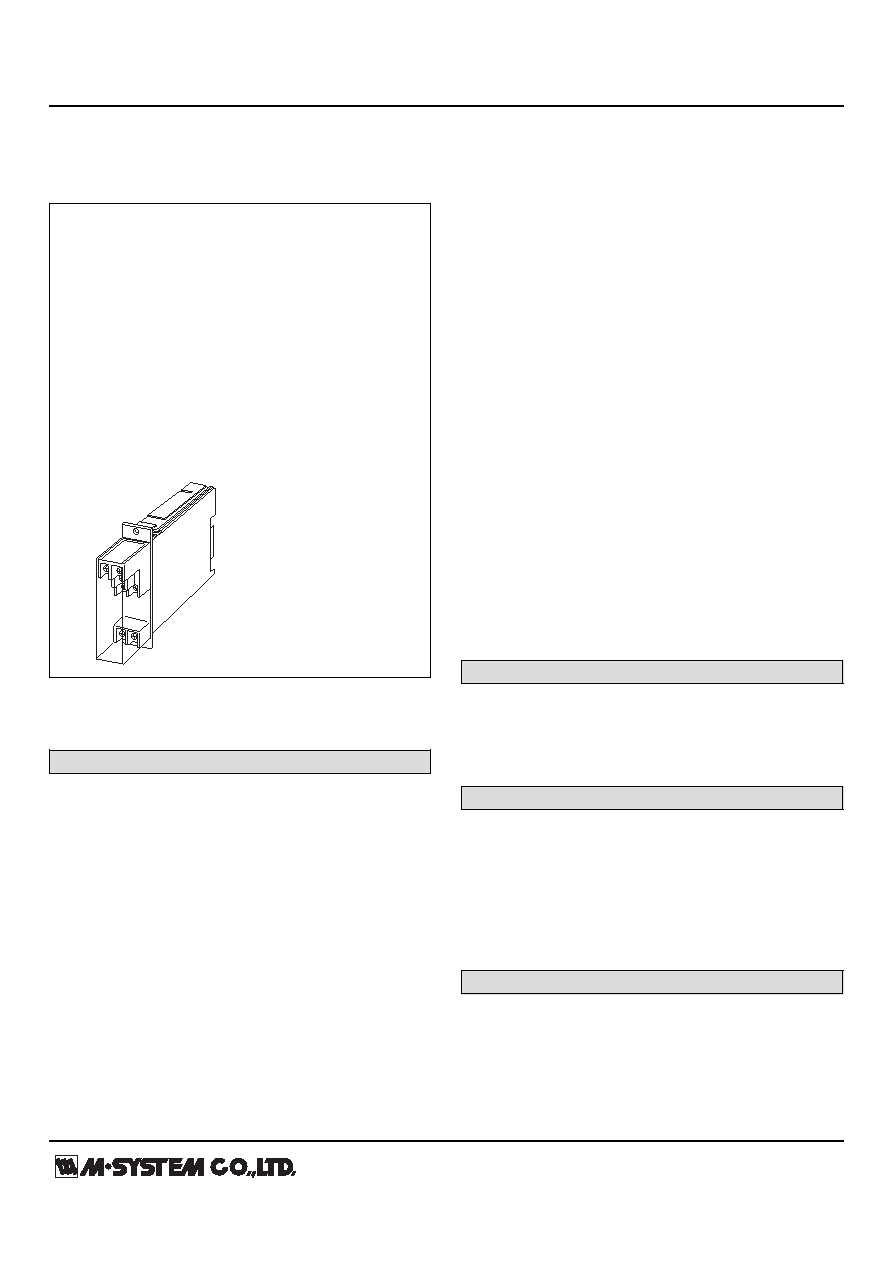

High-density Signal Conditioners 10-RACK

RTD TRANSMITTER

(field-programmable)

Functions & Features

• Accepting direct input from an RTD and providing two

standard process signals

• Micro-processor based

• Field-programmable temperature range

• Linearization

• Burnout protection

• Loop testing via hand-held programmer PU-2x

• Optional second channel output available at the front

terminals and at the Standard Rack connector

Typical Applications

• Ideal for quick spare part

MODEL: 10JR-[1][2][3]-R[4]

ORDERING INFORMATION

• Code number: 10JR-[1][2][3]-R[4]

Specify a code from below for each [1] through [4].

(e.g. 10JR-4A6-R/BL/Q)

• Temperature range (e.g. 0 – 500°C)

• Specify the specification for option code /Q

(e.g. /C01)

[1] INPUT RTD (2- or 3-wire)

1: JPt 100 (JIS'89)

(Usable range: -200 to +500°C, -328 to +932°F; min.span: 30°C, 54°F)

3: Pt 100 (JIS'89)

(Usable range: -200 to +650°C, -328 to +1202°F; min.span: 30°C, 54°F)

4: Pt 100 (JIS'97, IEC)

(Usable range: -200 to +650°C, -328 to +1202°F; min.span: 30°C, 54°F)

5: Pt 50 Ω (JIS'81)

(Usable range: -200 to +500°C, -328 to +932°F; min.span: 60°C, 108°F)

6: Ni 508.4 Ω

(Usable range: -50 to +200°C, -58 to +392°F; min.span: 20°C, 36°F)

0: Specify

Note: Consult M-System for 2-wire RTD

[2] OUTPUT 1

Current

A: 4 – 20 mA DC (Load resistance 600 Ω max.)

Voltage

6: 1 – 5 V DC (Load resistance 500 Ω min.)

[3] OUTPUT 2

0: None

Voltage

6: 1 – 5 V DC (Load resistance 5000 Ω min.)

POWER INPUT

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[4] OPTIONS (multiple selections)

Burnout

blank: Upscale burnout

/BL: Downscale burnout

blank: none

/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

/C03: Rubber coating

RELATED PRODUCTS

• Programming Unit (model: PU-2x)

• PC configurator software (model: JXCON)

Downloadable at M-System’s web site.

A dedicated cable is required to connect the module to the

PC. Please refer to the internet software download site or

the users manual for the PC configurator for applicable

cable types.

GENERAL SPECIFICATIONS

Construction: Rack-mounted; terminal access via screw

terminals at the front and via card-edge connector at the

rear; terminal cover provided

Connection

Input: M3.5 screw terminals (torque 0.8 N·m)

Output: Card-edge connector and M3.5 screw terminals

(torque 0.8 N·m)
