ADL8104
Data Sheet
Rev. 0 | Page 16 of 23
25
0
5
15
10
20
195
145
165
185
155
175
INPUT POWER (dBm)
–16
12
–12
4
–4
–8
8
0
POUT
GAIN
PAE
IDD

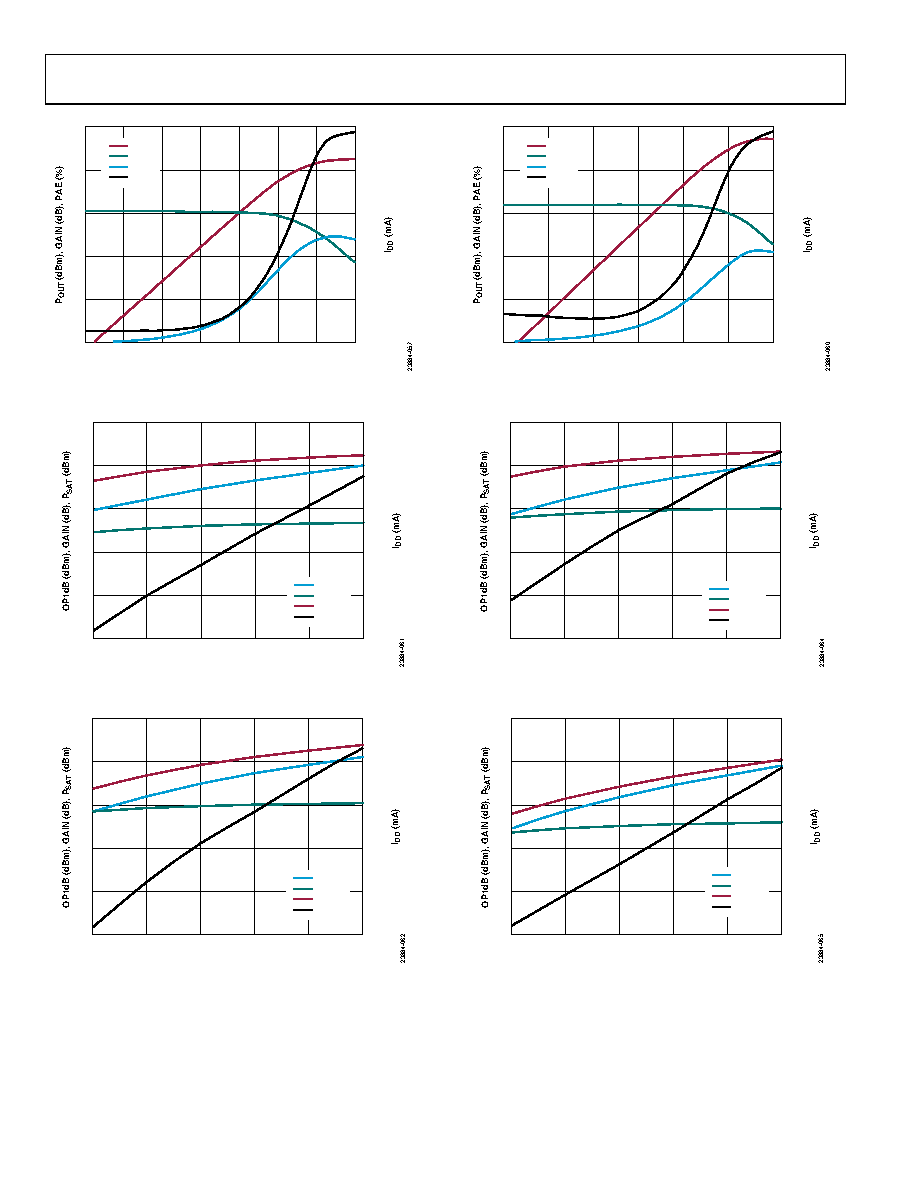

Figure 61. POUT, Gain, PAE, and IDD vs. Input Power,
Power Compression at 5 GHz, VDD = 5 V, RBIAS = 90.9 Ω
25
0
5
15
10
20
215
115
135
195
175
155
SUPPLY VOLTAGE (V)
3.0
5.5
3.5
4.5
4.0
5.0
OP1dB
GAIN
PSAT
IDD
Figure 62. OP1dB, Gain, PSAT, and IDD (Measured at PSAT) vs. Supply Voltage,
Power Compression at 0.4 GHz, RBIAS = 90.9 Ω
25
0
5
15
10
20
215
115
135
195
175
155
SUPPLY VOLTAGE (V)
3.0
5.5
3.5
4.5
4.0
5.0
OP1dB
GAIN
PSAT
IDD
Figure 63. OP1dB, Gain, PSAT, and IDD (Measured at PSAT) vs. Supply Voltage,
Power Compression at 5 GHz, RBIAS = 90.9 Ω
20
0
4
12
8
16
165
145
150
160
155
INPUT POWER (dBm)
–14
10
–10
6
–2
–6
2
POUT
GAIN
PAE
IDD
Figure 64. POUT, Gain, PAE, and IDD vs. Input Power,
Power Compression at 7 GHz, VDD = 5 V, RBIAS = 90.9 Ω
25
0
5
15
10
20
270
120
150
240
210
180
SUPPLY VOLTAGE (V)
3.0
5.5
3.5
4.5
4.0
5.0
OP1dB
GAIN
PSAT
IDD
Figure 65. OP1dB, Gain, PSAT, and IDD (Measured at PSAT) vs. Supply Voltage,
Power Compression at 2 GHz, RBIAS = 90.9 Ω
25
0
5
15
10
20
210
85
110
185
160
135
SUPPLY VOLTAGE (V)
3.0
5.5
3.5
4.5
4.0
5.0
OP1dB
GAIN
PSAT
IDD
Figure 66. OP1dB, Gain, PSAT, and IDD (Measured at PSAT) vs. Supply Voltage,
Power Compression at 7 GHz, RBIAS = 90.9 Ω
