PWM Protocol
The output has been designed as a two-wire current interface based on a Pulse Width Modulation principle.
Each zero crossing of the magnetic input signal triggers an output pulse indicated by IHigh and ILow current
consumption.
The PWM Protocol is available in two different protocol options: standard TLE5046iC-PWM2 and TLE5046iC-
PWM2E with indication of internal errors by using the warning pulse.
The timing characteristic for TLE5046iC-PWM2 and TLE5046iC-PWM2E is given in the table below:

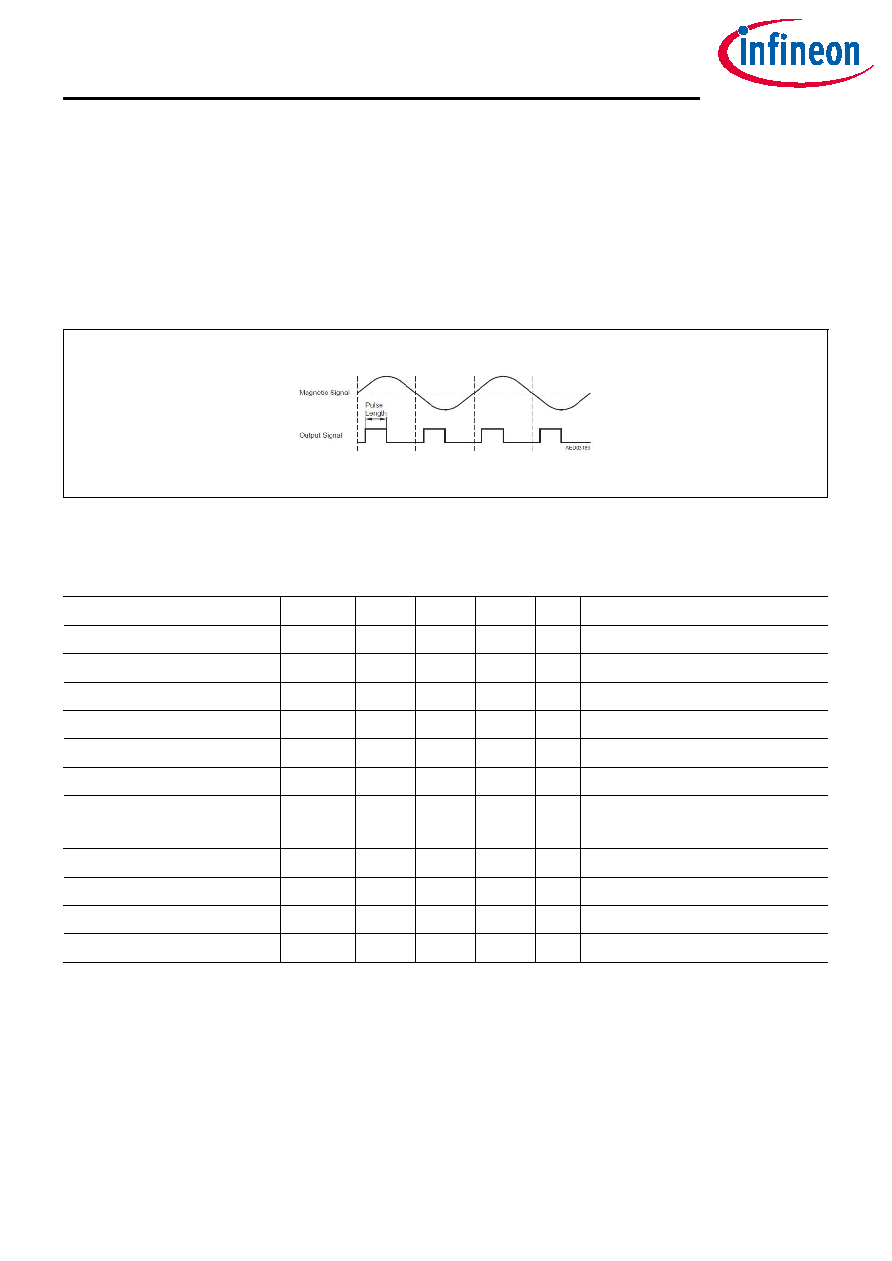

Figure 3
Signal output pulse
The timing characteristic for TLE5046iC-PWM2 and TLE5046iC-PWM2E is given in the table below:
Table 5
Parameter
Symbol Min.
Typ.
Max.
Unit Note / Test Condition
Pre-low length
tpre-low
38
45
52
µs
Length of Warning pulse
tWarning
38
45
52
µs
Length of DR-L pulse
tDR-L
76
90
104
µs
Length of DR-R pulse
tDR-R
153
180
207
µs
Length of DR-L & EL pulse
tDR-L&EL
306
360
414
µs
Length of DR-R & EL pulse
tDR-R&EL
616
720
828
µs
Output of EL pulse,
maximum frequency
fELmax
-
117
-
Hz
Length of stand still pulse
tStop
1.232
1.4
1.656
ms
Stand still period
TStop
590
737
848
ms
ΔBEL
ΔBEL
345
mT
4*ΔBlimit
ΔBWarning
ΔBWarning
160
mT
2*ΔBlimit
TLE5046iC
Technical product description
3 PWM Protocol
Technical Product Description
7
Revision 2.0
2020-06-30
