Product data sheet

Characteristics

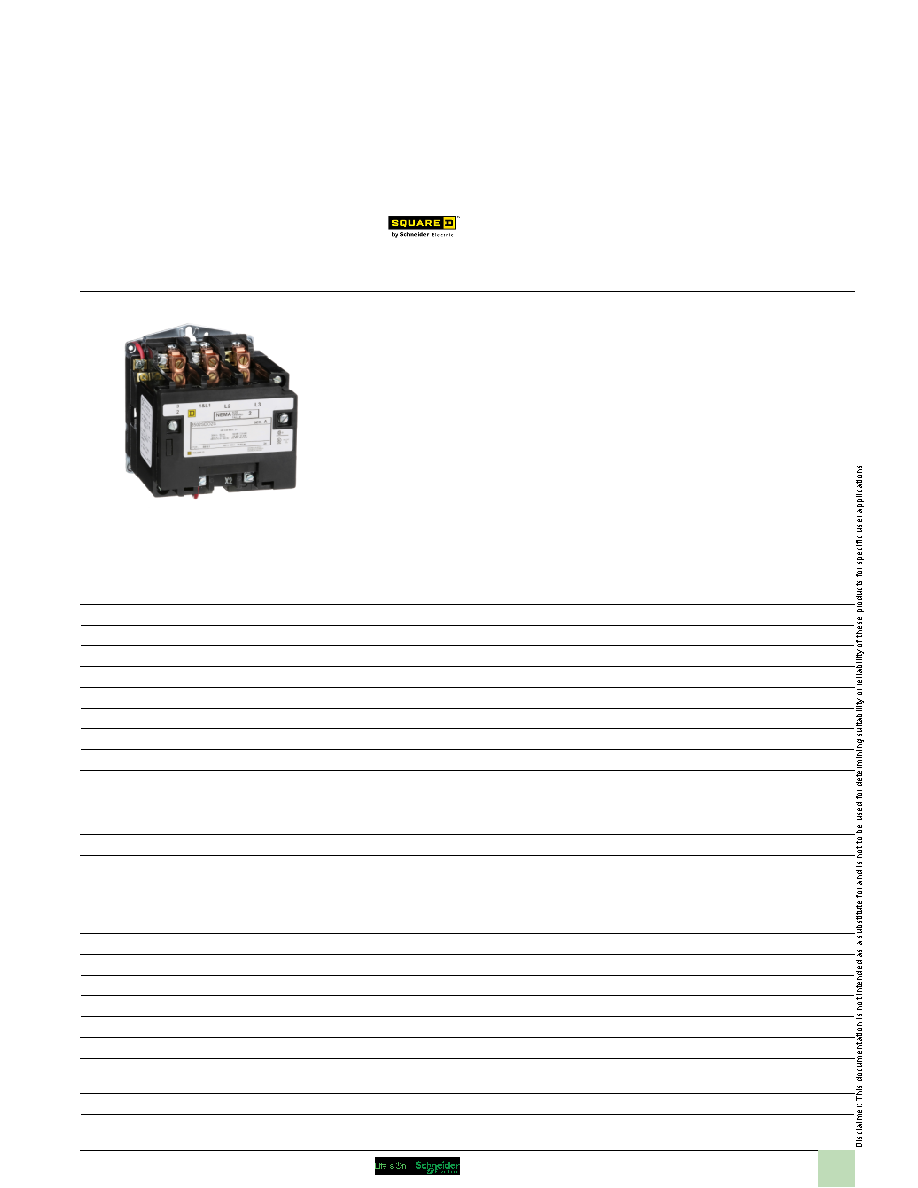

8502SDO2V01S

NEMA Contactor, Type S, nonreversing, Size 2,

45A, 25 HP at 575 VAC, 3 phase, up to 100 kA, 3

pole, 24 VAC coil, open

Product availability : Non-Stock - Not normally stocked in distribution facility

Main

Product Type

Contactor

Type

8502S

Control Circuit Type

Separate control circuit

Control Circuit Voltage

24 V AC 60 Hz

Contactor Type

Non-reversing

Current Rating

45 A

Number of Poles

3P

Phase

3 phase

Horsepower Rating

10 HP 200 V AC

15 HP 230 V AC

25 HP 460 V AC

25 HP 575 V AC

Maximum Voltage Rating

600 V AC

SCCR

Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC

Fuse J 100 A maximum, SCCR: 100 kA at 600 V AC

Fuse T 100 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC

Control Units

No control units

Pilot Light

No indicator

Auxiliary Contacts

Without

Control Circuit Fusing

Fuse not supplied

Electrical Connection

Screw clamp terminals

Enclosure Type

Not rated (open device)

Certifications

UL listed file E78351 CCN NLDX

CSA

NEMA Size

2



Dec 11, 2020

1
