HCMOS 2.5x2.0mm SMD Oscillator

O2HS

(former F200, F210, F230, F240 Series)

DATASHEET

7-27-2020 Updated Termination finish and MSL info

Title / Description: O2HS SERIES STANDARD SPECIFICATIONS

Drawing Number: O2HS-DOC-1

Revision: H

Part Number:

Cage: 61429

Draftsperson: BEC

Approved: MAJ

Revision Date:07/29/2020

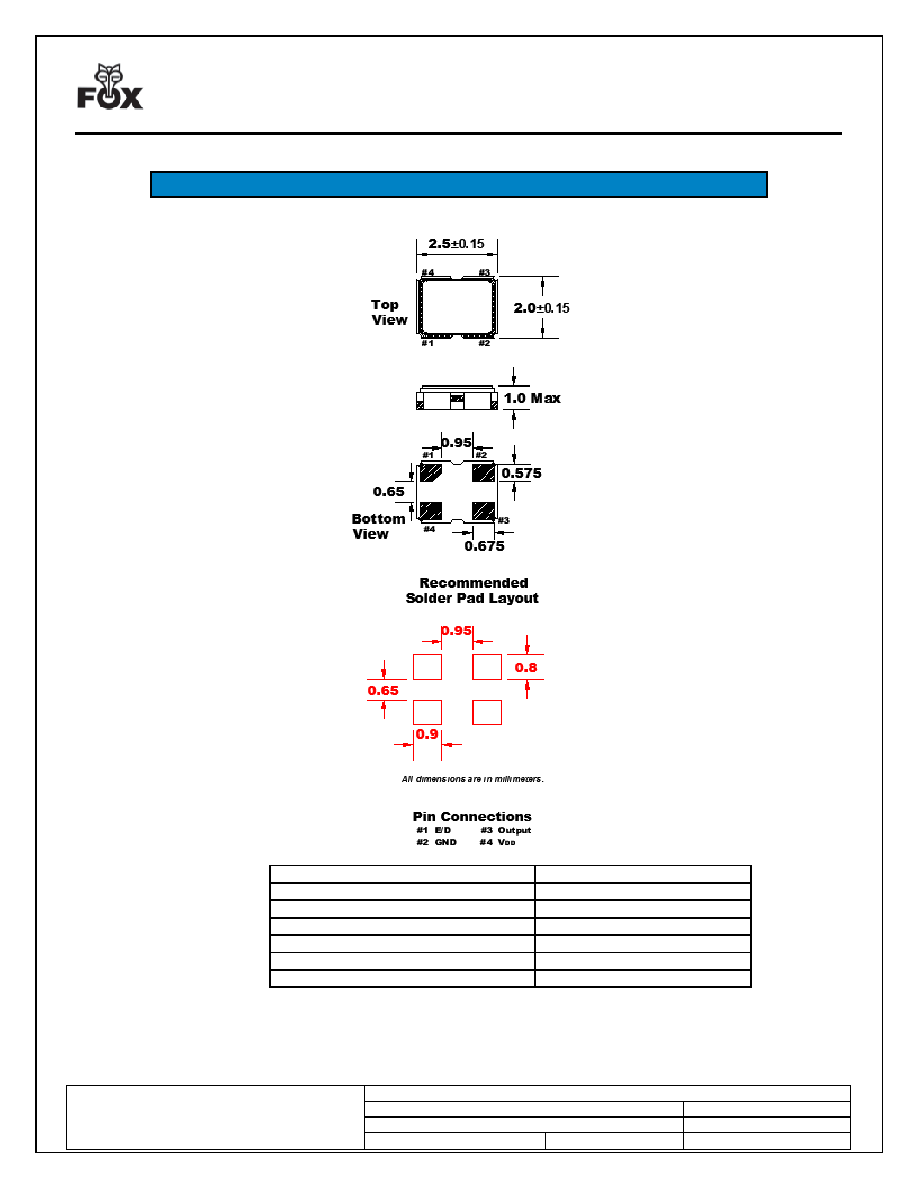

DIMENSIONS / MECHANICAL SPECIFICATIONS

Notes:

*A 0.01μF capacitor should be placed between VDD (Pin 4) and GND (Pin2) to minimize power supply line noise.

*Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per J-STD-033

N/A

Termination Finish

Au (0.3~1µm) over Ni (1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes
