551

CATALOG No. C1097B001 '20.1.IT

57±0.5

66±1

36±1

（39以下）

25±0.5

DINレール取付位置

(1.6)

80±0.5

70±0.3

4-ø3.5±0.3

裏面

側面

4-ø3.5±0.3

取付用穴

正面

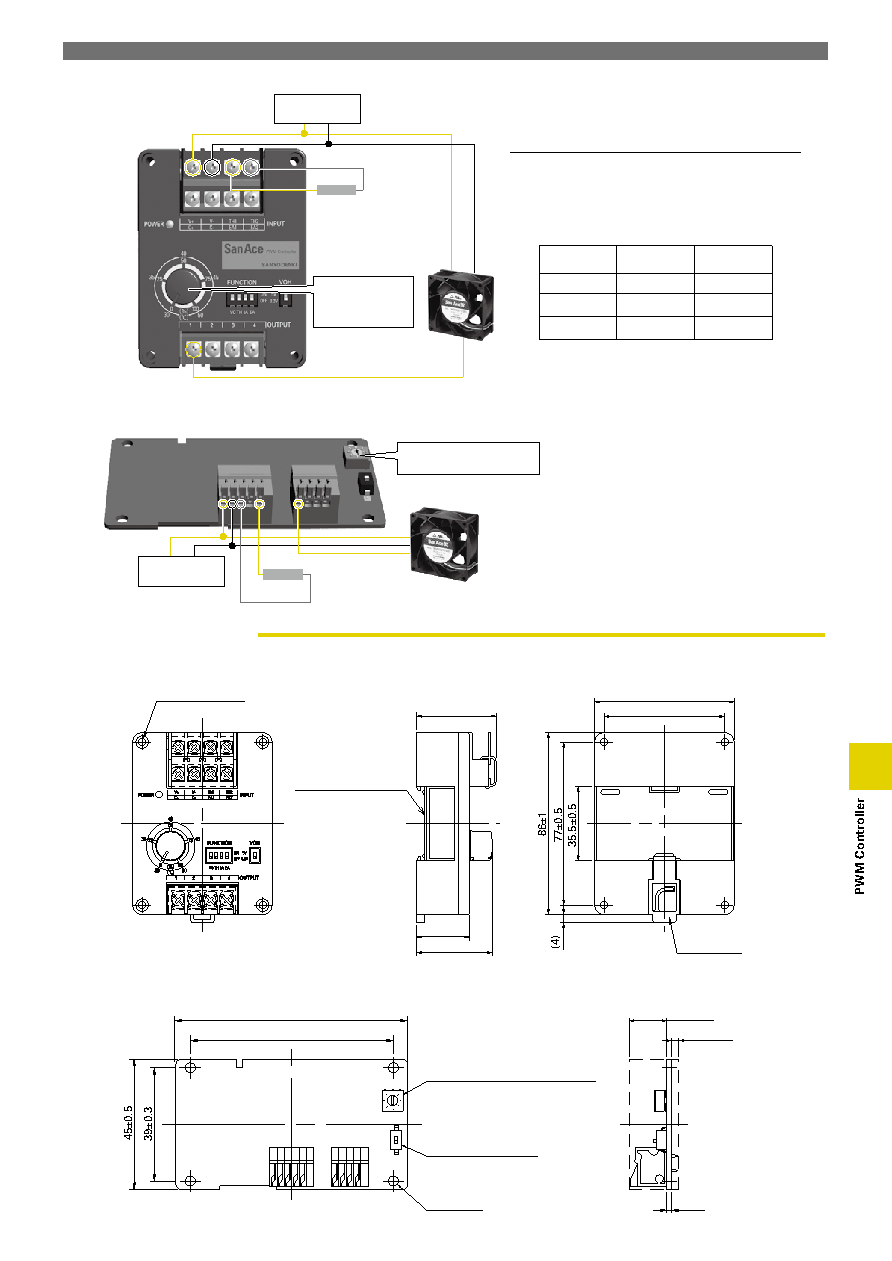

Automation control of output duty cycle in response to the temperature detected with an external thermistor.

• Box type

Thermistor control

Target temperature selected

with switch

Thermistor

DC power supply

+ GND

PWM signal

Target temperature

can be set with the

adjustment knob

(on the outer scale)

Thermistor

PWM signal

DC power supply

+ GND

Controlling Conditions

Temperature

conditions

TST ＜TTH

TST ＞TTH

TST ～TTH

Duty cycle

Increases

Decreases

Maintained

Fan rotational speed

(For reference)

Increases

Decreases

Maintained

～

TST: Temperature set with the adjustment knob (30 to 50°C)

TTH: Temperature detected with thermistor

Recommended thermistor conditions

Type: NTC

R25 (Resistance at 25°C): 10 k

B value: B25/85 = 3435 K

• PCB type (Model no.: 9PC8045D-T001)

■ Dimensions (unit: mm)

• Box type

• PCB type

Front view

Side view

Back view

Side view

Front view

(39 max.)

Mounting hole

DIN rail base section

DIN rail clip

13 max.

Temperature setting

selector switch

(Only for model no.: 9PC8045D-T001)

PWM output voltage

VOH selector switch

2.5 max.
