cPCI-3511(BL) Series

Specifications

Processor & System

CPU

boost up to 3.4GHz), 6M Cache, 47/37W by cTDP

(cPCI-3511BL only)

boost up to 3.4GHz), 6M Cache, 47/37W by cTDP

boost up to 2.7GHz), 3M Cache, 25W

Technology, VT-x, VT-D, vPro Technology

Chipset

Memory

DDR3L-1333 SDRAM ECC soldered, up to 16GB (cPCI-3511BL)

DDR3L-1600 SDRAM ECC soldered, up to 8GB (cPCI-3511)

BIOS

AMI EFI BIOS, 64Mbit SPI Flash memory

CompactPCI Bus

PCI 32bit, 33/66 MHz, 3.3V or 5V universal V (I/O)

Supports operation in system slot as master or in

peripheral slot as stand-alone blade without connectivity to

PICMG Standards

PICMG 2.0 CompactPCI R3.0

PICMG 2.1 Hot Swap R2.0

PICMG 2.9 System Management (R1.0)

PICMG 2.30 CompactPCI PlusIO

Connectivity

PMC/XMC

Optional PCI 64bit/66MHz PMC site or PCIe x1 XMC site

Ethernet

panel port and two rear ports

Ethernet front panel ports on riser card (cPCI-3511L only)

Graphics

One DVI-I (digital+analog) port on front panel, analog

switchable to rear, supports up to QXGA 2048x1536 pixels

@75Hz, 32-bits

Two DisplayPorts on riser card, support up to 2560×1440

pixels @60Hz, DVI, VGA and HDMI interfaces are available by

adapter cables (cPCI-3511(BL)G only)

Three independent displays with different /contents

USB

Single USB 3.0 port on front panel, and up to three USB

ports on front panel on selected SKUs

Three USB ports to rear, two on RTM panel

Audio

Line-in and Line-out ports on front panel (cPCI-3511(BL)D only)

PS/2

Keyboard/Mouse on cPCI-3511(BL)D and cPCI-3511(BL)G

Serial Port

Up to four serial ports

One RS-232/422/485 selectable port on front panel

One RS-232/422/485 10-pin header on riser card

(cPCI-3511(BL)G only)

Two serial ports on rear panel: one with Tx/Rx signal only,

one converted from USB signal

Storage

Blade

One SATA 6 Gb/s direct connector for 2.5” onboard HDD

(8HP version only)

CFast socket or mSATA socket

Optional onboard 32GB SSD (by replacing CFast adapter board)

RTM

Three 7-pin SATA signal connectors

Supports SATA RAID 0/1/5/10

Operating System

OS

Microsoft Windows 7/8, 32/64-bit

Red Hat Enterprise Linux 6.4

Fedora 18

Wind River VxWorks 6.9, 32/64-bit

(Please contact ADLINK for other OS support)

Miscellaneous

LEDs

Power, WDT, Storage Drive, Overheat, General Purpose

Battery

Coin cell lithium battery onboard for RTC

CMOS RAM for BIOS configuration

Watchdog Timer

System Reset and NMI, with Programmable Interval, 1-65535

sec or 1-65535 minutes

Hardware Monitor

Monitors CPU temperature, system temperature and DC

voltages by IPMI

TPM

Atmel TPM AT97SC3204 (optional support upon request)

Mechanical & Environmental

Form Factor

3U 4HP/8HP CompactPCI equipped with HM J1 and UHM J2

connector

100mm x 160mm (L x W)

Operating Temperature -20°C to +70°C (Core™ i7-4700EQ and i7-5700EQ 47W)

-40°C to +85°C (Core™ i5-4402E, i7-4700EQ and i7-5700EQ

Storage Temperature

-50°C to +100°C

RH Humidity

95% non-condensing

Shock

20g peak-to-peak, 11ms duration, non-operating

Vibration

2g random vibration, 5 to 500Hz in 3 axes, operating

Weight

Net weight 713.55g (cPCI-3511(BL)D with heatsink)

Net weight 718.20g (cPCI-3511(BL)G with heatsink)

Certifications

CE/ FCC

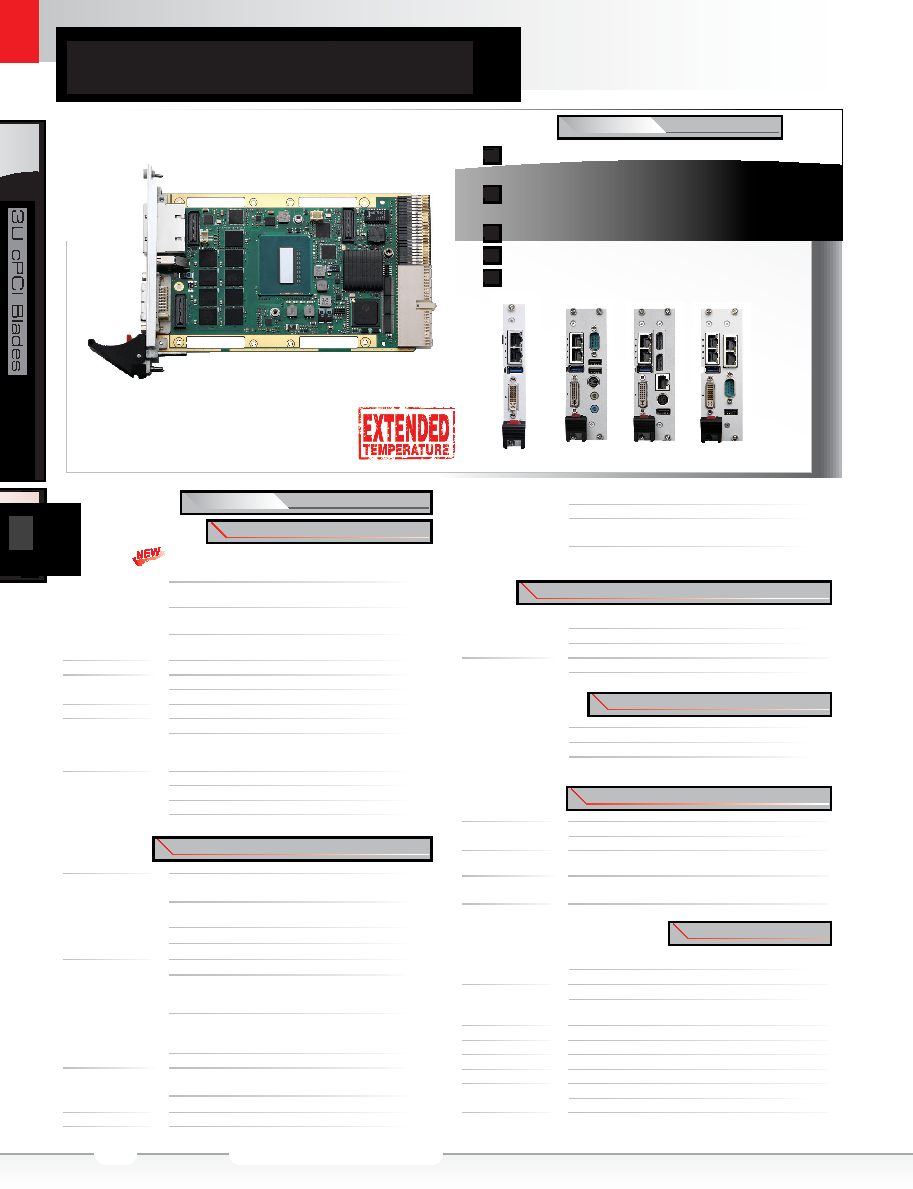

3U CompactPCI PlusIO 4th/5th Generation

Features

processor

Up to 8GB DDR3L ECC soldered memory

onboard (up to 16GB for cPCI-3511BL)

System/Peripheral slot operation

PICMG 2.30 CompactPCI PlusIO compliant

cPCI-3511(BL)

cPCI-3511(BL)G

cPCI-3511(BL)D

cPCI-3511L
