This is information on a product in full production.

December 2017

DocID031065 Rev 2

1/29

STSPIN820

Advanced 256 microsteps integrated motor driver with

step-clock and direction interface

Datasheet

- production data

Features

 Operating voltage from 7 to 45 V

 Maximum output current 1.5 Arms

 RDSon HS + LS = 1 Ω typ.

 Microstepping up to 1/256th of step

 Current control with programmable OFF time

 Current sensing based on external shunt

resistor

 Full protection set

 Non-dissipative overcurrent protection

 Short-circuit protection

 Undervoltage lockout

 Thermal shutdown

 Standby low consumption

Applications

 3D printers

 Medical equipment

 Industrial 2D printers

 Textile and sewing machines

 CCTV, security and dome cameras

 ATM and cash handling machines

 Office and home automation

 POS

 Robotics

Description

The STSPIN820 is a stepper motor driver which

integrates, in a small QFN 4 x 4 mm package,

both control logic and a low RDSon power stage.

The integrated controller implements a PWM

current control with fixed OFF time and a

microstepping resolution up to 1/256th of the step.

The device can be forced into a low consumption

state.

The device offers a complete set of protection

features including overcurrent, overtemperature

and short-circuit protection.

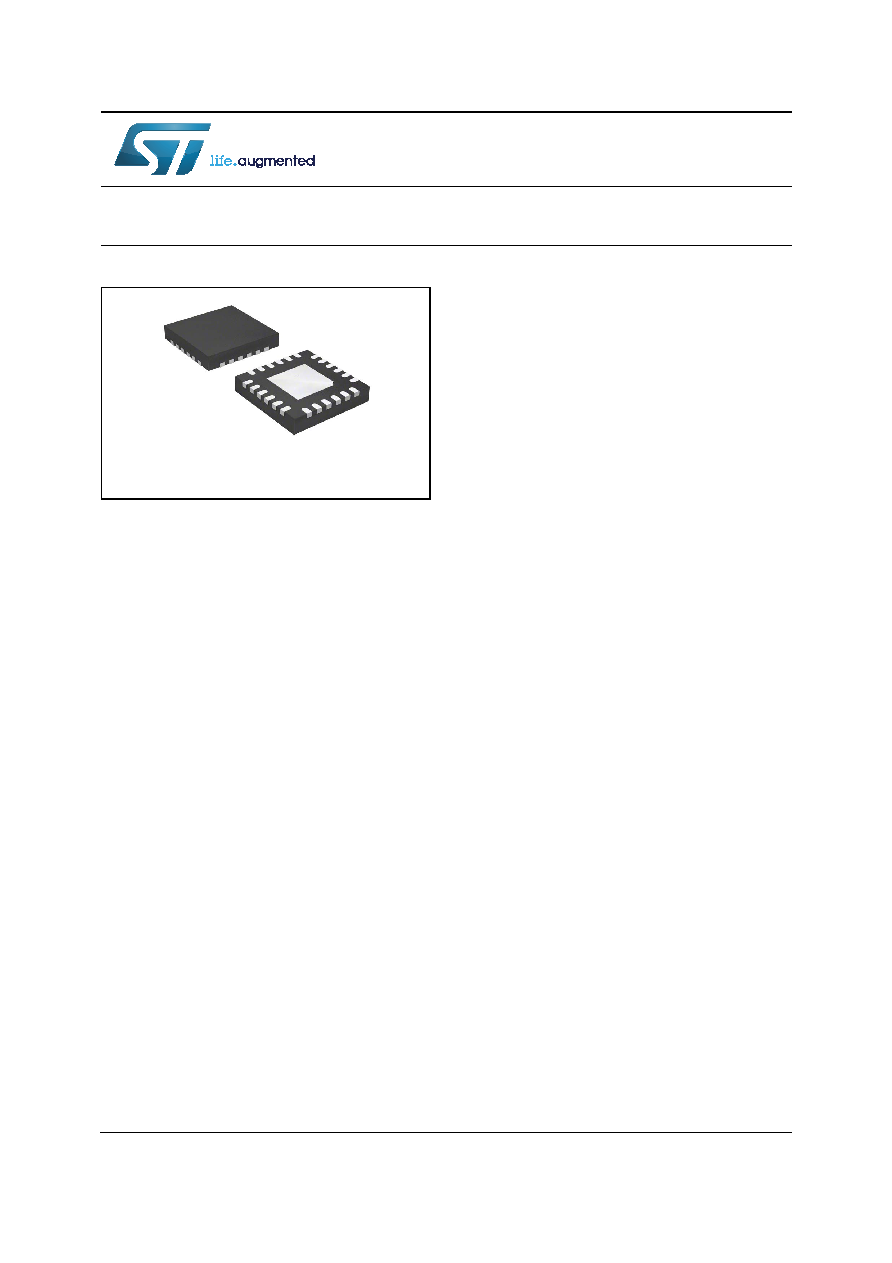

QFN 4 x 4 - 24 lead

www.st.com
