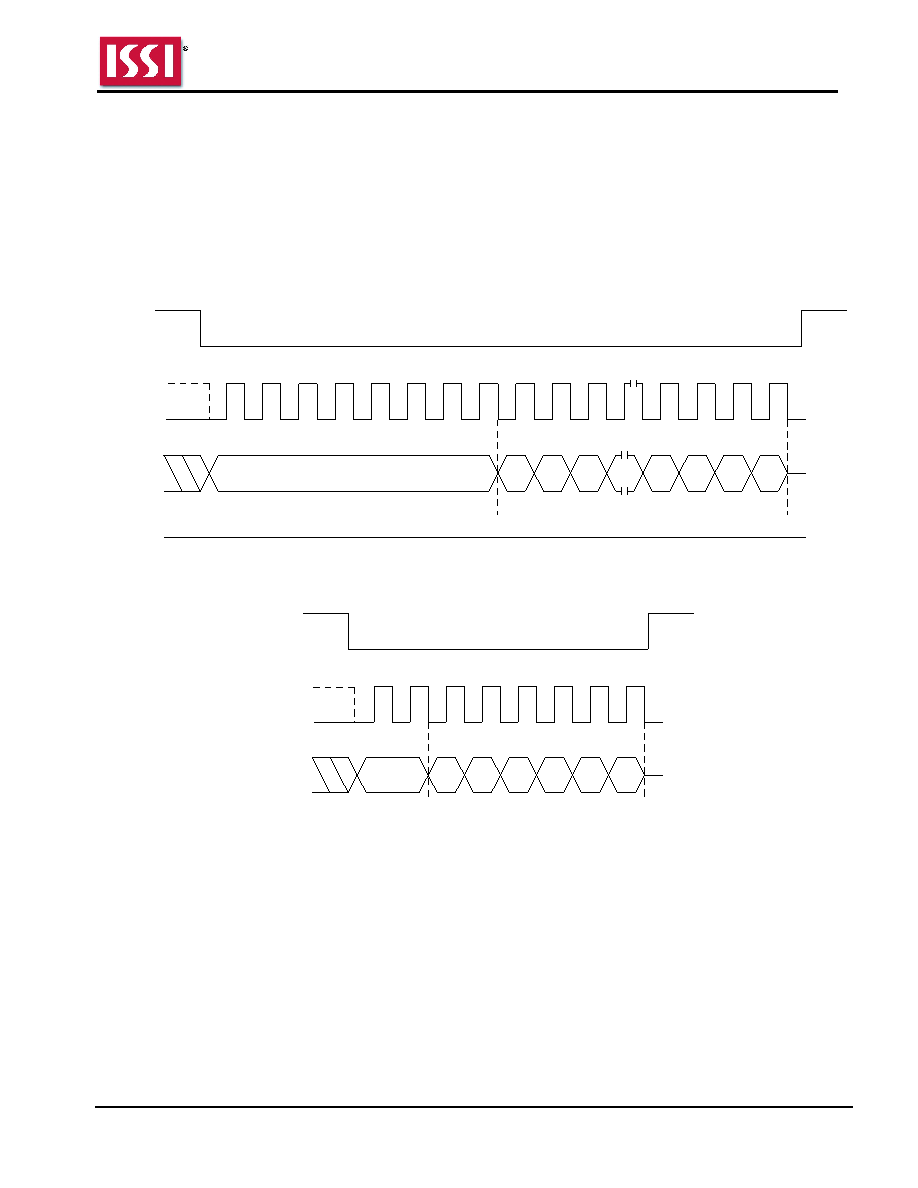

53 / 118 page ![]() IS25LP032D IS25WP032D Integrated Silicon Solution, Inc.- www.issi.com 53 Rev. A12 08/04/2020 8.12 BLOCK ERASE OPERATION (BER32K:52h, BER64K:D8h) A Block Erase (BER) instruction erases a 32/64Kbyte block. Before the execution of a BER instruction, the Write Enable Latch (WEL) must be set via a Write Enable (WREN) instruction. The WEL is reset automatically after the completion of a block erase operation. The BER instruction code and three address bytes are input via SI. Erase operation will start immediately after the CE# is pulled high, otherwise the BER instruction will not be executed. The internal control logic automatically handles the erase voltage and timing. Figure 8.16 Block Erase (64K) Sequence In SPI Mode Instruction = D8h 23 CE # SCK SI 3 2 SO 1 0 3-byte Address High Impedance 22 21 ... 0 1 2 3 4 5 6 7 8 9 10 ... 28 29 30 31 Mode 3 Mode 0 Figure 8.17 Block Erase (64K) Sequence In QPI Mode D8h CE# SCK IO[3:0] 3-byte Address 0 1 2 3 4 5 6 7 Mode 3 Mode 0 23:20 19:16 15:12 11:8 7:4 3:0 |
|
