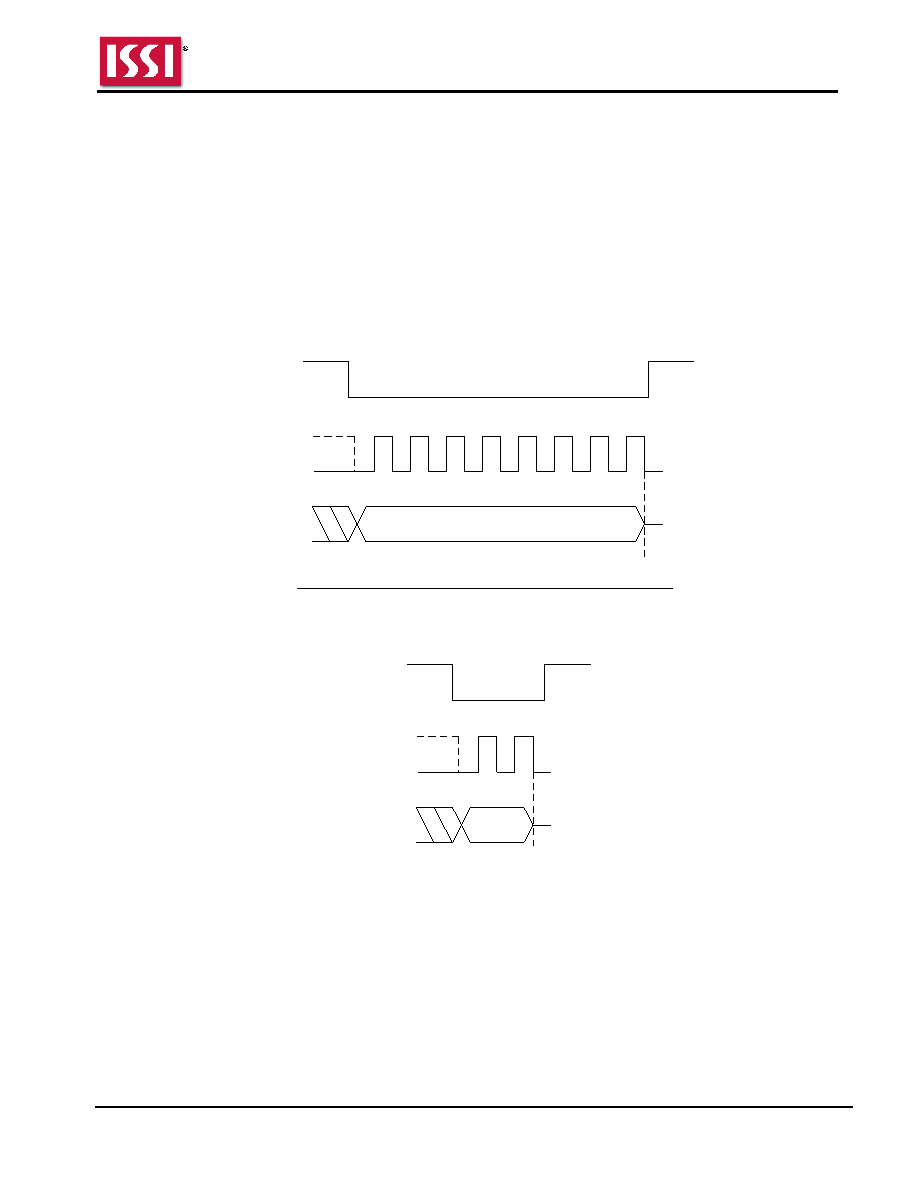

55 / 118 page ![]() IS25LP032D IS25WP032D Integrated Silicon Solution, Inc.- www.issi.com 55 Rev. A12 08/04/2020 8.13 CHIP ERASE OPERATION (CER, C7h/60h) A Chip Erase (CER) instruction erases the entire memory array. Before the execution of CER instruction, the Write Enable Latch (WEL) must be set via a Write Enable (WREN) instruction. The WEL is automatically reset after completion of a chip erase operation. The CER instruction code is input via the SI. Erase operation will start immediately after CE# is pulled high, otherwise the CER instruction will not be executed. The internal control logic automatically handles the erase voltage and timing. Chip Erase (CER) instruction can be executed only when Block Protection (BP3~BP0) bits are set to 0s. If the BP bits are not 0, the CER command is not executed and E_ERR and PROT_E are set. Figure 8.20 Chip Erase Sequence In SPI Mode Instruction = C7h/60h CE# SCK SI 0 1 2 3 4 5 6 7 Mode 3 Mode 0 SO High Impedance Figure 8.21 Chip Erase Sequence In QPI Mode C7h/60h CE# SCK IO[3:0] 0 1 Mode 3 Mode 0 |
|
