SM-T2/SM-R2

REMOTE CONTROLLER

WITH FIVE FUNCTION

Page 1

V2.0 Mar 8,2002

GENERAL DESCRIPTION

The SM-T2 / SM-R2 is a pair of CMOS

chip, it was designed for remote controlled

car applications.

The SM-T2 / SM-R2 has five control keys

for controlling the motions ( i.e. forward,

backward rightward, leftward and the turbo

function ) of the remote controller car.

FEATURES

* Power supply : 2.4V - 5.0V

* Low stand-by current

* Five functions control

* Auto-power-off function for SM-T2

* Few external components are needed

APPLICATION

* Remote control car etc.

SAMHOP Microelectronics Corp.

三合微科股份有限公司

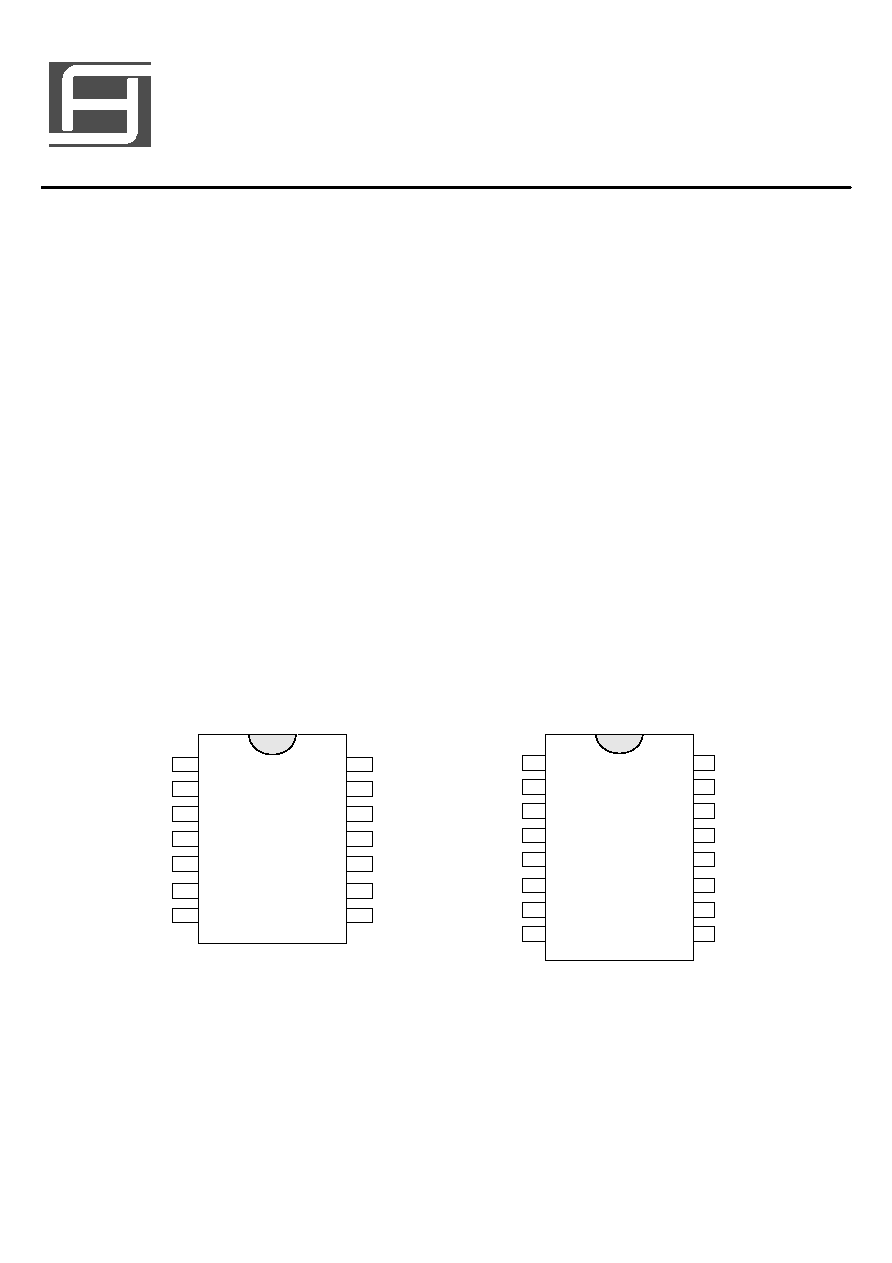

PIN ASSIGNMENTS (TOP VIEW)

VO2

GND

SI

OSCI

OSCO

RIGHT

LEFT

RDB

VI2

VO1

VI1

VDD

TURBO

FORWARD

BACKWARD

LDB

RIGHTB

NC

GND

BACKWARDB

FORWARDB

TURBOB

SC

LEFTB

NC

OSCI

OSCO

PC

VDD

SO

SM-T2

SM-R2

1

2

3

4

5

6

7

14

13

12

11

10

9

8

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9
