REF02

Rev. F | Page 13 of 16

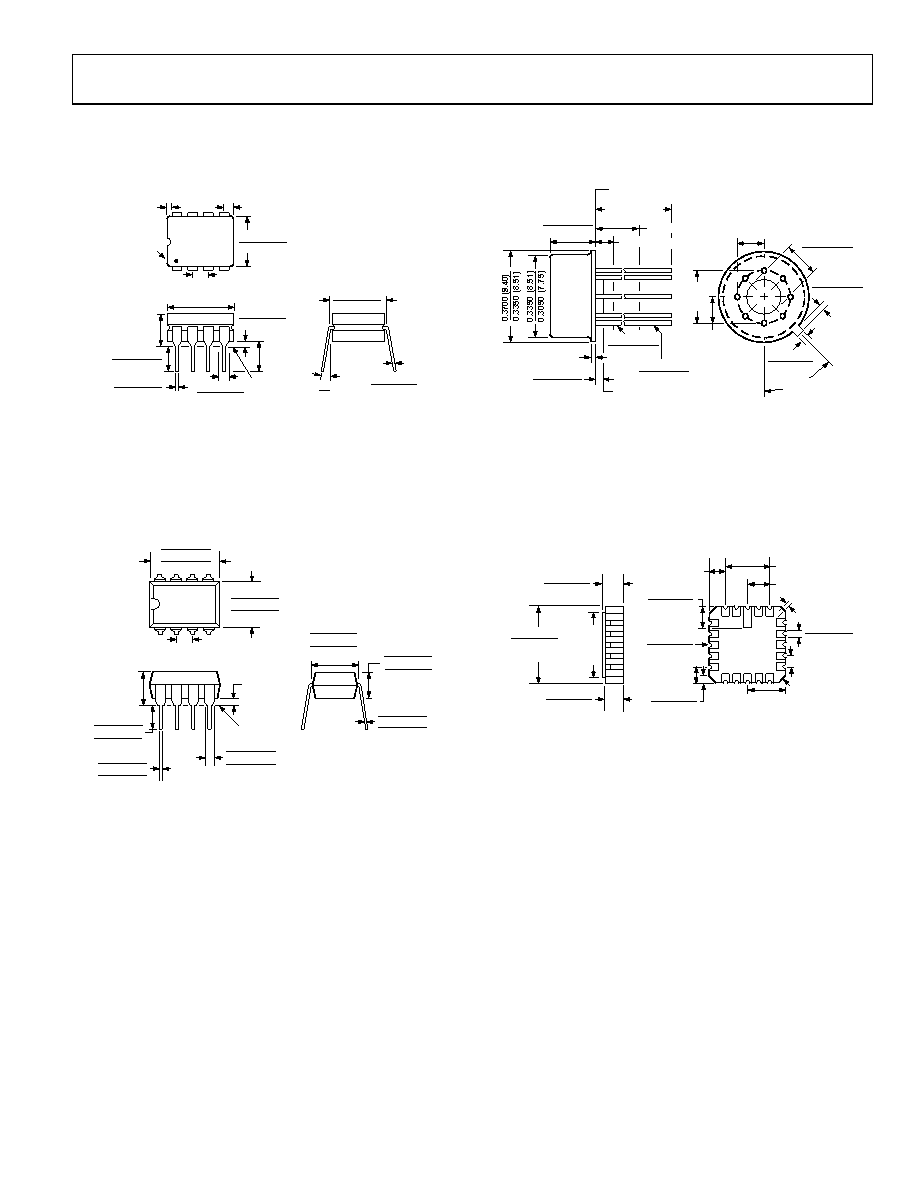

OUTLINE DIMENSIONS

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

0.310 (7.87)

0.220 (5.59)

PIN 1

0.005 (0.13)

MIN

0.055 (1.40)

MAX

0.100 (2.54) BSC

15°

0°

0.320 (8.13)

0.290 (7.37)

0.015 (0.38)

0.008 (0.20)

SEATING

PLANE

0.200 (5.08)

MAX

0.405 (10.29) MAX

0.150 (3.81)

MIN

0.200 (5.08)

0.125 (3.18)

0.023 (0.58)

0.014 (0.36)

0.070 (1.78)

0.030 (0.76)

0.060 (1.52)

0.015 (0.38)

0.2500 (6.35) MIN

0.5000 (12.70)

MIN

0.1850 (4.70)

0.1650 (4.19)

REFERENCE PLANE

0.0500 (1.27) MAX

0.0190 (0.48)

0.0160 (0.41)

0.0210 (0.53)

0.0160 (0.41)

0.0400 (1.02)

0.0100 (0.25)

0.0400 (1.02) MAX

BASE & SEATING PLANE

0.0340 (0.86)

0.0280 (0.71)

0.0450 (1.14)

0.0270 (0.69)

0.1600 (4.06)

0.1400 (3.56)

0.1000 (2.54)

BSC

0.2000

(5.08)

BSC

0.1000

(2.54)

BSC

45° BSC

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

COMPLIANT TO JEDEC STANDARDS MO-002AK

Figure 27. 8-Lead Ceramic Dual In-Line Package (CERDIP)

Z-Suffix

(Q-8)-

SEATING

PLANE

0.015

(0.38)

MIN

0.180

(4.57)

MAX

0.150 (3.81)

0.130 (3.30)

0.110 (2.79)

0.060 (1.52)

0.050 (1.27)

0.045 (1.14)

0.295 (7.49)

0.285 (7.24)

0.275 (6.98)

0.100 (2.54)

BSC

0.375 (9.53)

0.365 (9.27)

0.355 (9.02)

0.150 (3.81)

0.135 (3.43)

0.120 (3.05)

0.015 (0.38)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

COMPLIANT TO JEDEC STANDARDS MO-095AA

Figure 28. 8-Lead Plastic Dual In-Line Package (PDIP)

P-Suffix

(N-8)

Figure 29. 8-Lead Metal Can [TO-99]

J-Suffix

(H-08)

BOTTOM

VIEW

0.028 (0.71)

0.022 (0.56)

45° TYP

0.015 (0.38)

MIN

0.055 (1.40)

0.045 (1.14)

0.050 (1.27)

BSC

0.075 (1.91)

REF

0.011 (0.28)

0.007 (0.18)

R TYP

0.095 (2.41)

0.075 (1.90)

0.100 (2.54) REF

0.200 (5.08)

REF

0.150 (3.81)

BSC

0.075 (1.91)

REF

0.358 (9.09)

0.342 (8.69)

0.358

(9.09)

MAX

0.100 (2.54)

0.064 (1.63)

0.088 (2.24)

0.054 (1.37)

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

Figure 30. 20-Terminal Ceramic Leadless Chip Carrier (LCC)

RC-Suffix

(E-20A)
