SWI0805F-R33K datasheet(1/2 Pages) TAI-TECH

tên linh kiện	SWI0805F-R33K

Giải thích chi tiết về linh kiện	High Frequency Winding Type Chip Inductor

PDF	2 Pages

Scroll/Zoom	100%

nhà sản xuất	TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]

Trang chủ	https://www.tai-tech.com.tw/en/

Logo

1 / 2 page

TAI-TECH

www.tai-tech.com.tw

P2

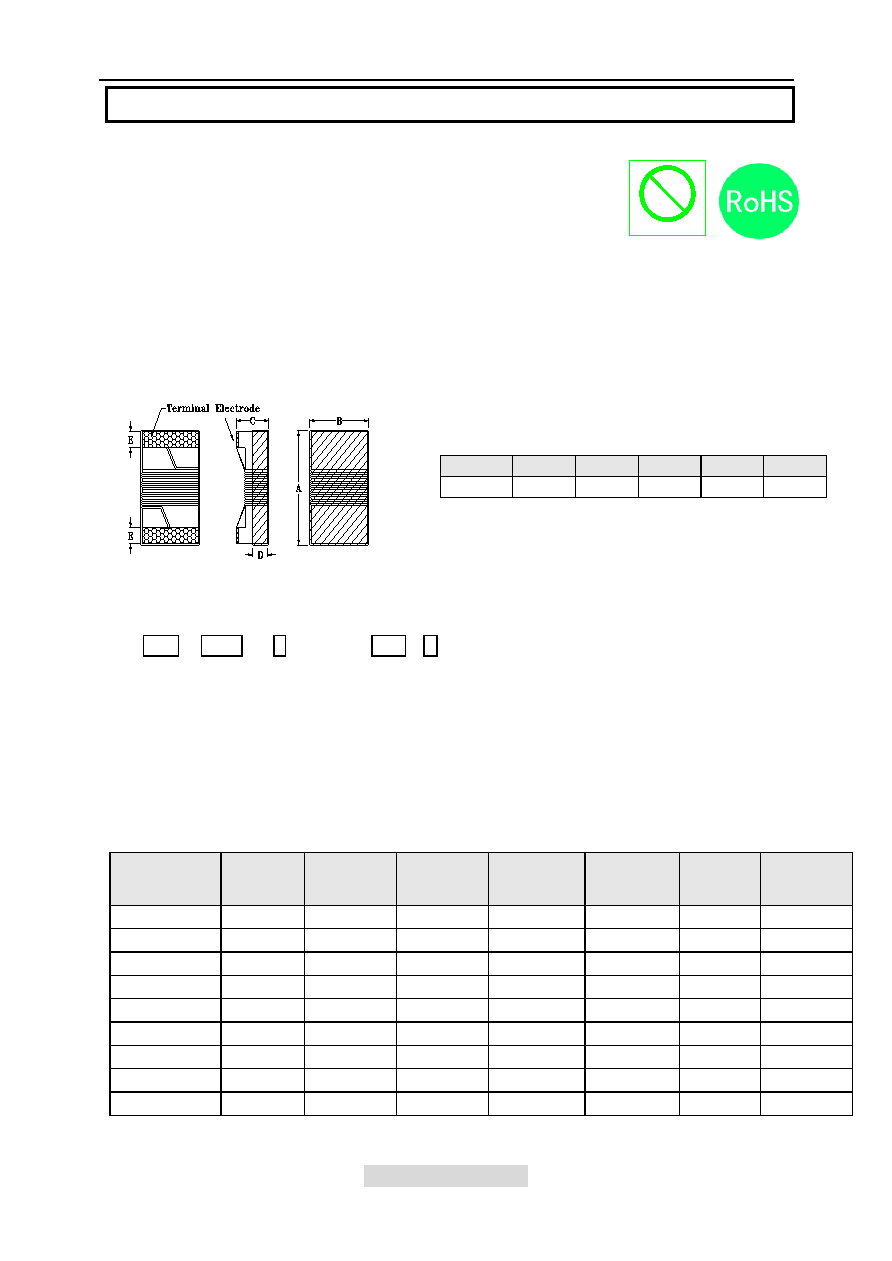

1. Features

2. Dimensions

3. Part Numbering

4. Specification

SWI

0805

F

-

2N0

S

A

B

C

D

E

A: Series

B: Dimension

LxW

C: Lead free type

D: Inductance

2N0=2.0nH

E: Inductance Tolerance

C=±0.2nH , S=±0.3nH, J=±5% ,K=±10%

Part Number

Inductance

(nH)

Tolerance

Test Frequency

(Hz)

Q @ Test Freq.

min.

Rated Current

(mA) max.

DCR

(Ω) max.

SRF

(MHz) min.

SWI0805F-2N0□

2.0

C,S

0.1V/250M

70/1500

800

0.03

8000

SWI0805F-3N9□

3.9

C,S

0.1V/250M

70/1500

800

0.04

5750

SWI0805F-4N7□

4.7

C,S

0.1V/250M

70/1500

800

0.04

5750

SWI0805F-6N8□

6.8

C,J,K

0.1V/250M

70/1500

800

0.06

5500

SWI0805F-7N5□

7.5

C,J,K

0.1V/250M

70/1000

800

0.06

4500

SWI0805F-8N2□

8.2

C,J,K

0.1V/250M

70/1000

800

0.06

4700

SWI0805F-10N□

10

J,K

0.1V/250M

70/1000

600

0.08

4200

SWI0805F-12N□

12

J,K

0.1V/250M

80/1000

600

0.08

4000

SWI0805F-15N□

15

J,K

0.1V/250M

80/1000

600

0.10

3400

Size

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

SWI0805

2.40 max.

1.60 max.

1.40 max.

0.51 ref.

0.44±0.1

Unit:mm

1. Ceramic core wire wound construction.

2. No batch to batch variations in inductance

3. High Reliability due to ceramic wire wound construction.

4. High frequency application.

5. Small footprint as well as low profile.

6.100% Lead(Pb) & Halogen-Free and RoHS compliant.

7. Operating temperature-40~+125℃ (Including self - temperature rise)

High Frequency Winding Type Chip Inductor SWI0805F-SERIES
