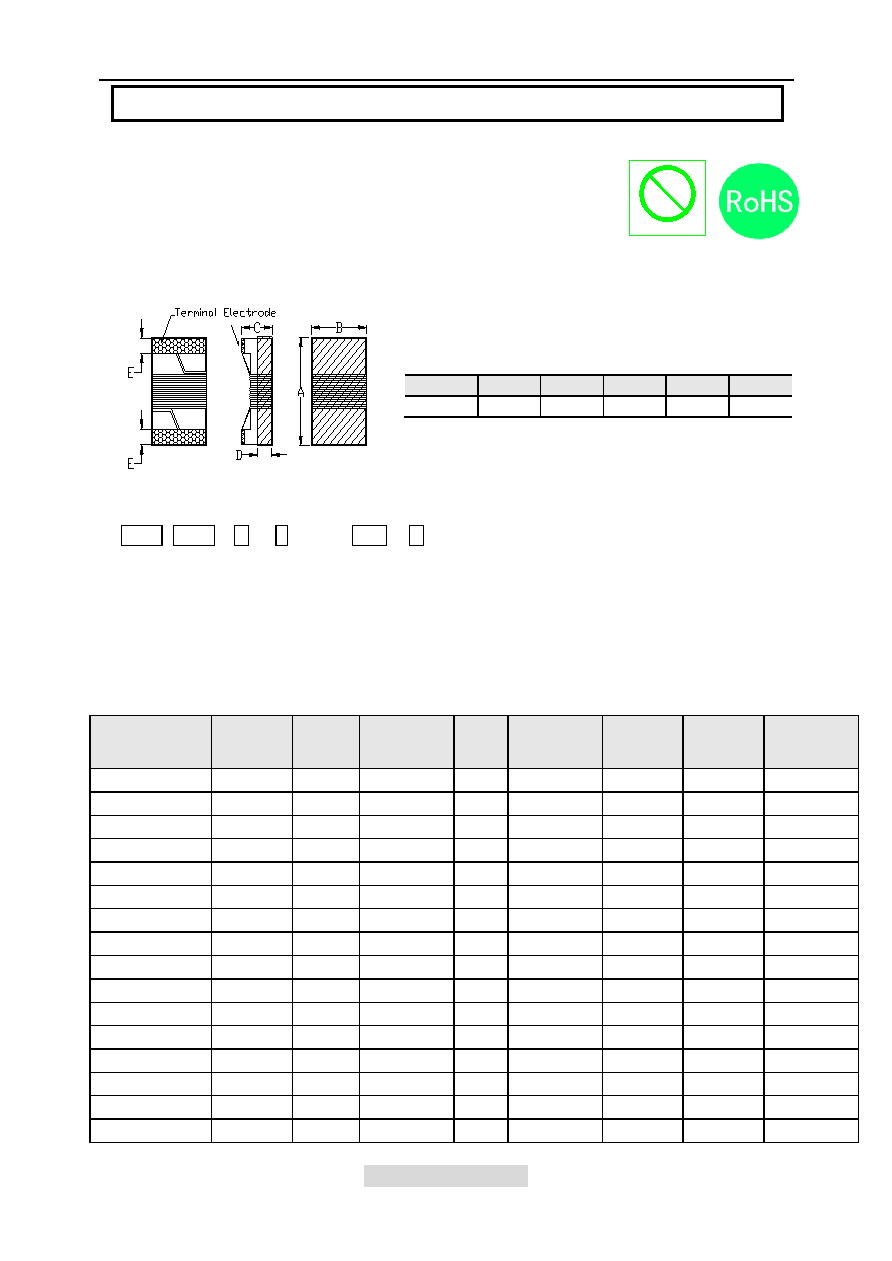

1. Features

2. Dimensions

3. Part Numbering

4. Specification

1. Ferrite core wire wound construction.

2. High Reliability due to wire wound type construction.

3. Small footprint as well as low profile.

4. Application for DC power line.

5. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

6. Operating temperature -40~+125℃ (Including self - temperature rise)

SWF 1608

C

F

-

47N

K

A

B

C

D

E

F

A: Series

B: Dimension

L x W

C: Application

DC Power Line

D: Lead free type

E: Inductance

47N=0.047 uH

F: Inductance Tolerance

K=±10%; M=±20%

Size

A

B

C

D

E

SWF1608

1.80 max.

1.20 max.

0.38 ref.

0.35±0.1

Unit:mm

Winding Type Chip Inductor

SWF1608CF-SERIES

TAI-TECH

Part Number

Inductance

(uH)

Tolerance

Test Frequency

(Hz)

Q

min.

Test Frequency

(MHz)

SRF

(MHz) min.

DCR

(Ω) max.

Rated Current

(mA) max.

SWF1608CF-47N□

0.047

K,M

0.5V/7.96M

10

7.96

1500

0.075

1400

SWF1608CF-R10□

0.10

K,M

0.5V/7.96M

10

7.96

1150

0.13

1400

SWF1608CF-R12□

0.12

K,M

0.5V/7.96M

10

7.96

1100

0.15

1400

SWF1608CF-R15□

0.15

K,M

0.5V/7.96M

10

7.96

1050

0.15

1300

SWF1608CF-R18□

0.18

K,M

0.5V/7.96M

10

7.96

950

0.15

1300

SWF1608CF-R22□

0.22

K,M

0.5V/7.96M

10

7.96

800

0.15

950

SWF1608CF-R24□

0.24

K,M

0.5V/7.96M

10

7.96

800

0.31

620

SWF1608CF-R27□

0.27

K,M

0.5V/7.96M

10

7.96

775

0.20

710

SWF1608CF-R33□

0.33

K,M

0.5V/7.96M

10

7.96

725

0.35

620

SWF1608CF-R39□

0.39

K,M

0.5V/7.96M

10

7.96

620

0.39

600

SWF1608CF-R47□

0.47

K,M

0.5V/7.96M

10

7.96

540

0.43

570

SWF1608CF-R56□

0.56

K,M

0.5V/7.96M

10

7.96

525

0.47

550

SWF1608CF-R68□

0.68

K,M

0.5V/7.96M

10

7.96

460

0.52

470

SWF1608CF-R82□

0.82

K,M

0.5V/7.96M

10

7.96

410

0.69

400

SWF1608CF-1R0□

1.0

K,M

0.5V/7.96M

10

7.96

190

0.81

400

SWF1608CF-1R2□

1.2

K,M

0.5V/7.96M

10

7.96

160

0.87

370
