CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G

Hardware

4.2.5.2

Functionality of J7 and J3 Headers (PSoC 5LP to KitProg)

The KitProg and target boards each contain a 1x5-pin header. These headers provide a physical

connection between the two devices. Specifically, the connection includes the SWD interface,

required to program/debug the target PSoC 5LP device, power, ground, and reset.

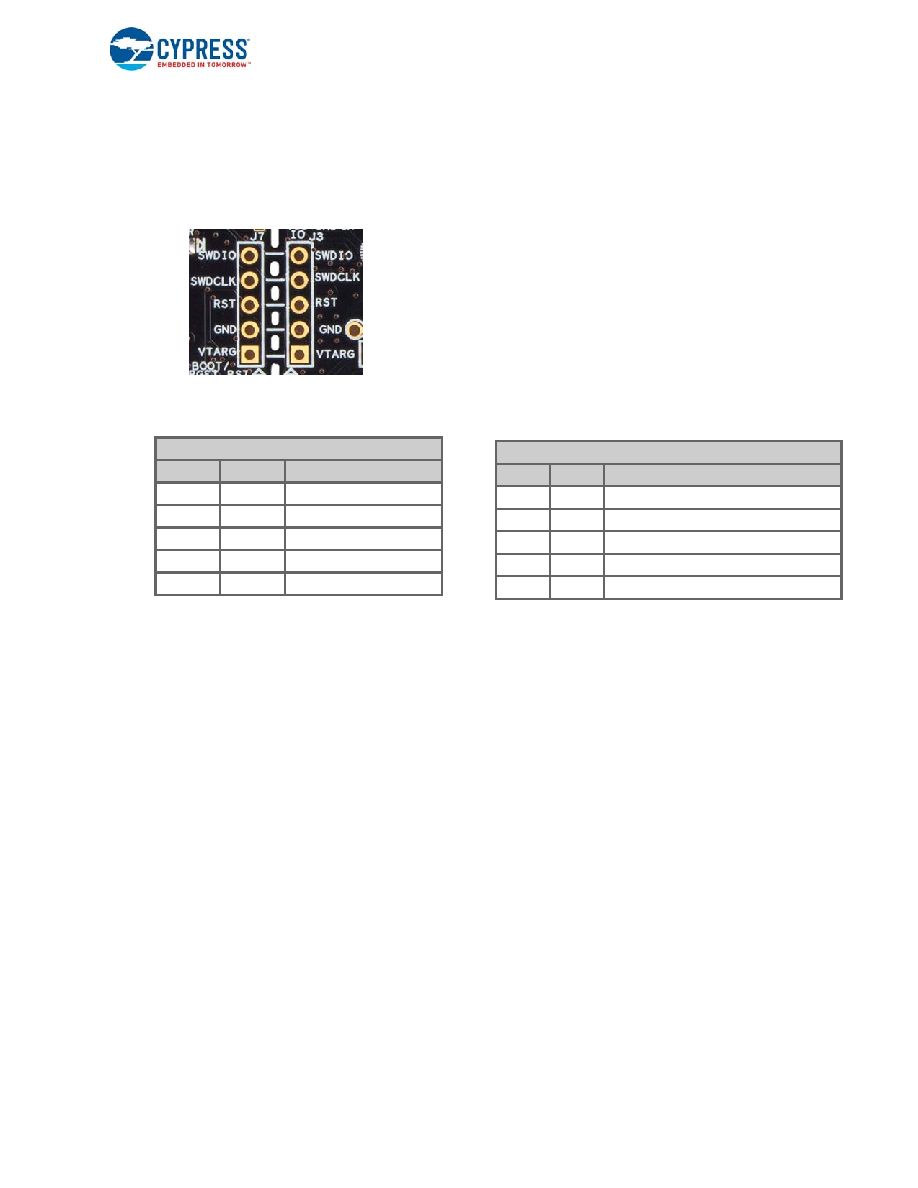

Figure 4-6. J7 and J3 Headers

When the boards are separated, the KitProg board can be used to program any other PSoC 3,

PSoC 4, or PSoC 5LP family of devices via J7.

Table 4-3. Pin Details of J7 Header

Table 4-4. Pin Details of J3 Header

PSoC 5LP to KitProg Header (J7)

Signal

Description

J7_01

VTARG

Power

J7_02

GND

Ground

J7_03

P12.4

RESET

J7_04

P12.3

SWDCLK

J7_05

P12.2

SWDIO

PSoC 5LP (Target) Program and Debug Header (J3)

Signal

Description

J3_01

VTARG Power

J3_02

GND

Ground

J3_03

XRES

RESET

J3_04

P1.1

SWDCLK

J3_05

P1.0

SWDIO
